In industrial manufacturing environments, materials are often stored on pallets. Pallets can be easily lifted and moved with a forklift, but the use of a forklift is not always practical, efficient, or safe. In these instances, a below the hook overhead crane pallet lifter attachment is the perfect material handling solution. Hoist mounted pallet lifters turn your hoist into an aerial mounted forklift. Pallet lifters allow you to safely and securely lift and handle pallets just like if you were using a forklift. Available in capacities ranging from 1500 lbs. to 30 tons, below the hook pallet lifters can fit almost any pallet lifting application.

At Tri-State Rigging Equipment we specialize in providing custom designed and fabricated overhead crane pallet lifters to fit any rigging or lifting application. We can also provide you with any standard “off the shelf” below the hook pallet lifter on the market. If you cannot find what you are looking for, or if you don’t know exactly what you need, call or email our sales team to speak with a below the hook product specialist.

Crane Pallet Lifter Designs

Pallet lifters come in a variety of designs. Some of these designs include:

• Lightweight Pallet Lifters
• Single Member Pallet Lifters
• Double Member Pallet Lifters
• Adjustable Fork Pallet Lifters
• Motorized Pallet Lifters

• Telescopic Pallet Lifters
• Combination C Hook and Pallet Lifters
• Multi-fork Pallet Lifters
• Wheeled Pallet Lifters

Engineered Product Warning

HPL - Fixed Fork Pallet Lifter

• Designed to lift and carry palletized loads efficiently with an overhead crane.
• Counter balanced to hang level when unloaded.
• Easily maintained low headroom design.
• The bail is a lower headroom design and is positioned to avoid side loading the crane hook.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
• Made in USA
• Options: Larger throat openings, Greater outside fork widths, Additional sizes and capacities available.

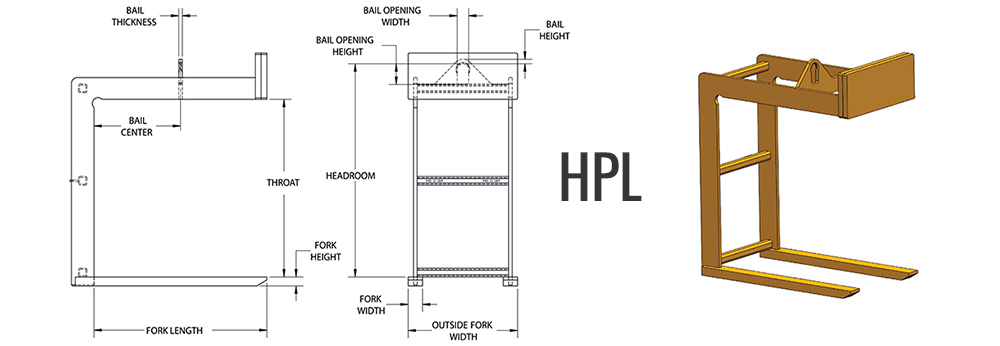

Fixed Fork Pallet Lifter Dimensions (Inches)
Model No.	Capacity	Fork Lgth.	Outside Fork Width	Throat Ht.
HPL-1-36	1-ton	36 in.	25 in.	48 in.
HPL-1-42	1-ton	42 in.	25 in.	48 in.
HPL-1-48	1-ton	48 in.	25 in.	48 in.
HPL-3-42	3-ton	42 in.	25 in.	48 in.
HPL-3-48	3-ton	48 in.	27 in.	48 in.
HPL-3-54	3-ton	54 in.	30 in.	48 in.
HPL-5-48	5-ton	48 in.	30 in.	48 in.
HPL-5-60	5-ton	60 in.	38 in.	60 in.
NOTE: Additional 2"-3" clearance is recommended above the load for ease of loading and unloading the pallet lifter.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

HPLAF - Adjustable Fork Pallet Lifter

• Designed to lift and carry palletized loads efficiently with an overhead crane.
• Supplied standard with manually adjustable forks that allow the lifter to handle various pallet sizes.
• Counter balanced to hang level when unloaded.
• Easily maintained low headroom design.
• The bail is a lower headroom design and is positioned to avoid side loading the crane hook.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
• Made in USA.
• Options: Larger throat openings, Greater outside fork widths, Additional sizes and capacities available.

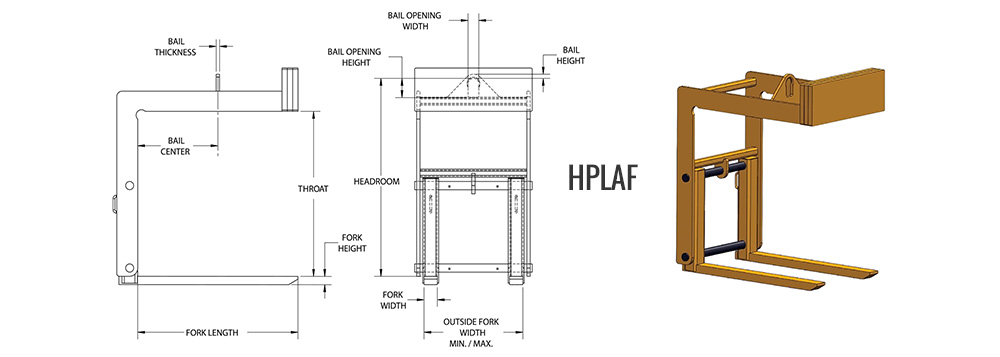

Adjustable Fork Pallet Lifter Dimensions (Inches)
Model No.	Capacity	Fork Lgth.	Outside Fork Width (min/max)	Throat Ht.
HPLAF-1-36	1-ton	36 in.	16/38 in.	48 in.
HPLAF-1-42	1-ton	42 in.	16/38 in.	48 in.
HPLAF-1-48	1-ton	48 in.	16/38 in.	48 in.
HPLAF-3-42	3-ton	42 in.	16/38 in.	48 in.
HPLAF-3-48	3-ton	48 in.	16/38 in.	48 in.
HPLAF-3-54	3-ton	54 in.	16/38 in.	48 in.
HPLAF-5-48	5-ton	48 in.	16/38 in.	48 in.
HPLAF-5-60	5-ton	60 in.	16/38 in.	60 in.
NOTE: Additional 2"-3" clearance is recommended above the load for ease of loading and unloading the pallet lifter.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

HPLWL - Wheeled Pallet Lifter

• Designed to lift and carry palletized loads efficiently with an overhead crane.
• Wheeled design allows for ease of movement to the load and dual lift points allow the lifter to hang level when unloaded.
• Easily maintained low headroom design.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
• Made in USA.
• Options: Larger throat openings, Greater outside fork widths, Additional sizes and capacities available, Replacement wheel kits are available.

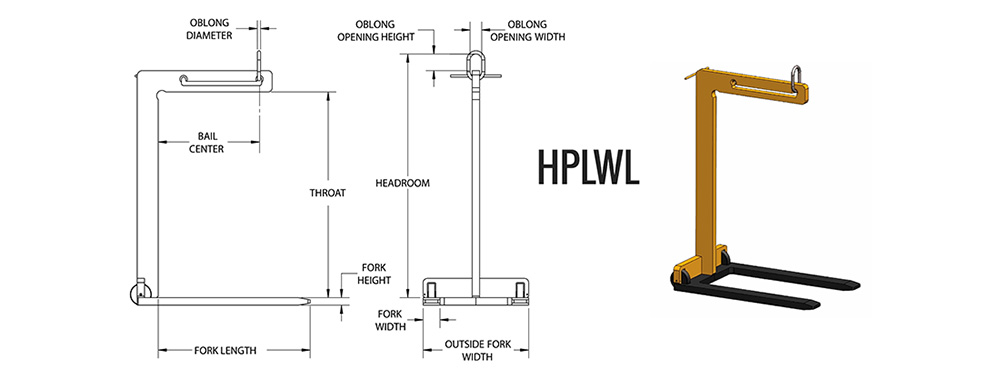

Wheeled Pallet Lifter Dimensions (Inches)
Model No.	Capacity	Fork Lgth.	Outside Fork Width	Throat Ht.
HPLWL-1-48	1-ton	36 in.	25 in.	48 in.
HPLWL-2-48	2-ton	36 in.	25 in.	48 in.
NOTE: Additional 2"-3" clearance is recommended above the load for ease of loading and unloading the pallet lifter.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

HPLLW - Lightweight Pallet Lifter

• Designed to lift and carry palletized loads efficiently with an overhead crane.
• Lightweight design allows for ease of movement to the load and dual lift points allow the lifter to hang level when unloaded.
• Easily maintained low headroom design.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
• Made in USA.
• Options: Larger throat openings, Greater outside fork widths, Additional sizes and capacities available.

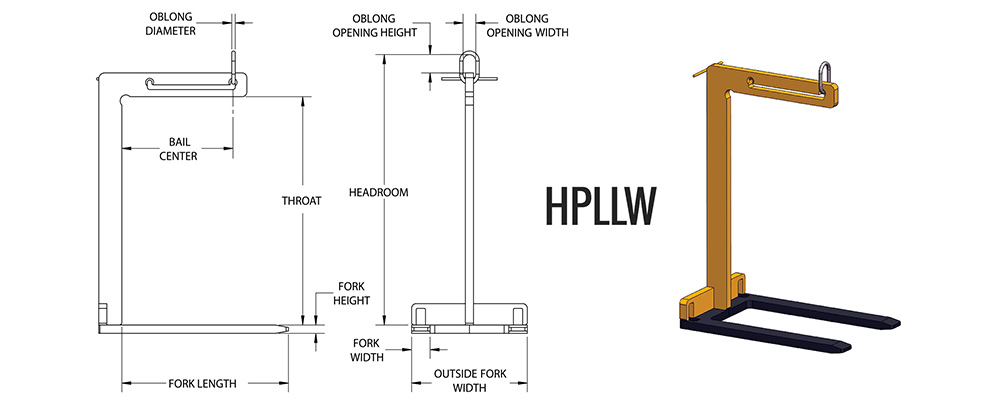

Lightweight Pallet Lifter Dimensions (Inches)
Model No.	Capacity	Fork Lgth.	Outside Fork Width	Throat Ht.
HPLLW-1-48	1-ton	36 in.	25 in.	48 in.
HPLLW-2-48	2-ton	36 in.	25 in.	48 in.
HPLLW-3-48	3-ton	36 in.	27 in.	48 in.
NOTE: Additional 2"-3" clearance is recommended above the load for ease of loading and unloading the pallet lifter.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

Documents, Drawings, and Manuals

Tri-State Rigging Equipment is a custom designer, manufacturer, service provider and distributor for all below the hook lifting devices, including overhead crane pallet lifters, serving clients from coast to coast, Canada, Mexico, and especially focused in the states of Missouri, Illinois, Indiana, Iowa, Kansas, Nebraska, Arkansas, Mississippi, Tennessee, Kentucky, South Carolina, Florida, and Oklahoma.
