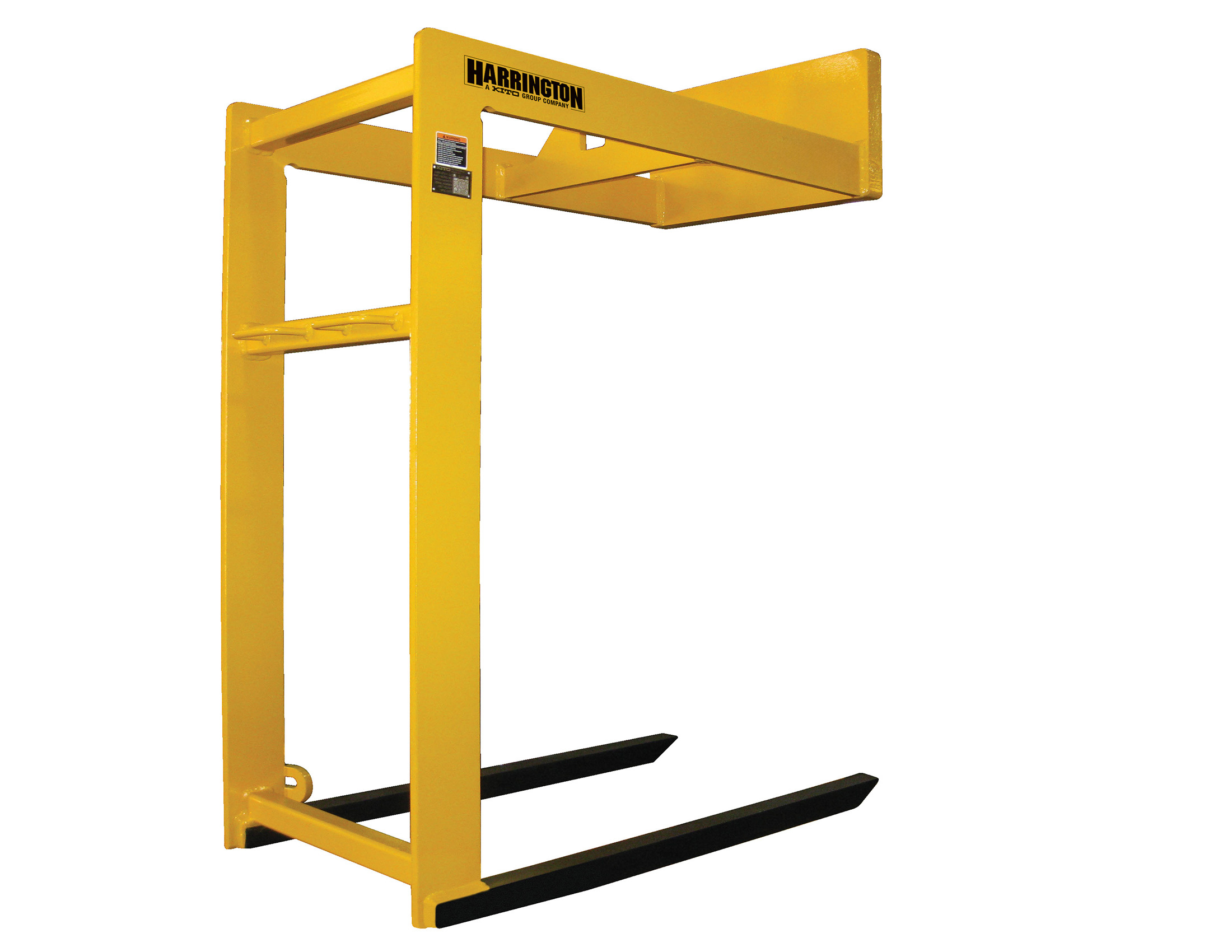

Harrington Fixed Fork Pallet Lifter, 1 Ton Capacity, 36 in. Fork Length, HPL-1-36

The Harrington HPL Fixed Fork Pallet Lifter can easily mount to a hoist and is a durable option for lifting palletized loads in industrial applications.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HPL-1-36

Manufacturer part number: HPL-1-36

Lead Time (subject to change, call to verify): typically ships in 25-30 business days

Fork Length *

36 in. / 914.4 mm

Outside Fork Width *

25 in. / 635 mm

Options (Call for Quote - 314-869-7200)

Larger throat opening
Greater outside fork widths
Additional sizes
Higher capacities

$5,514.98

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Hoist Mounted Pallet Lifters Brochure

Product Specifications

Attribute name	Attribute value

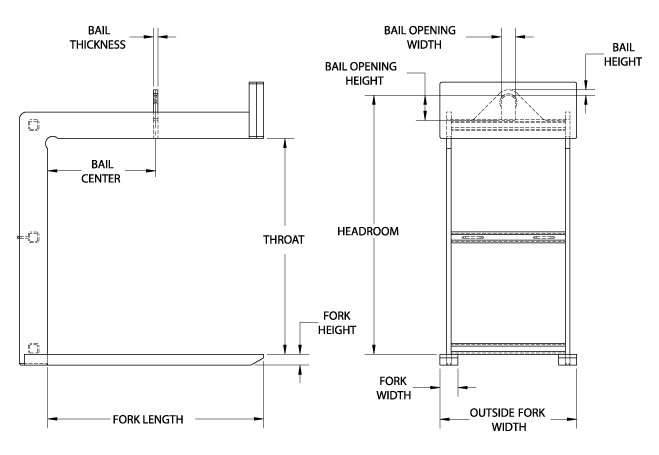

Features	Model Number: HPL-1-36 Capacity: 1 Ton / 907.18 kg Fork Dimensions Fork Length: 36 in. / 914.4 mm Fork Width: 2 in. / 50.8 mm Fork Height: 2 in. / 50.8 mm Outside Fork Width: 25 in. / 635 mm Headroom Dimensions Throat Opening Height: 48 in. / 1219.2 mm Max. Headroom: 57.5 in. / 1460.5 mm Bail Dimensions Bail Center: 18 in. / 457.2 mm Bail Height: 0.88 in. / 22.35 mm Bail Opening Width: 3 in. / 76.2 mm Bail Opening Height: 5 in. / 127 mm Bail Thickness: 0.75 in. / 19.05 mm Weight: 425 lbs. / 192.78 kg Designed to lift and carry palletized loads efficiently with an overhead crane. Counter balanced to hang level when unloaded. Easily maintained low headroom design. The bail is a lower headroom design and is positioned to avoid side loading the crane hook. NOTE: Additional 2"-3" clearance is recommended above the load for ease of loading and unloading the pallet lifter. Options: Larger throat openings, Greater outside fork widths, Additional sizes and capacities available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
