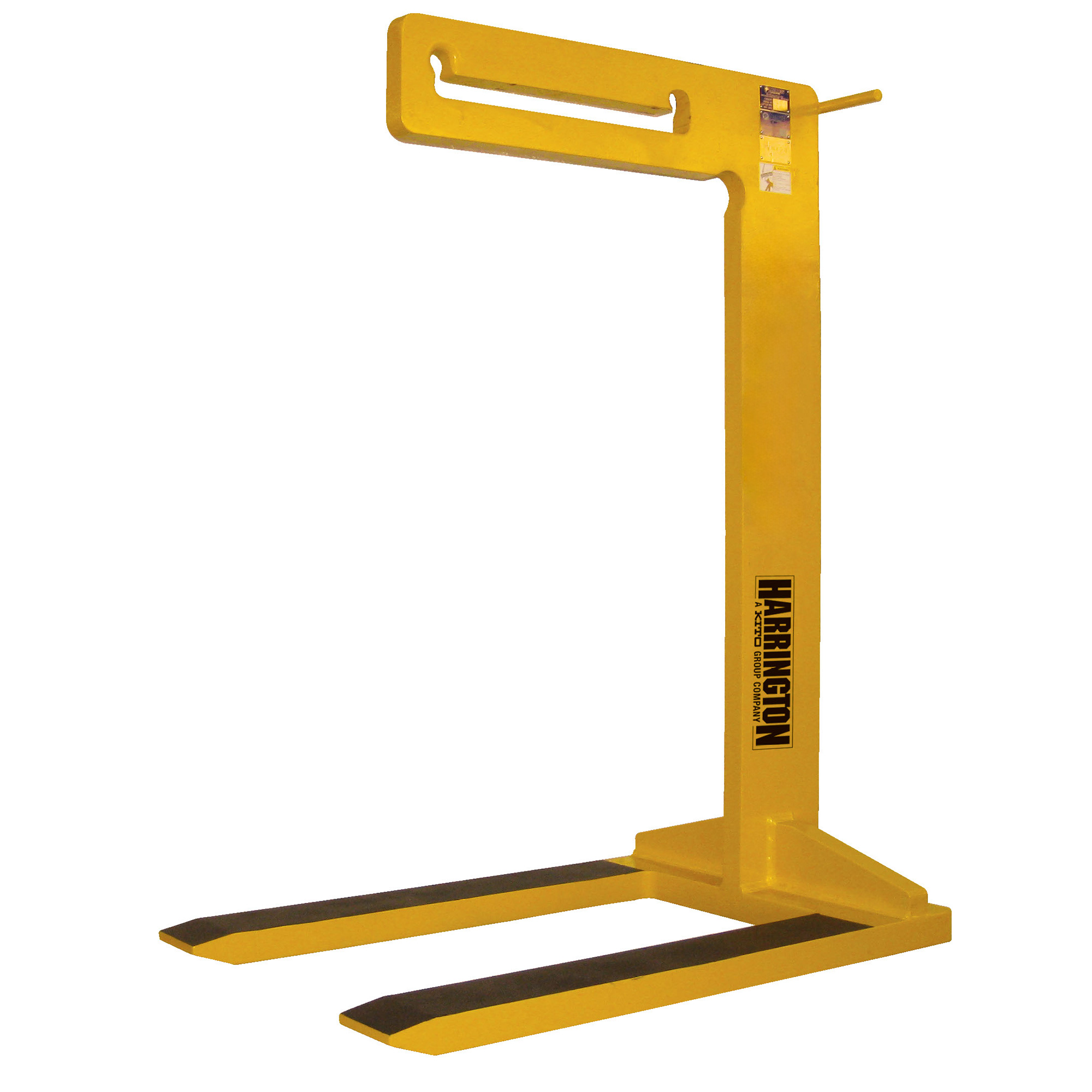

Harrington Lightweight Pallet Lifter, 1 Ton Capacity, 36 in. Fork Length, HPLLW-1-48

The Harrington HPLLW Lightweight Pallet Lifter is designed for efficient movement and handling of palletized loads. Its lightweight construction makes it easy to position for use, and the dual lift points ensure it hangs level when not in operation.
Availability: In stock
SKU: HPLLW-1-48
Manufacturer part number: HPLLW-1-48
Lead Time (subject to change, call to verify): typically ships in 20-25 business days
*
*
$4,256.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Model Number: HPLLW-1-48
  • Capacity: 1 Ton / 907.185 kg

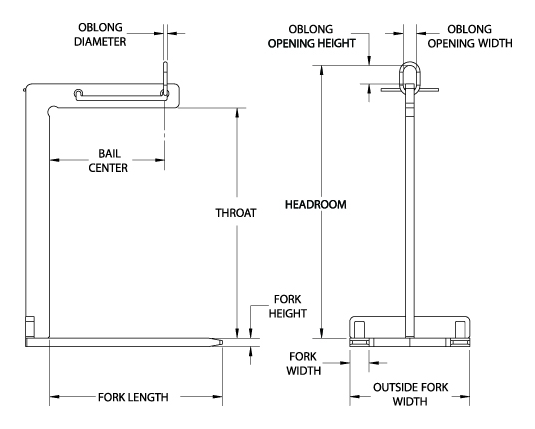

  • Fork Dimensions
    • Fork Length: 36 in. / 914.4 mm
    • Fork Width: 2 in. / 50.8 mm
    • Fork Height: 1.75 in. / 44.45 mm
    • Outside Fork Width: 25 in. / 635 mm
  • Headroom Dimensions
    • Throat Opening Height: 48 in. / 1219.2 mm
    • Max. Headroom: 53 in. / 1346.2 mm
  • Oblong Master Link Dimensions
    • Oblong ML Diameter: .63 in. / 16.002 mm
    • Oblong ML Opening Width: 3 in. / 76.2 mm
    • Oblong ML Opening Height: 6 in. / 152.4 mm
  • Bail Center: 24 in. / 609.6 mm
  • Weight: 245 lbs. / 111.13 kg
  • Designed to lift and carry palletized loads efficiently with an overhead crane.
  • Lightweight design allows for ease of movement to the load and dual lift points allow the lifter to hang level when unloaded.
  • Easily maintained low headroom design.
  • NOTE: Additional 2"-3" clearance is recommended above the load for ease of loading and unloading the pallet lifter.
  • Options: Larger throat openings, Greater outside fork widths, Additional sizes and capacities available.
Standards/Approvals
  • ASME B30.20 & ASME BTH-1 Design Category B Service Class 2
  • Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of OriginMade in the USA
