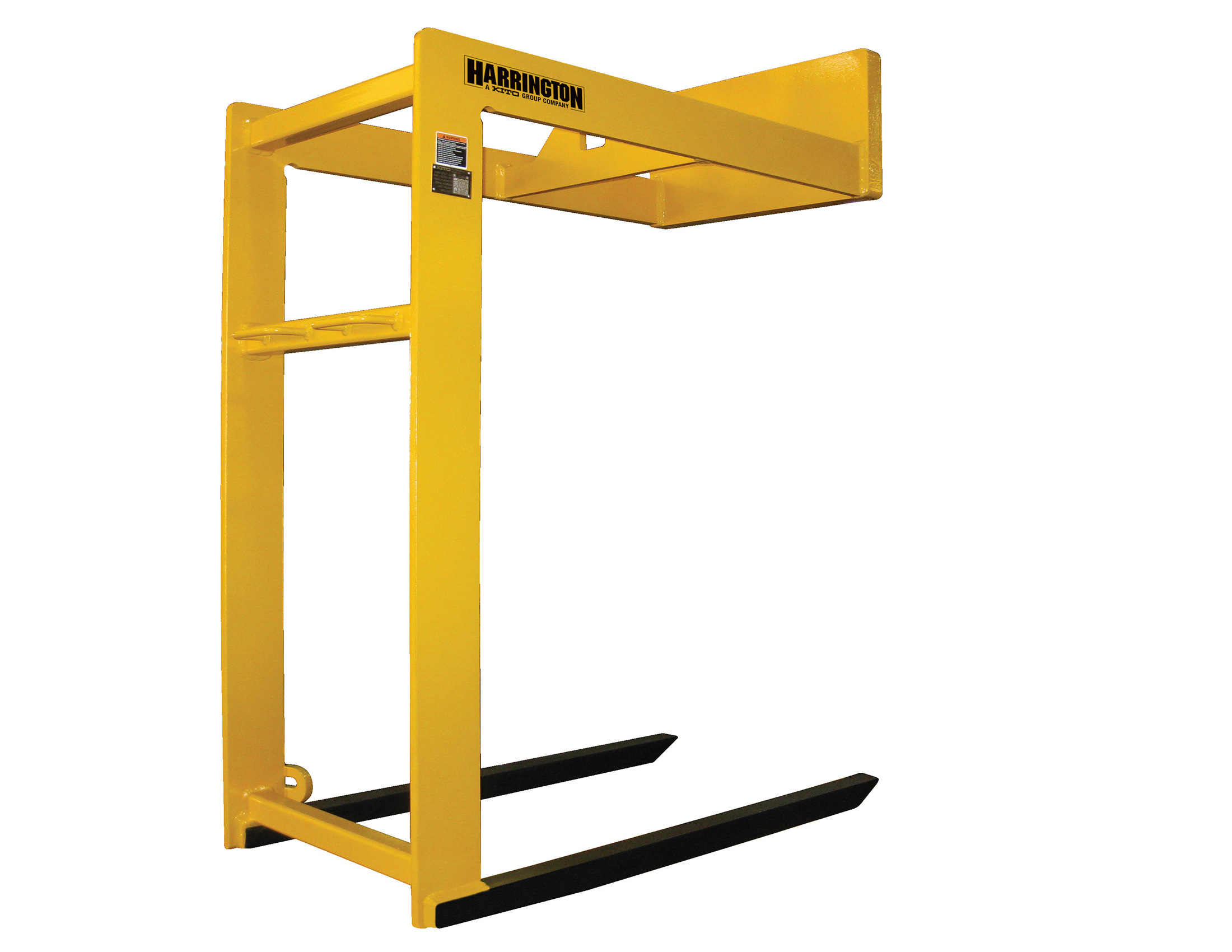

Harrington Fixed Fork Pallet Lifter, 3 Ton Capacity, 42 in. Fork Length, HPL-3-42

The Harrington HPL Fixed Fork Pallet Lifter can easily mount to a hoist and is a durable option for lifting palletized loads in industrial applications.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HPL-3-42

Manufacturer part number: HPL-3-42

Lead Time (subject to change, call to verify): typically ships in 25-30 business days

Fork Length *

42 in. / 1066.8 mm

Outside Fork Width *

25 in. / 635 mm

Options (Call for Quote - 314-869-7200)

Larger throat opening
Greater outside fork widths
Additional sizes
Higher capacities

$7,640.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Hoist Mounted Pallet Lifters Brochure

Product Specifications

Attribute name	Attribute value

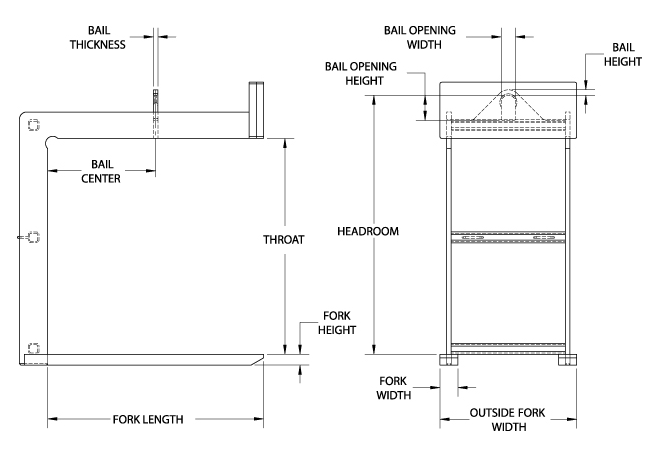

Features	Model Number: HPL-3-42 Capacity: 3 Ton / 2721 kg Fork Dimensions Fork Length: 42 in. / 1066.8 mm Fork Width: 4.5 in. / 114.3 mm Fork Height: 2.5 in. / 63.5 mm Outside Fork Width: 25 in. / 635 mm Headroom Dimensions Throat Opening Height: 48 in. / 1219.2 mm Max. Headroom: 61.5 in. / 1562.1 mm Bail Dimensions Bail Center: 21 in. / 533.4 mm Bail Height: 1.25 in. / 31.75 mm Bail Opening Width: 3 in. / 76.2 mm Bail Opening Height: 5 in. / 127 mm Bail Thickness: 1 in. / 25.4 mm Weight: 1110 lbs. / 503.49 kg Designed to lift and carry palletized loads efficiently with an overhead crane. Counter balanced to hang level when unloaded. Easily maintained low headroom design. The bail is a lower headroom design and is positioned to avoid side loading the crane hook. NOTE: Additional 2"-3" clearance is recommended above the load for ease of loading and unloading the pallet lifter. Options: Larger throat openings, Greater outside fork widths, Additional sizes and capacities available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
