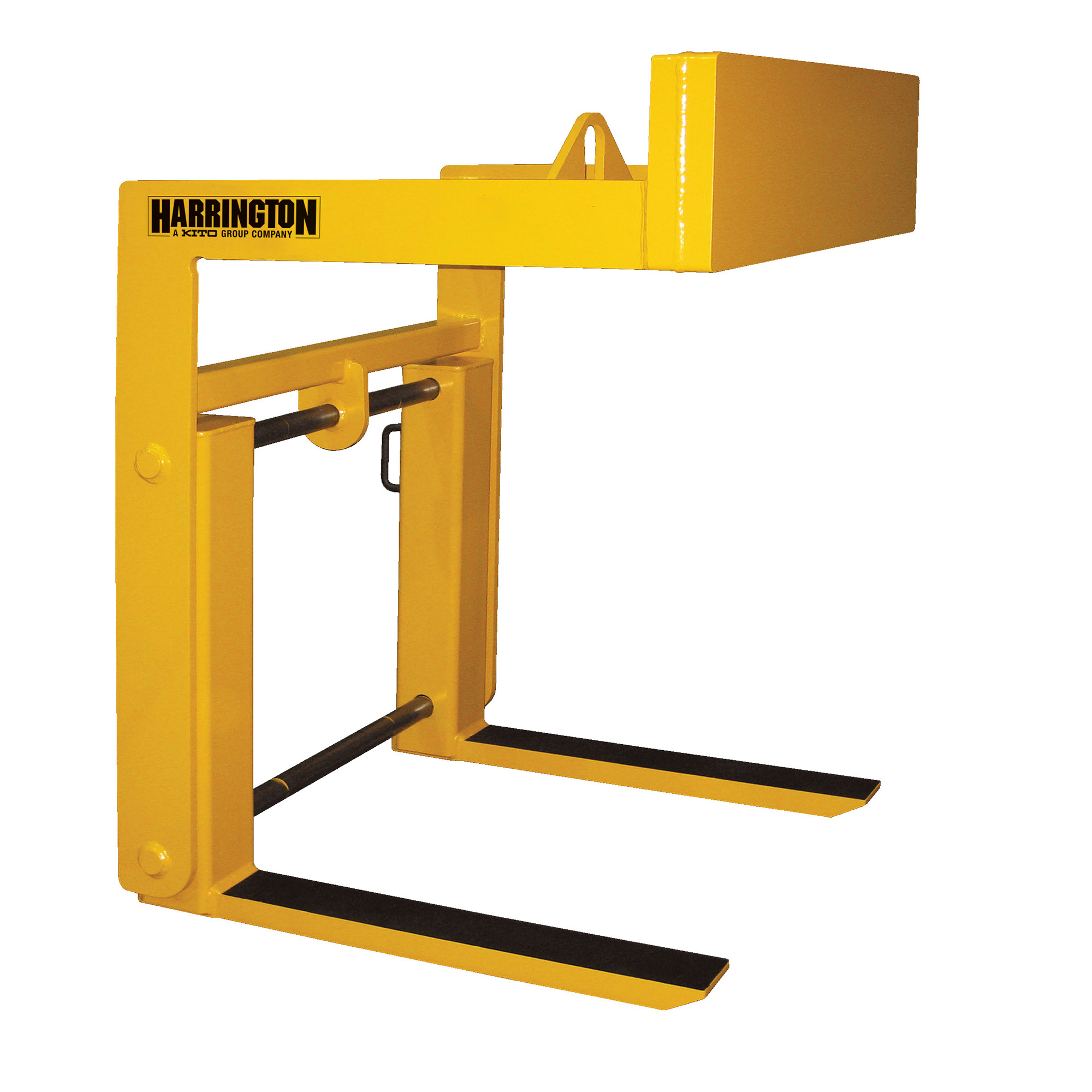

Harrington Adjustable Fork Pallet Lifter, 5 Ton Capacity, 48 in. Fork Length, HPLAF-5-48

The Harrington HPLAF Adjustable Fork Pallet Lifter features an adjustable fork design that allows the lifter to handle different sizes of pallets.
Availability: In stock
SKU: HPLAF-5-48
Manufacturer part number: HPLAF-5-48
Lead Time (subject to change, call to verify): typically ships in 30-35 business days
*
*
$25,197.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Model Number: HPLAF-5-48
  • Capacity: 5 Ton / 4.536 kg

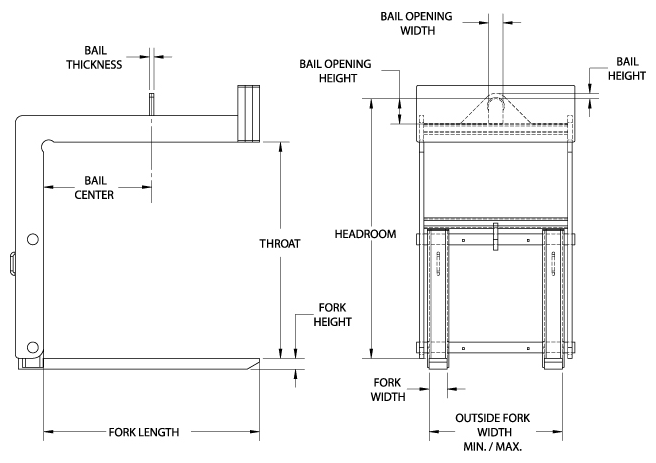

  • Fork Dimensions
    • Fork Length: 48 in. / 1219 mm
    • Fork Width: 5 in. / 127 mm
    • Fork Height: 3 in. / 76.2 mm
    • Outside Fork Width (min.): 16 in. / 406.4 mm
    • Outside Fork Width (max.): 38 in. / 965.2 mm
  • Headroom Dimensions
    • Throat Opening Height: 48 in. / 1219.2 mm
    • Max. Headroom: 65 in. / 1651 mm
  • Bail Dimensions
    • Bail Center: 24 in. / 609.6 mm
    • Bail Height: 1.5 in. / 38.1 mm
    • Bail Opening Width: 4 in. / 101.6 mm
    • Bail Opening Height: 7 in. / 177.8 mm
    • Bail Thickness: 1.25 in. / 31.75 mm
  • Weight: 2520 lbs. / 1143.263 kg
  • Designed to lift and carry palletized loads efficiently with an overhead crane.
  • Supplied standard with manually adjustable forks that allow the lifter to handle various pallet sizes.
  • Counter balanced to hang level when unloaded.
  • Easily maintained low headroom design.
  • The bail is a lower headroom design and is positioned to avoid side loading the crane hook.
  • NOTE: Additional 2"-3" clearance is recommended above the load for ease of loading and unloading the pallet lifter.
  • Options: Larger throat openings, Greater outside fork widths, Additional sizes and capacities available.
Standards/Approvals
  • ASME B30.20 & ASME BTH-1 Design Category B Service Class 2
  • Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of OriginMade in the USA
