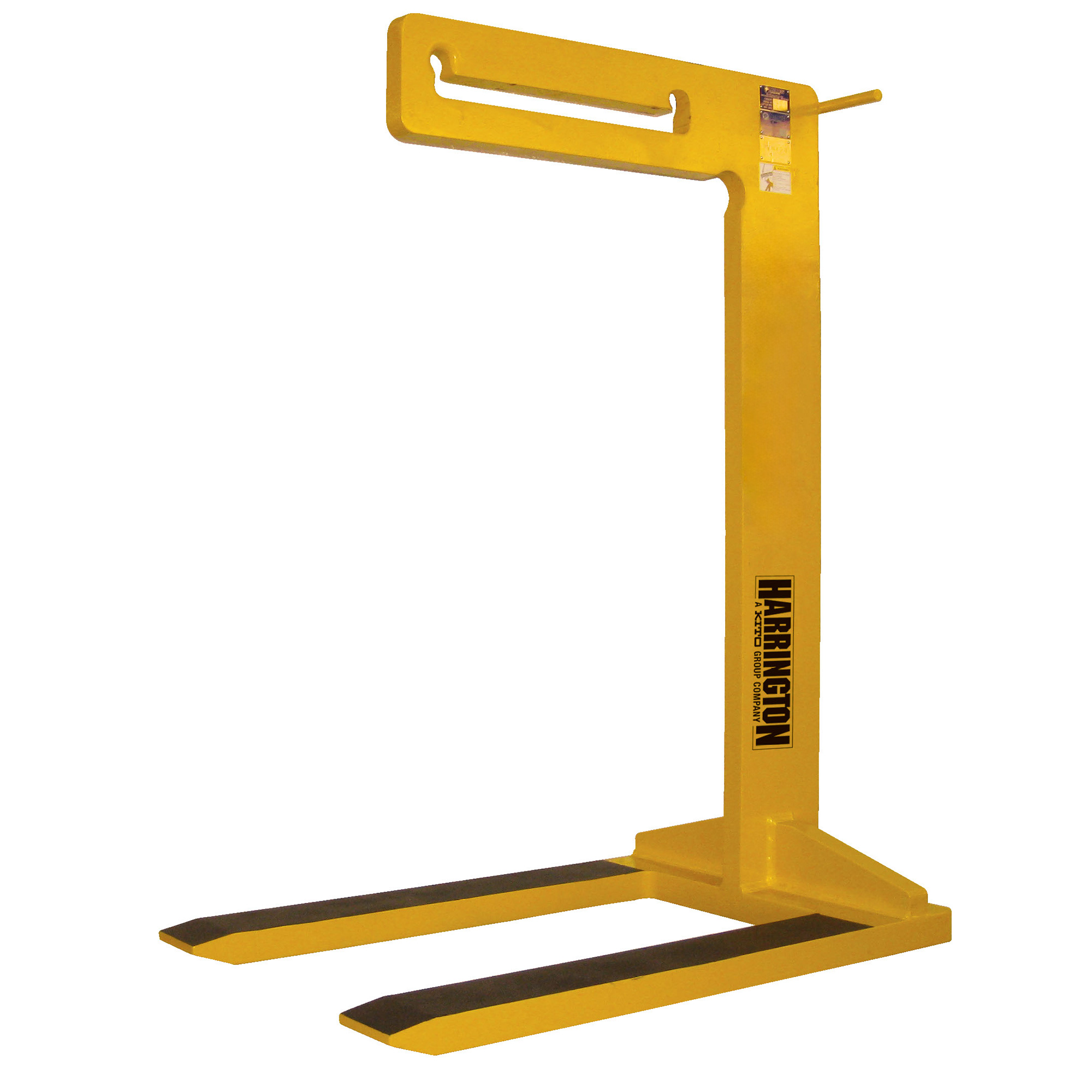

Harrington Lightweight Pallet Lifter, 3 Ton Capacity, 36 in. Fork Length, HPLLW-3-48

The Harrington HPLLW Lightweight Pallet Lifter is designed for efficient movement and handling of palletized loads. Its lightweight construction makes it easy to position for use, and the dual lift points ensure it hangs level when not in operation.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HPLLW-3-48

Manufacturer part number: HPLLW-3-48

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Fork Length *

36 in. / 914.4 mm

Outside Fork Width *

27 in. / 685.8 mm

Options (Call for Quote - 314-869-7200)

Larger throat opening
Greater outside fork widths
Additional sizes
Higher capacities

$7,117.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Hoist Mounted Pallet Lifters Brochure

Product Specifications

Attribute name	Attribute value

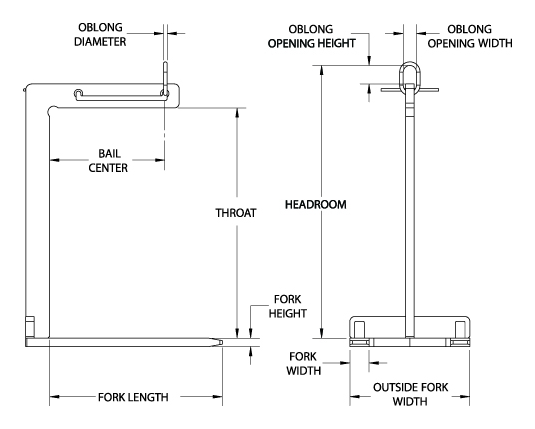

Features	Model Number: HPLLW-3-48 Capacity: 3 Ton / 2721.56 kg Fork Dimensions Fork Length: 36 in. / 914.4 mm Fork Width: 5 in. / 127 mm Fork Height: 2 in. / 50.8 mm Outside Fork Width: 27 in. / 685.8 mm Headroom Dimensions Throat Opening Height: 48 in. / 1219.2 mm Max. Headroom: 62 in. / 1574.8 mm Oblong Master Link Dimensions Oblong ML Diameter: 1 in. / 25.4 mm Oblong ML Opening Width: 3.5 in. / 88.9 mm Oblong ML Opening Height: 7 in. / 177.8 mm Bail Center: 24 in. / 609.6 mm Weight: 625 lbs. / 283.5 kg Designed to lift and carry palletized loads efficiently with an overhead crane. Lightweight design allows for ease of movement to the load and dual lift points allow the lifter to hang level when unloaded. Easily maintained low headroom design. NOTE: Additional 2"-3" clearance is recommended above the load for ease of loading and unloading the pallet lifter. Options: Larger throat openings, Greater outside fork widths, Additional sizes and capacities available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
