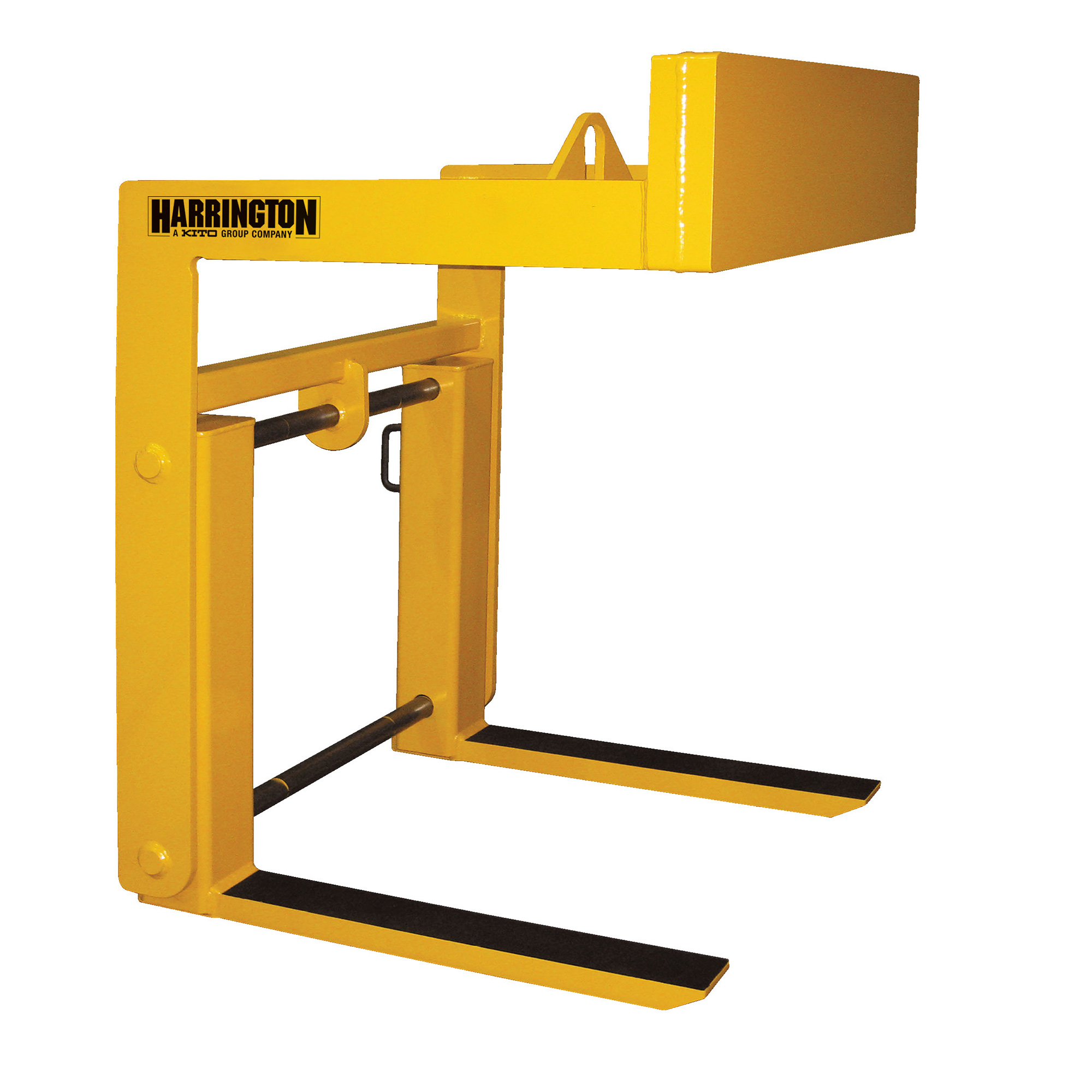

Harrington Adjustable Fork Pallet Lifter, 3 Ton Capacity, 54 in. Fork Length, HPLAF-3-54

The Harrington HPLAF Adjustable Fork Pallet Lifter features an adjustable fork design that allows the lifter to handle different sizes of pallets.

Availability: In stock

SKU: HPLAF-3-54

Manufacturer part number: HPLAF-3-54

Lead Time (subject to change, call to verify): typically ships in 30-35 business days

Fork Length *

Outside Fork Width *

Options (Call for Quote - 314-869-7200)

$22,346.16

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Hoist Mounted Pallet Lifters Brochure

Product Specifications

Attribute name	Attribute value

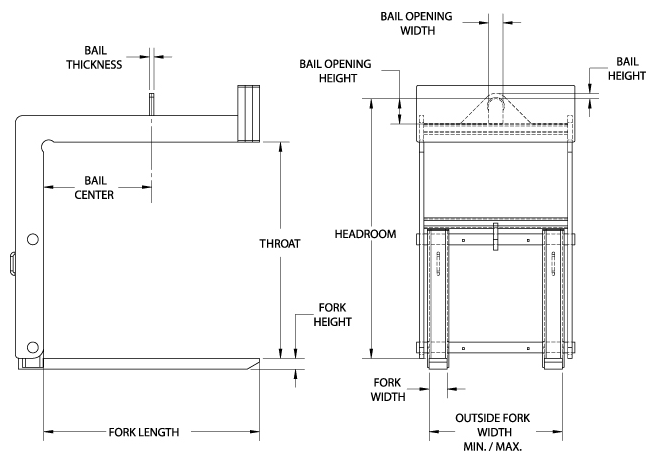

Features	Model Number: HPLAF-3-54 Capacity: 3 Ton / 2.722 kg Fork Dimensions Fork Length: 54 in. / 1371.6 mm Fork Width: 4.5 in. / 114.3 mm Fork Height: 2.5 in. / 63.5 mm Outside Fork Width (min.): 16 in. / 406.4 mm Outside Fork Width (max.): 38 in. / 965.2 mm Headroom Dimensions Throat Opening Height: 48 in. / 1219.2 mm Max. Headroom: 63 in. / 1600.2 mm Bail Dimensions Bail Center: 27 in. / 685.8 mm Bail Height: 1.25 in. / 31.75 mm Bail Opening Width: 3 in. / 76.2 mm Bail Opening Height: 5 in. / 127 mm Bail Thickness: 1 in. / 25.4 mm Weight: 2700 lbs. / 1224.699 kg Designed to lift and carry palletized loads efficiently with an overhead crane. Supplied standard with manually adjustable forks that allow the lifter to handle various pallet sizes. Counter balanced to hang level when unloaded. Easily maintained low headroom design. The bail is a lower headroom design and is positioned to avoid side loading the crane hook. NOTE: Additional 2"-3" clearance is recommended above the load for ease of loading and unloading the pallet lifter. Options: Larger throat openings, Greater outside fork widths, Additional sizes and capacities available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
