Forklift lifting attachments and accessories are the perfect material handling solution for environments where an overhead crane is not available, an overhead crane cannot access a certain area, or where the use of an overhead crane is impractical or unsafe. Forklift lifting attachments allow you to convert a forklift into a single hook crane, a single or double hook forklift beam, or a forklift jib crane. In addition to lifting inanimate loads, forklifts can be equipped with a Porta-Platform that converts a forklift into a man lift.

Forklift jibs, booms, hooks, and beams are extremely popular in industrial manufacturing because everyone already has a forklift to which they can attach forklift accessories. These lifting attachments require less work and less money to design, manufacture and install than modifying an existing crane or installing a brand new one. They allow employers to operate the equipment they already have at maximum efficiency. Forklift boom, jib, hook, and beam attachments also increase worker safety by allowing fork trucks to securely lift loads that would otherwise be difficult for a fork truck to safely lift.

Here at Tri-State Rigging Equipment, we specialize in providing custom designed and fabricated forklift lifting attachments and accessories. In addition, we can provide you with any standard “off the shelf” forklift attachment. If you are unable to find what you are looking for, or if you don’t know exactly what you need, call or email our sales team to speak with a rigging product specialist.

Forklift Attachment Designs

Forklift lifting attachments come in a variety of capacities and designs that allow forklifts to be used in a multitude of lifting applications. Some of these designs include:

• Telescoping Fork Booms
• Pivoting Telescoping Fork Booms
• Reach Over Booms
• Carriage Jib Booms
• Drum Lifters/Rotators
• Drum Lifters/Dumpers

• Porta-Platforms
• Steel Drum Grippers
• Forklift Hooks
• Single Hook Beams
• Double Hook Beams

It is important to note that the rated capacity of all these fork truck lifting attachments will depend on the rated capacity of the fork truck itself. Trying to lift a load heavier than the rated capacity of the forklift will result in a tipped over and most likely severely damaged forklift. This means that the end user must contact the manufacturer of their specific forklift to determine the proper rated capacity.

Engineered Product Warning

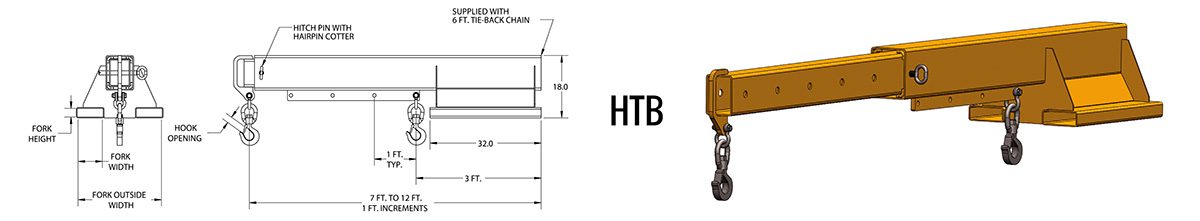

HTB - Telescoping Fork Truck Boom

• This style of fork truck attachment is designed to efficiently lift and carry loads with a telescoping boom with locking pin allowing for multiple hook positions.
• 12 foot maximum boom reach and supplied with a pair of standard swivel or fixed hooks.
• Standard restraining chain with grab hook and attached handle for ease of boom extension.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• 100% of ALL Harrington Lifting Beams are proof-tested to 125% capacity and certificates supplied at no additional charge.
• Made in USA.
• Options: Additional sizes and capacities available.

Telescoping Fork Truck Boom
Model No.	Fork Opening (H x W)	Fork Outside Width	Capacity Range at Hook Position (3-12 ft.)	Wt.
HTB-30	2.5 x 7 in.	22 in.	3,000 to 1,500 lbs.	490 lbs.
HTB-40	2.5 x 7 in.	22 in.	4,000 to 1,500 lbs.	490 lbs.
HTB-60	2.5 x 7 in.	22 in.	6,000 to 2,500 lbs.	565 lbs.
HTB-80	2.5 x 7 in.	22 in.	8,000 to 3,100 lbs.	750 lbs.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

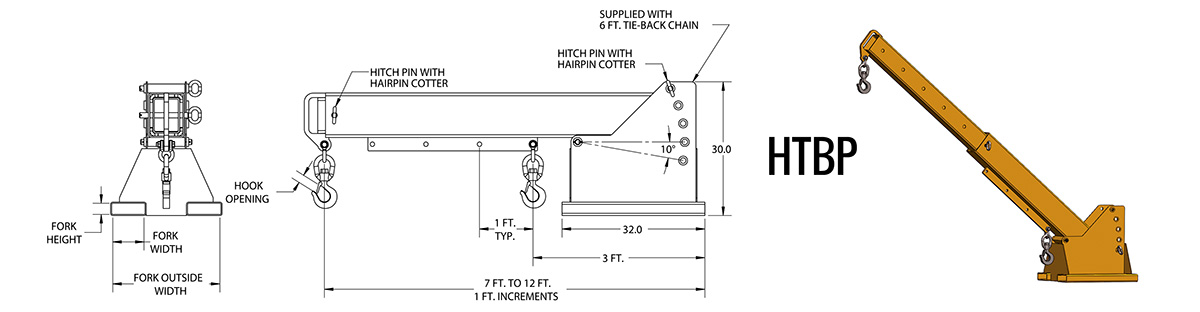

HTBP - Telescoping Pivot Fork Truck Boom

• This style of fork truck attachment is designed to efficiently lift and carry loads with a telescoping pivot boom with locking pin allowing for multiple hook positions.
• Supplied with standard restraining chain with grab hook and attached handle for ease of boom extension.
• 12 foot maximum boom reach supplied with standard swivel hooks and can pivot to a vertical height of 6 foot 4 inches.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• 100% of ALL Harrington Lifting Beams are proof-tested to 125% capacity and certificates supplied at no additional charge.
• Made in USA.
• Options: Additional sizes and capacities available.

Telescoping Pivot Fork Truck Boom
Model No.	Fork Opening (H x W)	Fork Outside Width	Capacity Range at Hook Position (3-12 ft.)	Wt.
HTBP-30	2.5 x 7 in.	22.5 in.	3,000 to 1,500 lbs.	565 lbs.
HTBP-40	2.5 x 7 in.	22.5 in.	4,000 to 1,500 lbs.	565 lbs.
HTBP-60	2.5 x 7 in.	22.5 in.	6,000 to 2,500 lbs.	680 lbs.
HTBP-80	2.5 x 7 in.	22.5 in.	8,000 to 3,100 lbs.	870 lbs.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

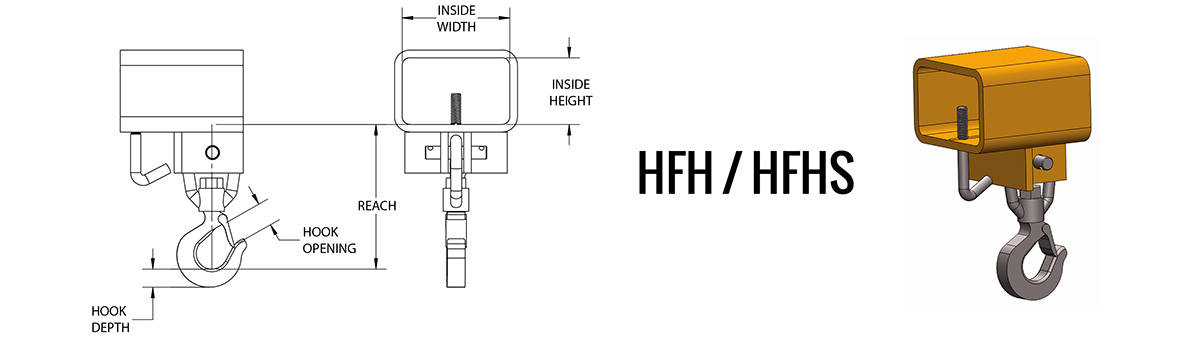

HFH / HFHS - Fork Truck Hook

• This style of fork truck attachment is designed to efficiently lift and carry loads on the fork of a lift truck with a single latched swivel hook.
• Easily attaches to the forks.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• 100% of ALL Harrington Lifting Beams are proof-tested to 125% capacity and certificates supplied at no additional charge.
• Made in USA.
• Options: Additional sizes and capacities available.

Fork Truck Hook - Fixed
Model No.	Capacity	Inside Beam (W x H)	Wt.
HFH-1.5-4.5	1.5-tons	5.25 x 3.25 in.	17 lbs.
HFH-1.5-5.5	1.5-tons	6 x 3 in.	22 lbs.
HFH-1.5-6.5	1.5-tons	7 x 3 in.	24 lbs.
Fork Truck Hook - Swivel
HFHS-1.5-4.5	1.5-tons	5.25 x 3.25 in.	17 lbs.
HFHS-1.5-5.5	1.5-tons	6 x 3 in.	22 lbs.
HFHS-1.5-6.5	1.5-tons	7 x 3 in.	24 lbs.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

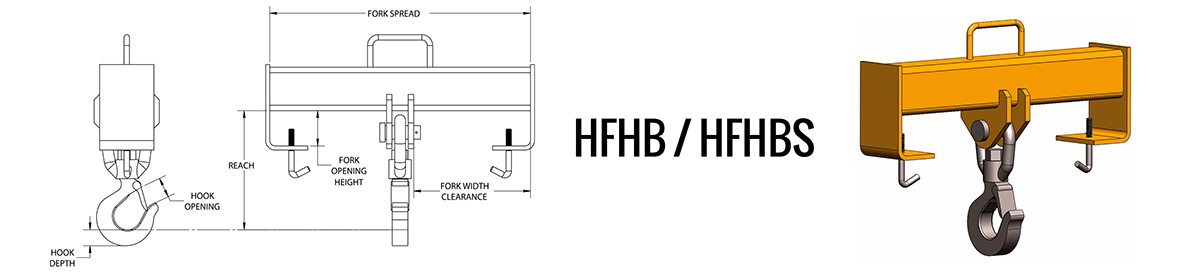

HFHB / HFHBS - Fork Truck Hook Beam

• This style of fork truck attachment is designed to efficiently lift and carry loads on both forks of a lift truck with a single latched swivel hook.
• Easily attaches to the forks.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• 100% of ALL Harrington Lifting Beams are proof-tested to 125% capacity and certificates supplied at no additional charge.
• Made in USA.
• Options: Additional sizes and capacities available.

Fork Truck Hook Beam - Fixed
Model No.	Capacity	Fork Spread	Fork Opening Ht.	Fork Width Clearance
HFHB-2-20	2-tons	20 in.	3.25 in.	9.13 in.
HFHB-5-24	5-tons	24 in.	3.25 in.	10.75 in.
HFHB-5-36	5-tons	36 in.	3.25 in.	16.75 in.
HFHB-7.5-36	7.5-tons	36 in.	4.25 in.	16.25 in.
HFHB-10-36	10-tons	36 in.	4.25 in.	16 in.
HFHB-15-36	15-tons	36 in.	4.25 in.	15.88 in.
Fork Truck Hook Beam - Swivel
HFHBS-2-20	2-tons	20 in.	3.25 in.	9.13 in.
HFHBS-5-24	5-tons	24 in.	3.25 in.	10.75 in.
HFHBS-5-36	5-tons	36 in.	3.25 in.	16.75 in.
HFHBS-7.5-36	7.5-tons	36 in.	4.25 in.	16.25 in.
HFHBS-10-36	10-tons	36 in.	4.25 in.	16 in.
HFHBS-15-36	15-tons	36 in.	4.25 in.	15.88 in.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

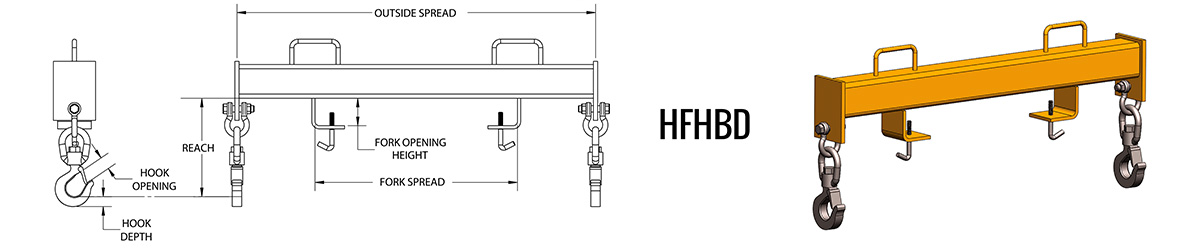

HFHBD - Fork Truck Double Hook Beam

• This style of fork truck attachment is designed to efficiently lift and carry loads on both forks of a lift truck with two latched swivel hooks.
• Easily attaches to the forks.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• 100% of ALL Harrington Lifting Beams are proof-tested to 125% capacity and certificates supplied at no additional charge.
• Made in USA.
• Options: Additional sizes and capacities available.

Fork Truck Double Hook Beam
Model No.	Capacity	Outside Beam Spread	Fork Spread	Fork Opening Ht.
HFHBD-2-20	2-tons	20 in.	6.63 in.	3.25 in.
HFHBD-5-24	5-tons	24 in.	9.38 in.	3.25 in.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.
