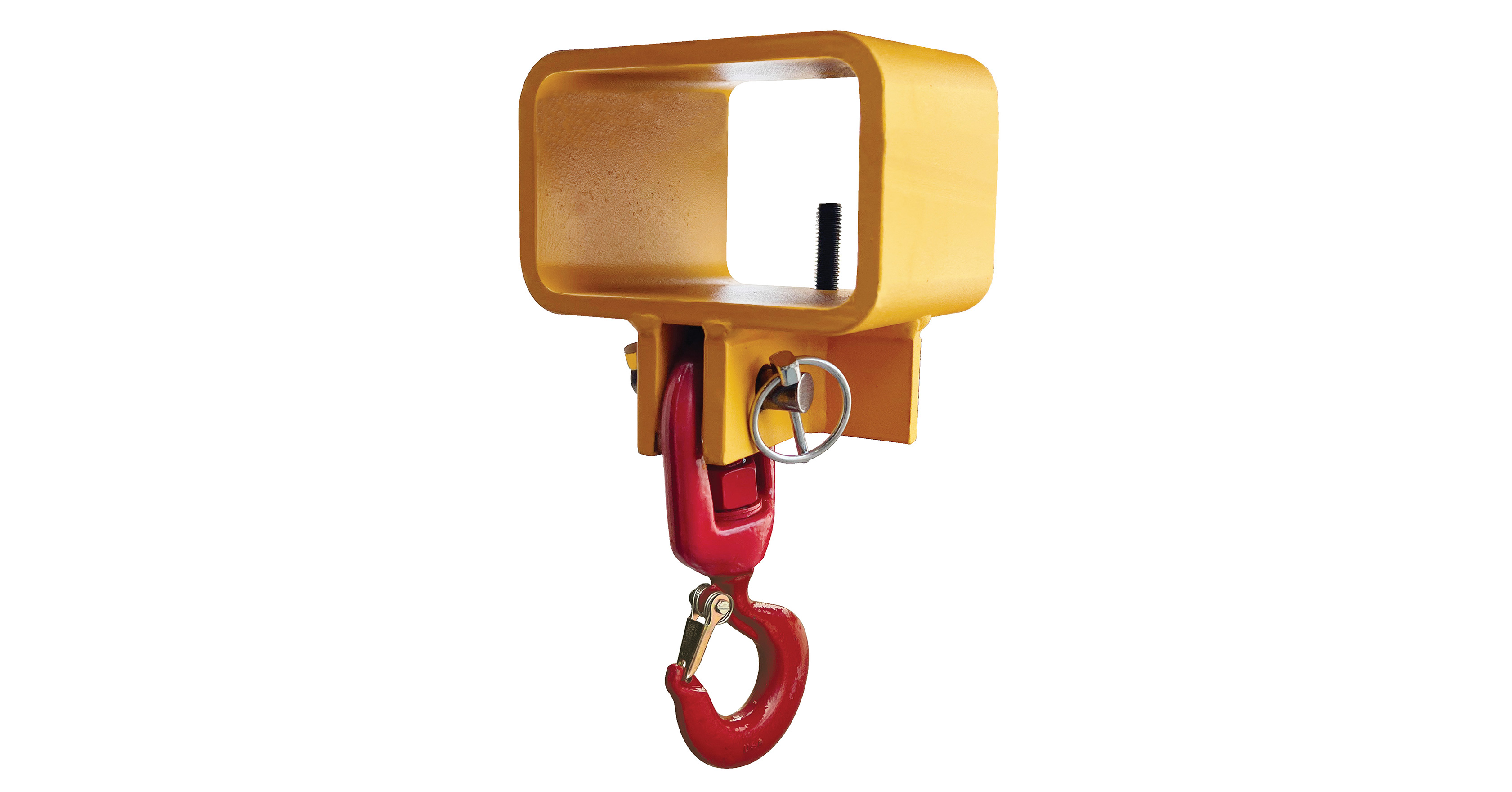

Harrington Fork Truck Swivel Hook, 1-1/2 Ton Capacity, 7 in. Beam Width, HFHS-1.5-7

The Harrington HFHS Fork Truck Swivel Hook is designed to efficiently lift and carry loads on the fork of a lift truck with a single latched swivel hook.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HFHS-1.5-7

Manufacturer part number: HFHS-1.5-7

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Options (Call for Quote - 314-869-7200)

Fixed hooks
Additional capacities
Additional sizes

$765.94

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Fork Truck Attachments Brochure

Product Specifications

Attribute name	Attribute value

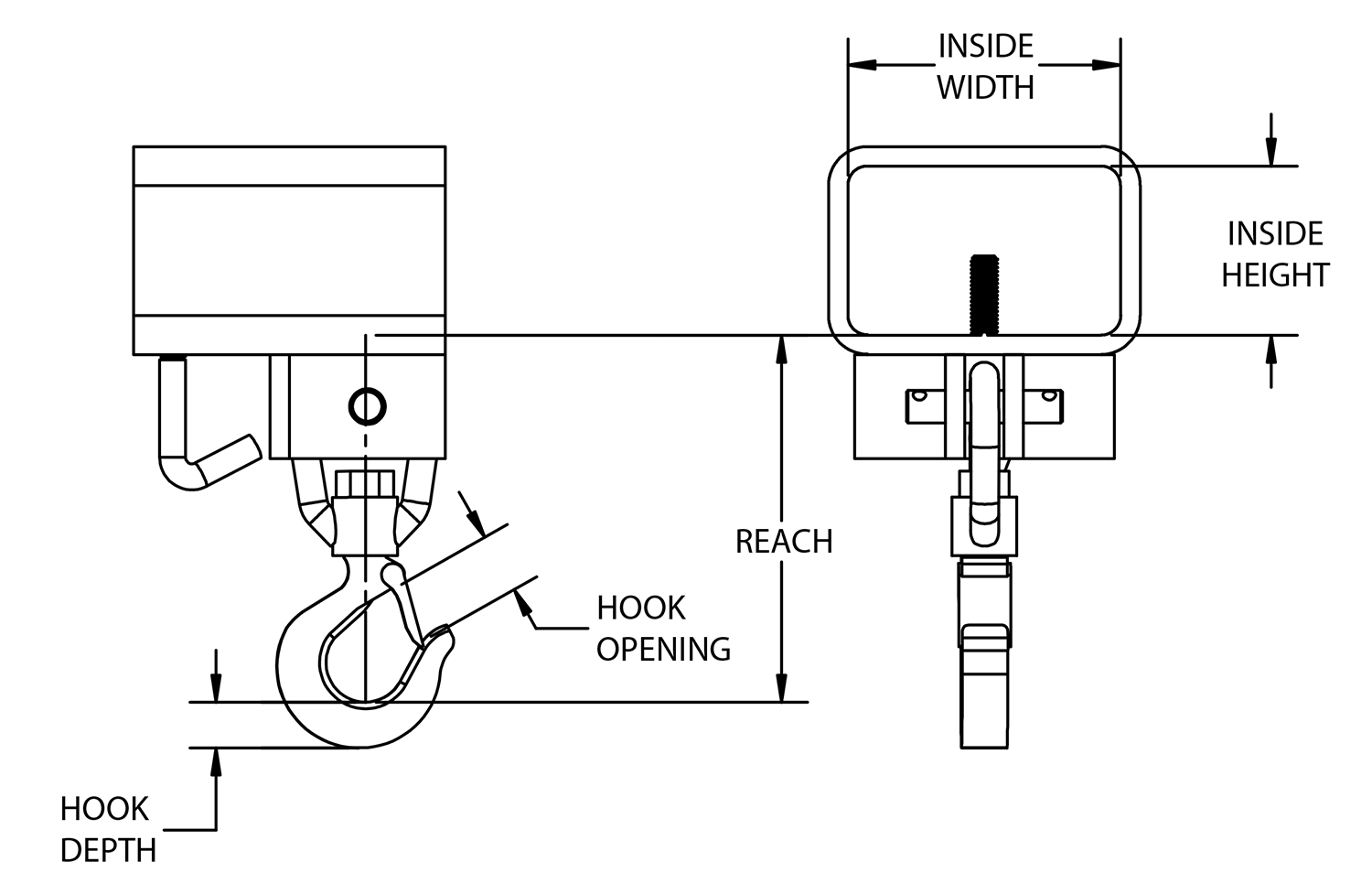

Features	Model Number: HFHS-1.5-7 Capacity: 1-1/2 Ton / 1360.777 kg Beam Dimensions Inside Beam Width: 7 in. / 177.8 mm Inside Beam Height: 3 in. / 76.2 mm Hook Dimensions Hook Reach: 6.56 in. / 166.62 mm Hook Depth: 1 in. / 25.4 mm Hook Opening: 1 in. / 25.4 mm Weight: 24 lbs. / 10.89 kg Designed for efficient single-point lifting and carrying of loads on forklift forks using a swivel hook. Attaches quickly and easily to forklift forks for fast setup. Options: Fixed hooks, Additional sizes and capacities available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
