Harrington Telescoping Pivot Fork Truck Boom, 4 Ton Capacity, HTBP-80

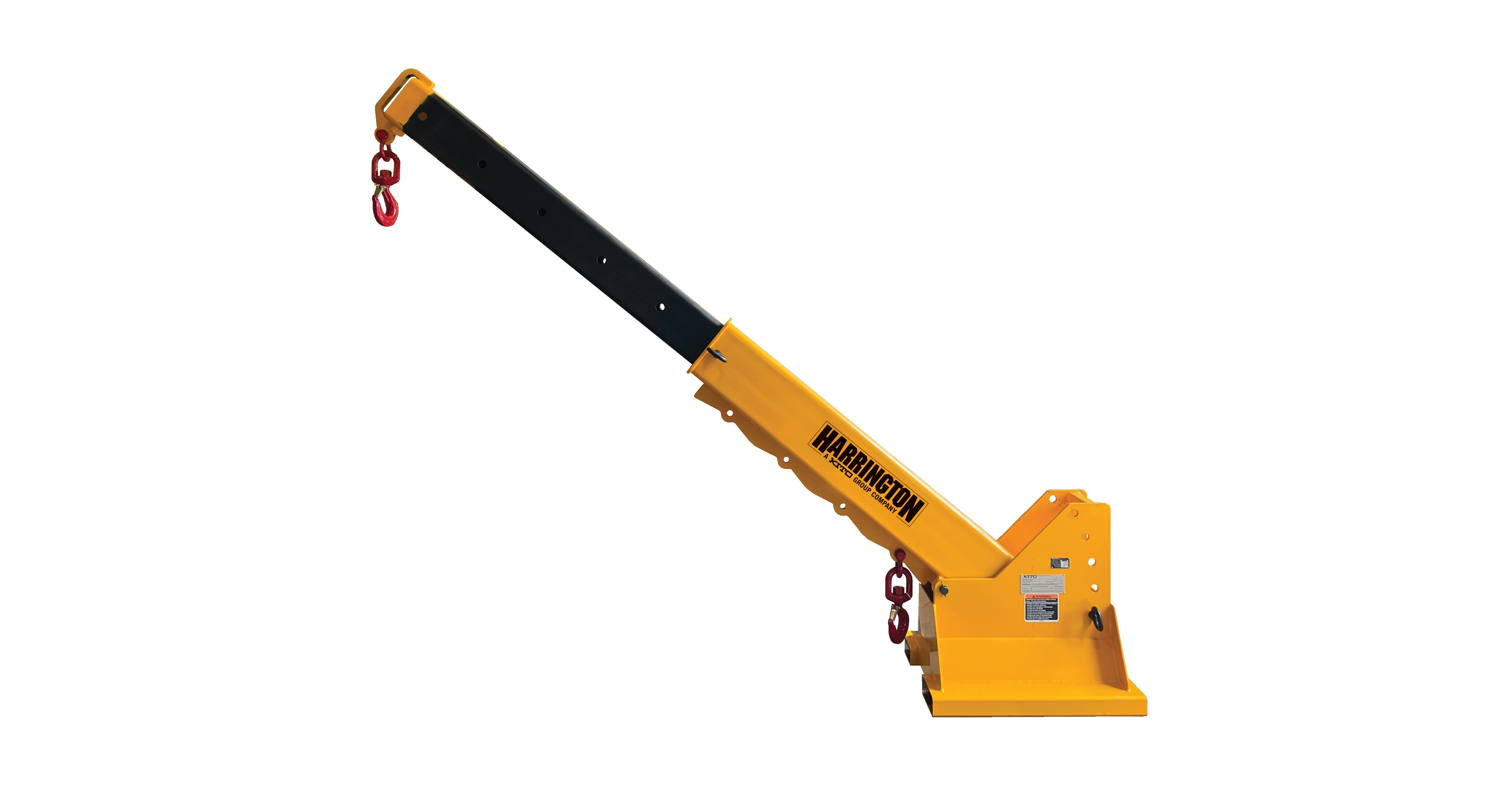

The Harrington HTBP Telescoping Fork Truck Boom is a forklift attachment that features a pivoting, telescopic boom that can extend up to 12 feet and transform your forklift into a mobile crane.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HTBP-80

Manufacturer part number: HTBP-80

Lead Time (subject to change, call to verify): typically ships in 30-35 business days

Includes *

Standard swivel hooks
Standard restraining chain with grab hook
Attached handle for ease of boom extension

Options (Call for Quote - 314-869-7200)

Additional capacities
Additional sizes

$6,617.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Fork Truck Attachments Brochure

Product Specifications

Attribute name	Attribute value

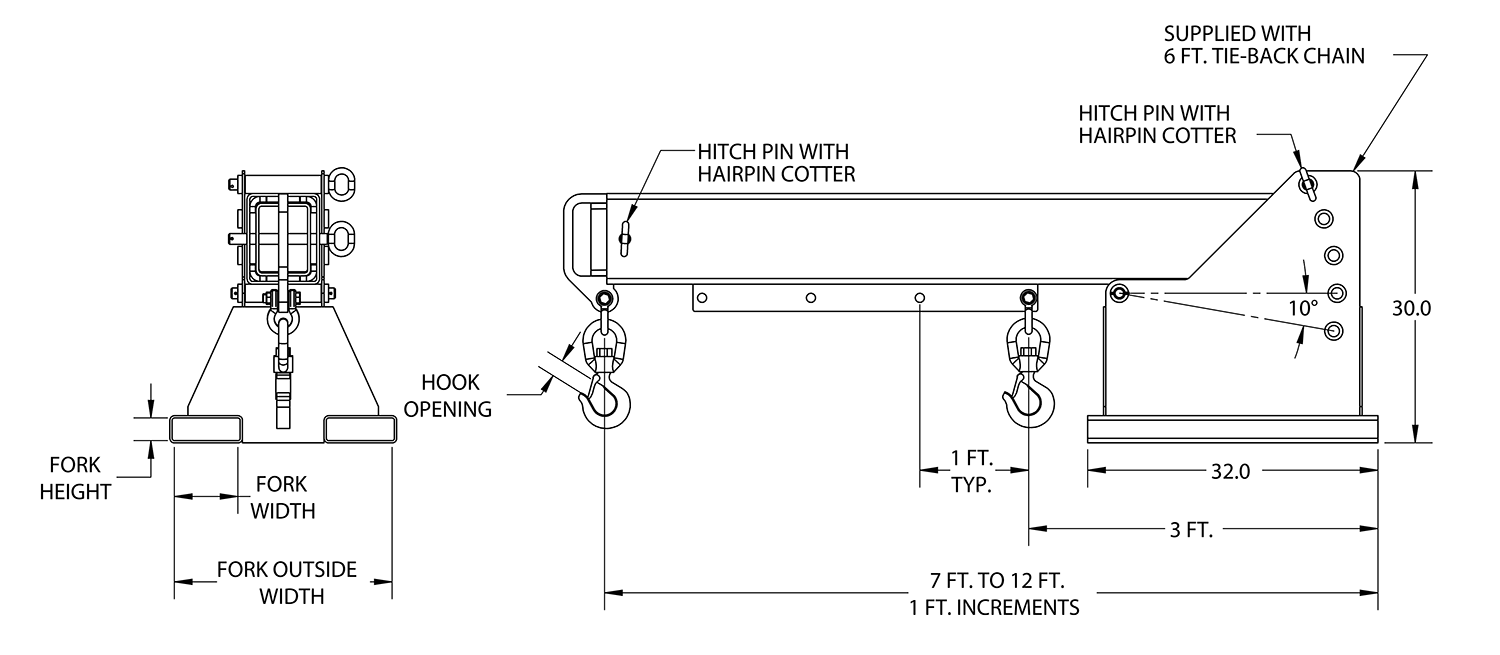

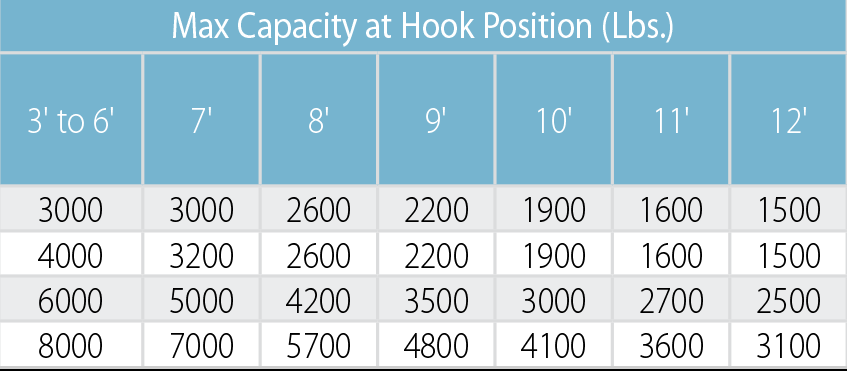

Features	Model Number: HTBP-80 Capacity: 8 Ton / 7257.478 kg Fork Dimensions Fork Width: 7 in. / 177.8 mm Fork Height: 2.5 in. / 63.5 mm Outside Fork Width: 22.5 in. / 571.5 mm Headroom: 30 in. / 762.0 mm Hook Opening: 1.61 in. / 40.894 mm Max Capacity at Hook Position: 3 to 6 ft: 8,000 lbs. / 3628.741.55 kg 7 ft: 7,000 lbs. / 3175.14 kg 8 ft: 5,700 lbs. / 2585.53 kg 9 ft: 4,800 lbs. / 2177.24 kg 10 ft: 4,100 lbs. / 1859.72 kg 11 ft: 3,600 lbs. / 1632.93 kg 12 ft: 3,100 lbs. / 1406.14 kg Weight: 870 lbs. / 394.6 kg The HTBP features a locking pin to allow for multiple hook positions, an attached handle for ease of boom extension, and a pair of heavy-duty swivel or fixed hooks. This style of fork truck attachment is designed to efficiently lift and carry loads with a telescoping pivot boom with locking pin allowing for multiple hook positions. Supplied with standard restraining chain with grab hook and attached handle for ease of boom extension. 12 foot maximum boom reach supplied with standard swivel hooks and can pivot to a vertical height of 6 ft 4 in. Options: Additional sizes and capacities available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
