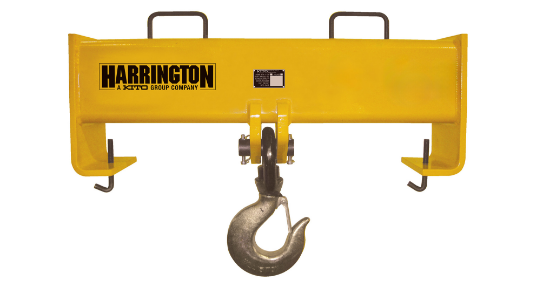

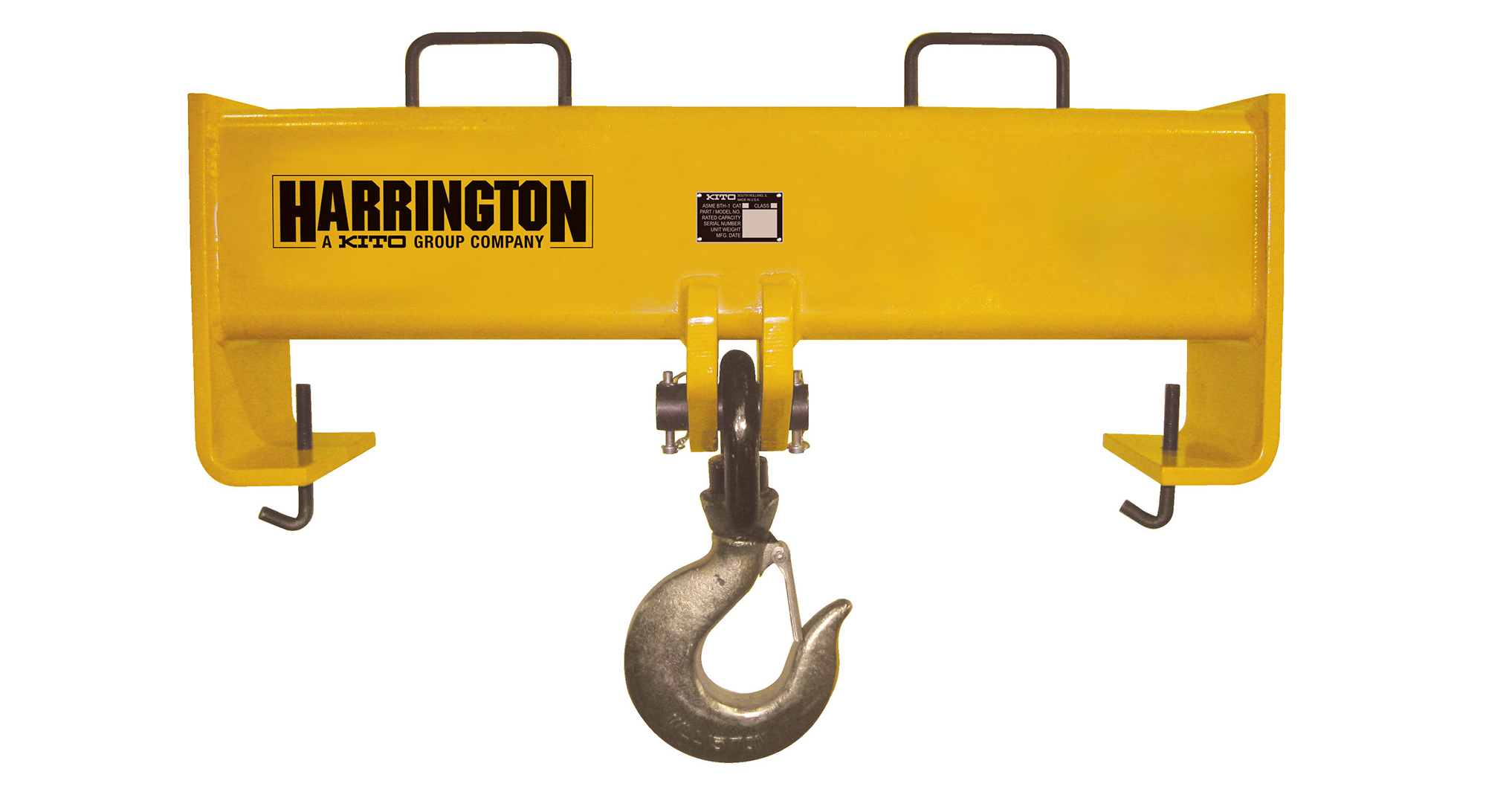

Harrington Fork Truck Swivel Hook Beam, 7-1/2 Ton Capacity, 36 in. Fork Spread, HFHBS-7.5-36

The Harrington HFHBS Fork Truck Swivel Hook Beam is designed to efficiently lift and carry loads on both forks of a lift truck with a single latched swivel hook.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HFHBS-7.5-36

Manufacturer part number: HFHBS-7.5-36

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Options (Call for Quote - 314-869-7200)

Fixed hooks
Additional capacities
Additional sizes

$2,709.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Fork Truck Attachments Brochure

Product Specifications

Attribute name	Attribute value

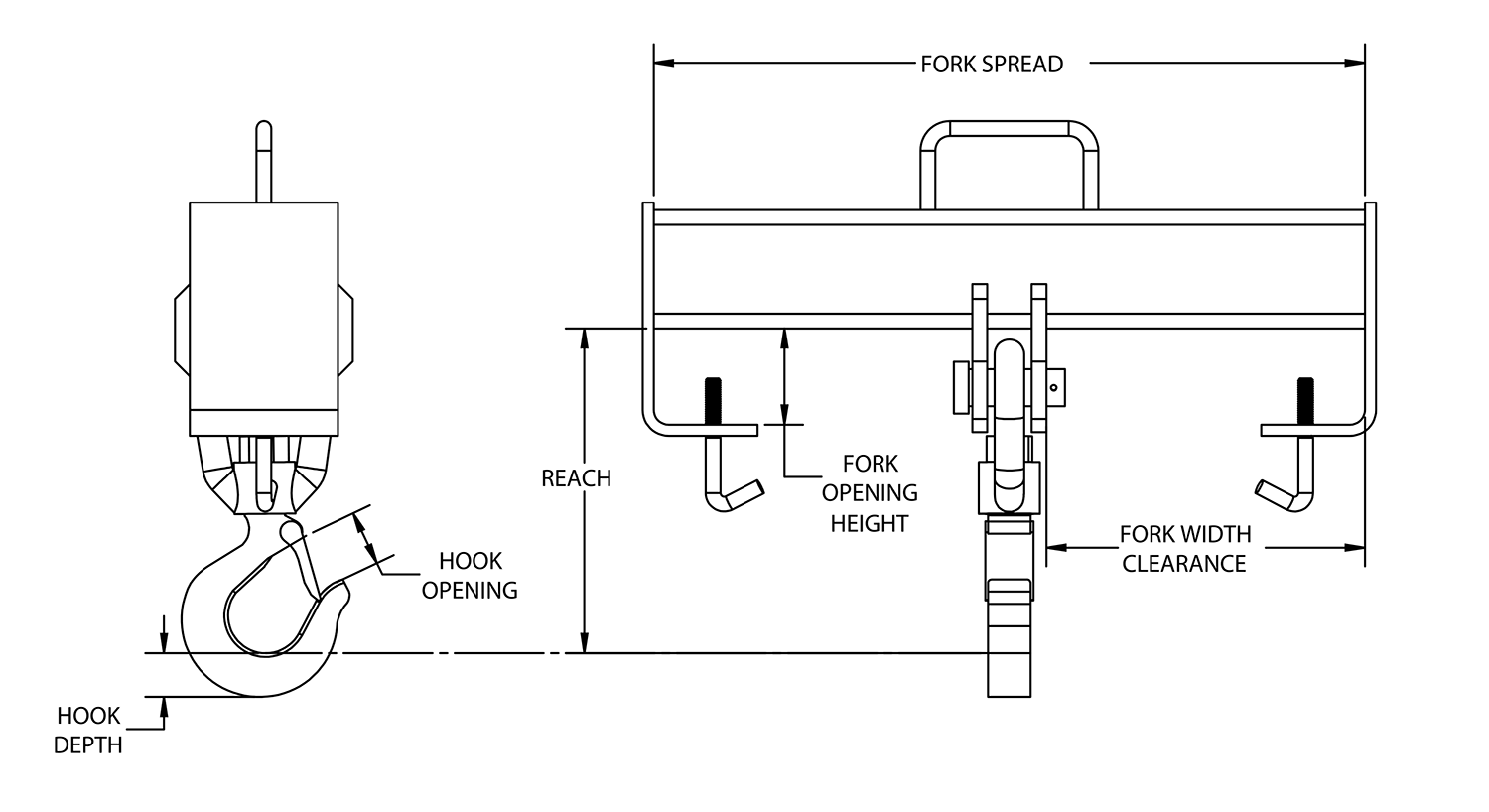

Features	Model Number: HFHBS-7.5-36 Capacity: 7.5 Ton / 6804 kg Fork Dimensions Fork Spread: 36 in. / 914.4 mm Fork Opening Height: 4.25 in. / 107.95 mm Fork Width Clearance: 16.25 in. / 412.75 mm Hook Dimensions Hook Reach: 15.75 in. / 400.05 mm Hook Depth: 2.25 in. / 57.15 mm Hook Opening: 2.22 in. / 56.39 mm Weight: 175 lbs. / 79.38 kg Designed to lift and carry loads on both forklift forks using a single, secure swivel hook. Attaches quickly and easily to forklift forks for efficient setup. Options: Fixed hooks, Additional sizes and capacities available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
