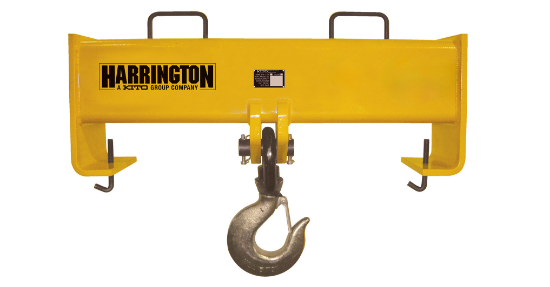

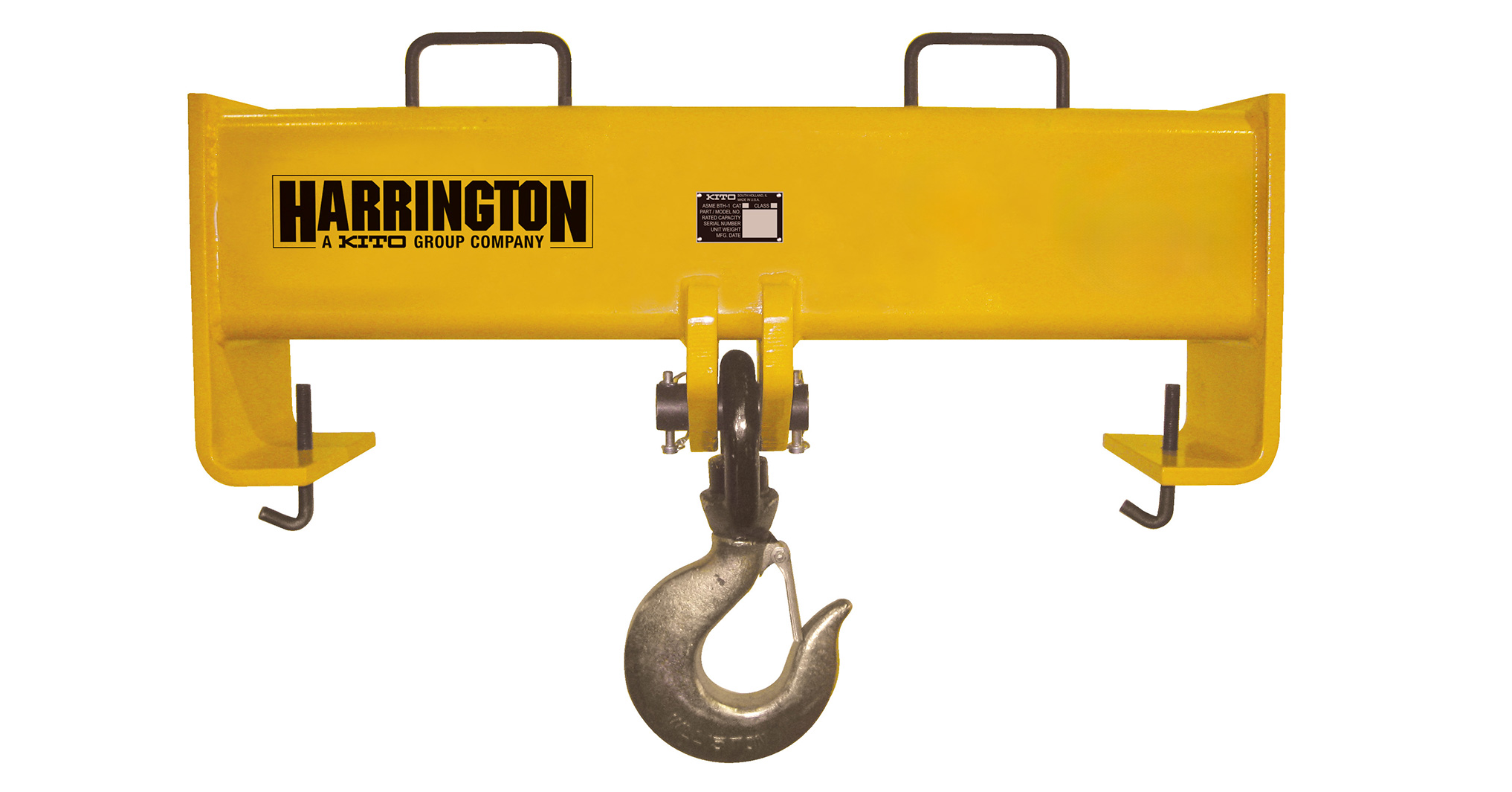

Harrington Fork Truck Swivel Hook Beam, 5 Ton Capacity, 24 in. Fork Spread, HFHBS-5-24

The Harrington HFHBS Fork Truck Swivel Hook Beam is designed to efficiently lift and carry loads on both forks of a lift truck with a single latched swivel hook.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HFHBS-5-24

Manufacturer part number: HFHBS-5-24

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Options (Call for Quote - 314-869-7200)

Fixed hooks
Additional capacities
Additional sizes

$1,083.08

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Fork Truck Attachments Brochure

Product Specifications

Attribute name	Attribute value

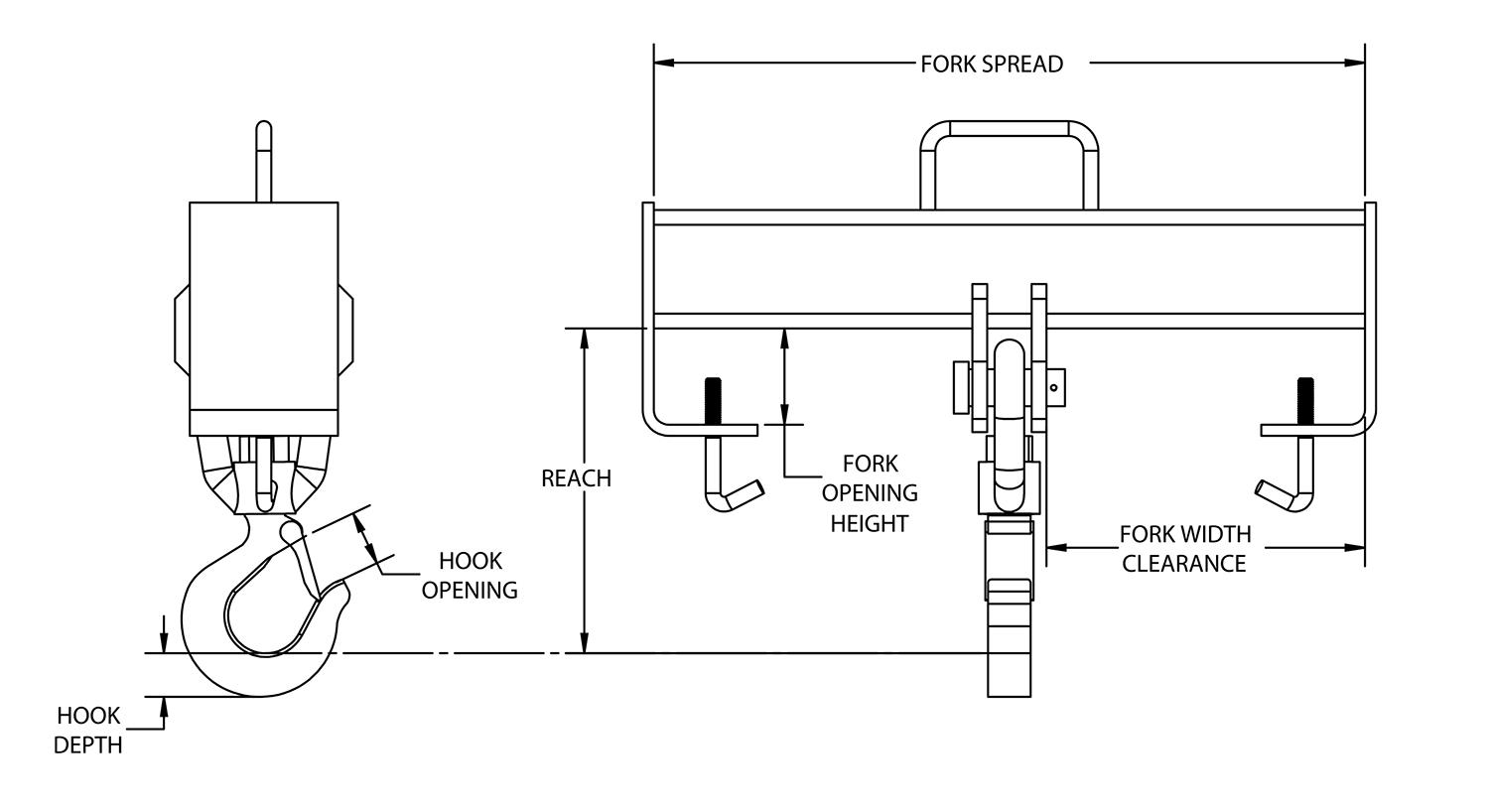

Features	Model Number: HFHBS-5-24 Capacity: 5 Ton / 4536 kg Fork Dimensions Fork Spread: 24 in. / 609.6 mm Fork Opening Height: 3.25 in. / 82.55 mm Fork Width Clearance: 10.75 in. / 273.05 mm Hook Dimensions Hook Reach: 11.44 in. / 290.58 mm Hook Depth: 1.81 in. / 45.97 mm Hook Opening: 1.69 in. / 42.93 mm Weight: 50 lbs. / 22.68 kg Designed to lift and carry loads on both forklift forks using a single, secure swivel hook. Attaches quickly and easily to forklift forks for efficient setup. Options: Fixed hooks, Additional sizes and capacities available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
