Harrington Fork Truck Swivel Hook Beam, 2 Ton Capacity, 20 in. Fork Spread, HFHBS-2-20

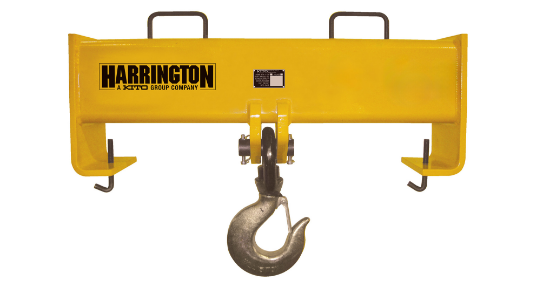

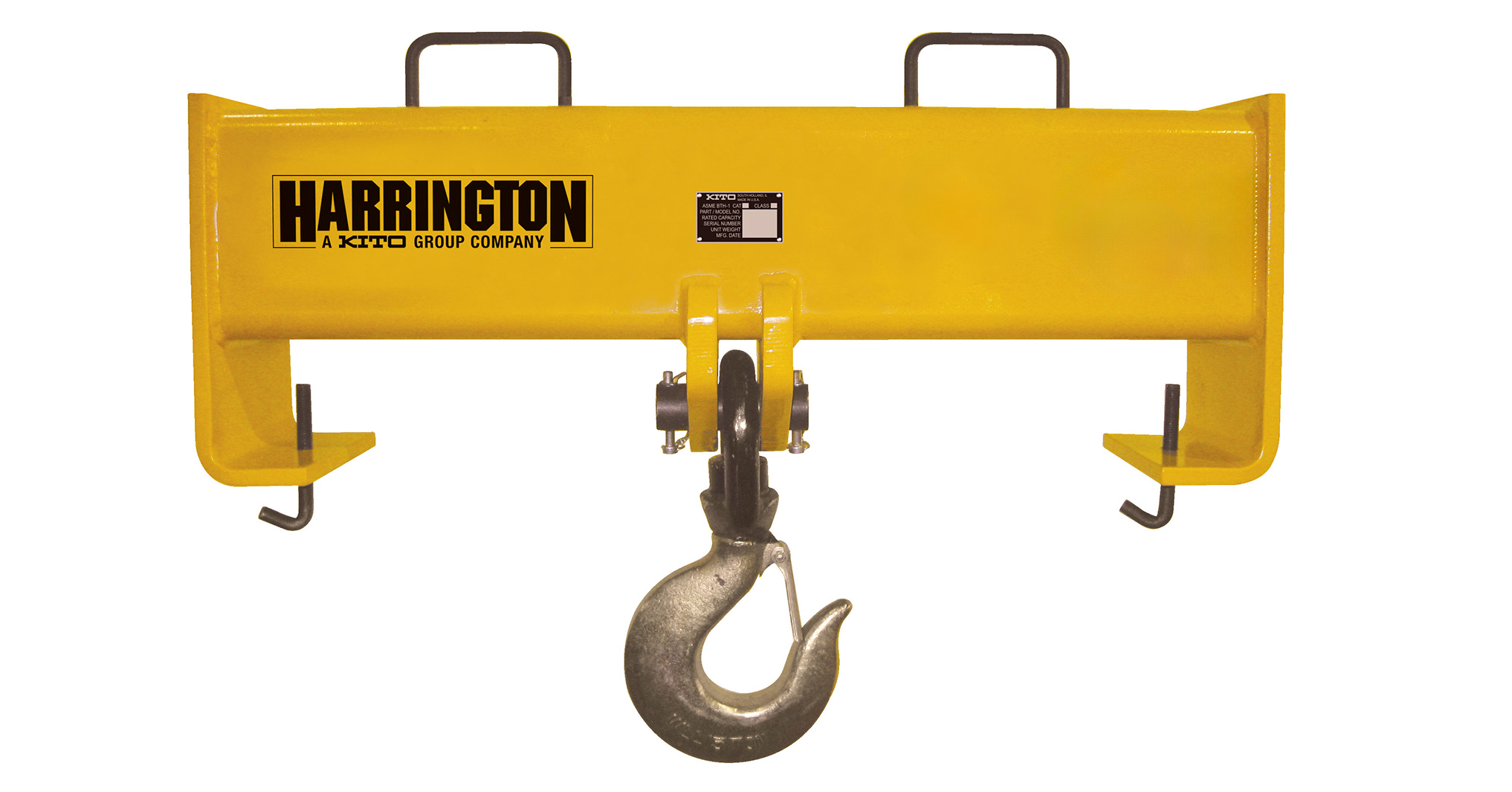

The Harrington HFHBS Fork Truck Swivel Hook Beam is designed to efficiently lift and carry loads on both forks of a lift truck with a single latched swivel hook.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HFHBS-2-20

Manufacturer part number: HFHBS-2-20

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Options (Call for Quote - 314-869-7200)

Fixed hooks
Additional capacities
Additional sizes

$803.72

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Fork Truck Attachments Brochure

Product Specifications

Attribute name	Attribute value

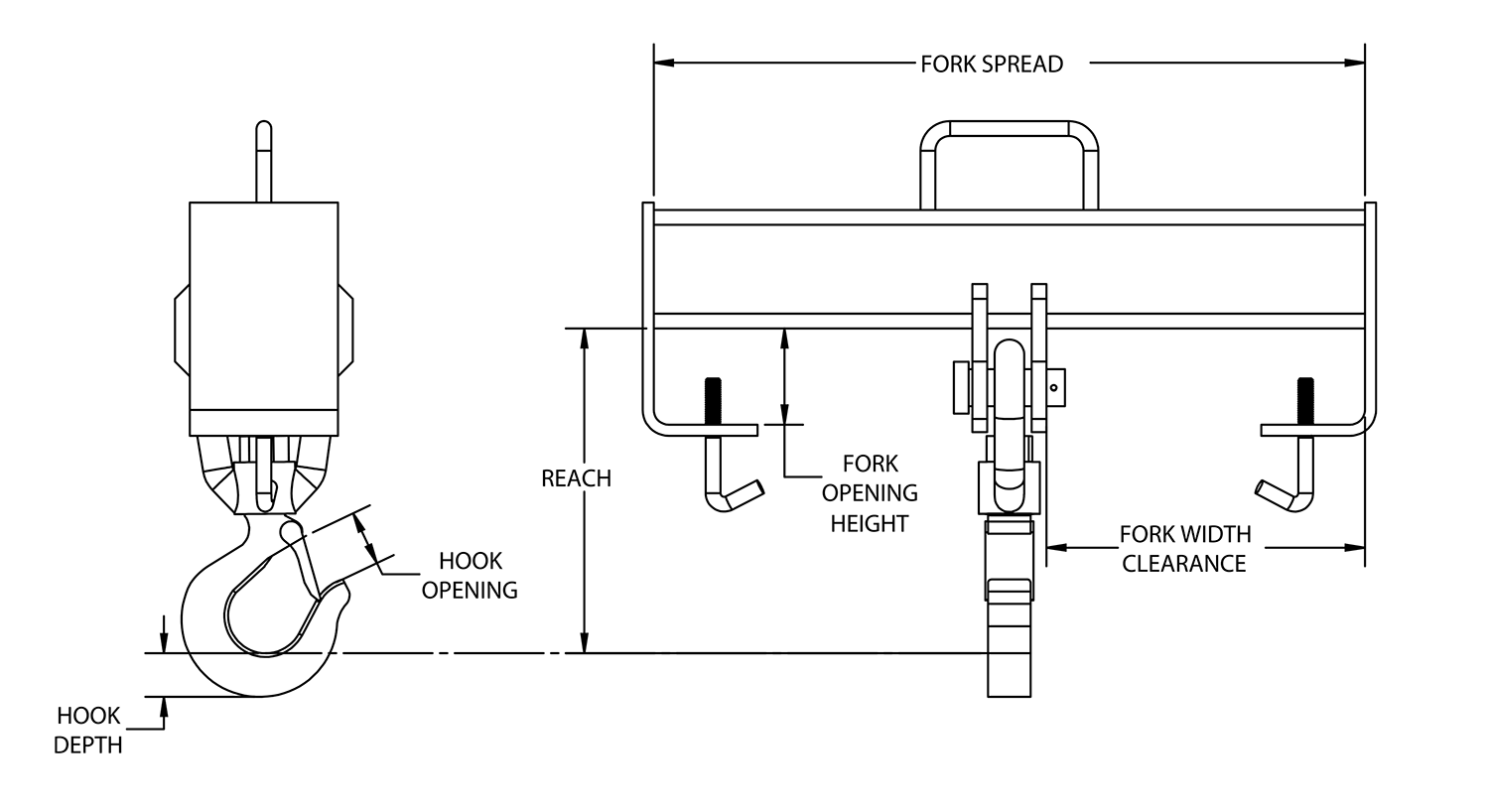

Features	Model Number: HFHBS-2-20 Capacity: 2 Ton / 1814 kg Fork Dimensions Fork Spread: 20 in. / 508 mm Fork Opening Height: 3.25 in. / 82.55 mm Fork Width Clearance: 9.13 in. / 231.9 mm Hook Dimensions Hook Reach: 8.88 in. / 225.55 mm Hook Depth: 1.13 in. / 28.7 mm Hook Opening: 1.16 in. / 29.46 mm Weight: 25 lbs. / 11.34 kg Designed to lift and carry loads on both forklift forks using a single, secure swivel hook. Attaches quickly and easily to forklift forks for efficient setup. Options: Fixed hooks, Additional sizes and capacities available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
