Harrington Fork Truck Double Hook Beam, 5 Ton Capacity, 24 in. Fork Spread, HFHBD-5-24

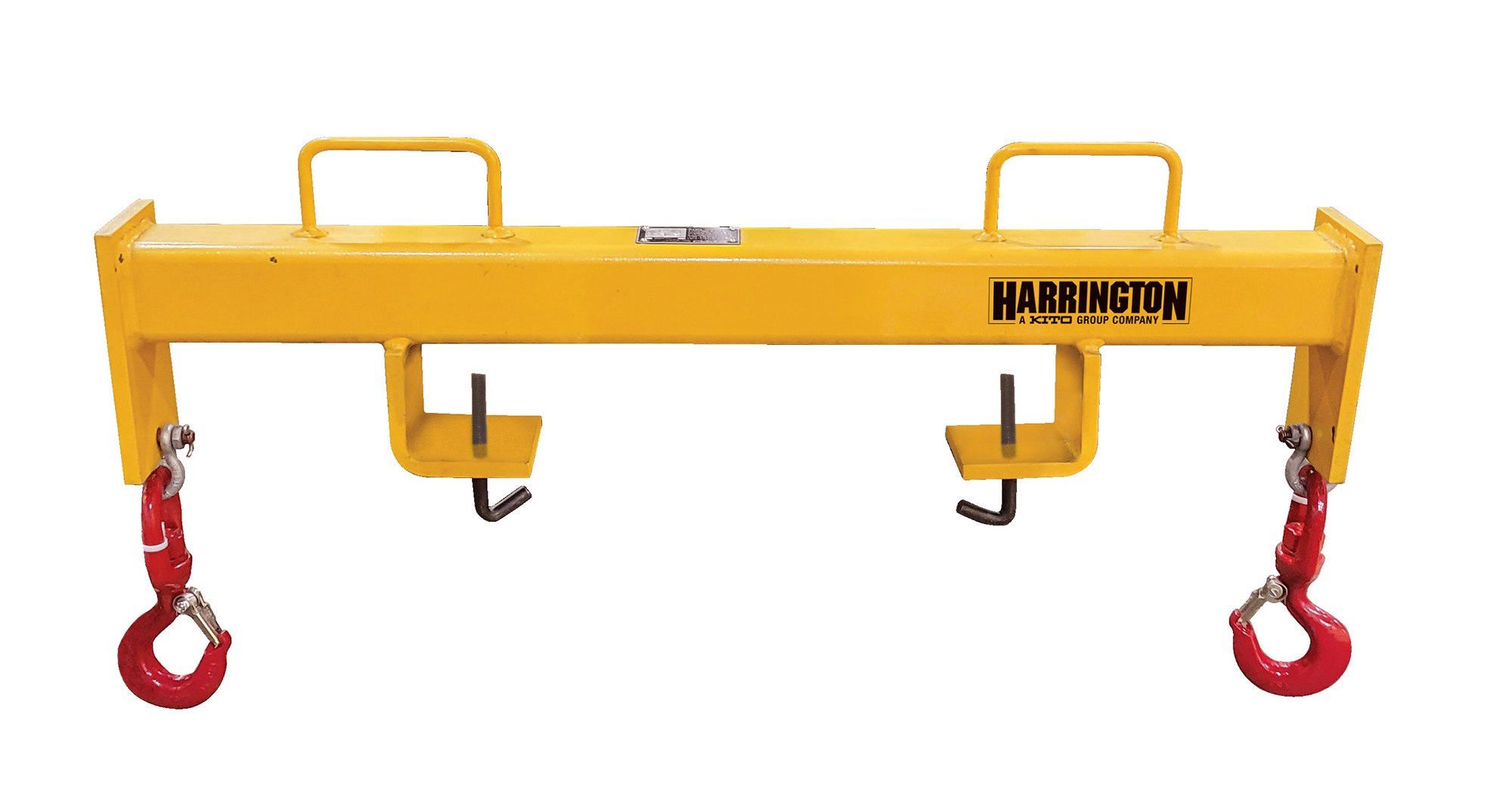

The Harrington HFHBD Fork Truck Double Swivel Hook Beam is designed to efficiently lift and carry loads on both forks of a lift truck with two latched swivel hooks.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HFHBD-5-24

Manufacturer part number: HFHBD-5-24

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Options (Call for Quote - 314-869-7200)

Fixed hooks
Additional capacities
Additional sizes

$1,400.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Fork Truck Attachments Brochure

Product Specifications

Attribute name	Attribute value

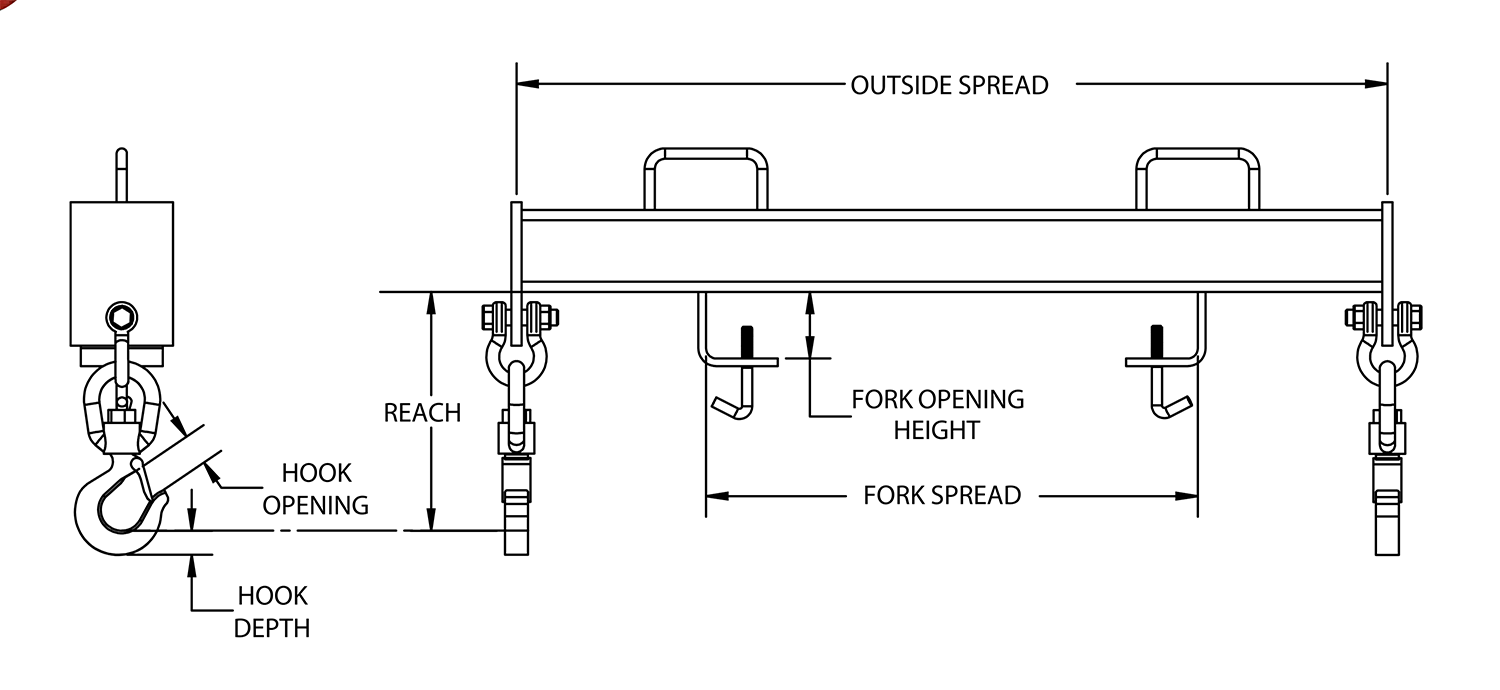

Features	Model Number: HFHBD-5-24 Capacity: 5 Ton / 4536 kg Outside Beam Spread: 42 in. / 1066.8 mm Fork Dimensions Fork Spread: 24 in. / 609.6 mm Fork Opening Height: 3.25 in. / 82.55 mm Hook Dimensions Hook Reach: 11.66 in. / 296.16 mm Hook Depth: 1.44 in. / 36.58 mm Hook Opening: 1.36 in. / 34.54 mm Weight: 75 lbs. / 34.02 kg Designed to lift and carry loads on both forklift forks using two latched swivel hook. Attaches quickly and easily to forklift forks for efficient setup. Options: Fixed hooks, Additional sizes and capacities available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
