Coil handling equipment and coil lifting devices, commonly referred to as C hooks and coil lifters, are below the hook lifting devices that make lifting and handling large and small coils of any material extremely easy and efficient. All our coil handling equipment is engineered with design flexibility to meet the specific requirements of any operating environment.

C Hooks consist of a single top bail and counterweight connected to a “C-shaped” hook. This C hook is inserted into the inner diameter (ID) of the coil to lift the coil horizontally.

Vertical coil lifters, on the other hand, feature two coil grabs that are inserted into the inner diameter (ID) of the coil and expanded to securely grip and lift the coil vertically.

Coil lifters are the perfect material handling solution for any application in which coils of any material need to be lifted and positioned. Some of the most common C hook applications include:

• Heavy-Duty Material Handling
• Paper Roll Handling
• Slit Coil Handling
• Close Stacking Coil Handling
• Pivoting Coil Handling

At Tri-State Rigging Equipment we specialize in providing custom designed and fabricated C hooks and coil lifters to fit any rigging application. We can also provide you with any standard “off the shelf” below the hook lifting device on the market. If you cannot find what you are looking for, or if you don’t know exactly what you need, call or email our sales team to speak with a below the hook product specialist.

C Hook and Coil Lifter Options

Coil lifting devices can come equipped with a large variety of options to fit almost any rigging or lifting application. Some of these options include:

• High Temperature
• Mill Duty
• Storage and Maintenance Stands
• Bolt-on or Bonded Protective Pads
• Bail Pins
• Motorized Rotation
• Guide Rollers

• Load Retainers
• Spring Balancers
• Digital Weighing Systems
• Narrow Coil Designs
• Coil Tipper Designs
• Combination C-Hook and Pallet Lifter Designs
• Remote Control Features

In addition, C hooks and coil lifters can be clad in a variety of materials to help perform manufacturing processes. For example, wire and rod coils that need to be submerged in acid as part of a manufacturing process can be lifted and lowered into the acid using a nickel-clad C hook.

Engineered Product Warning

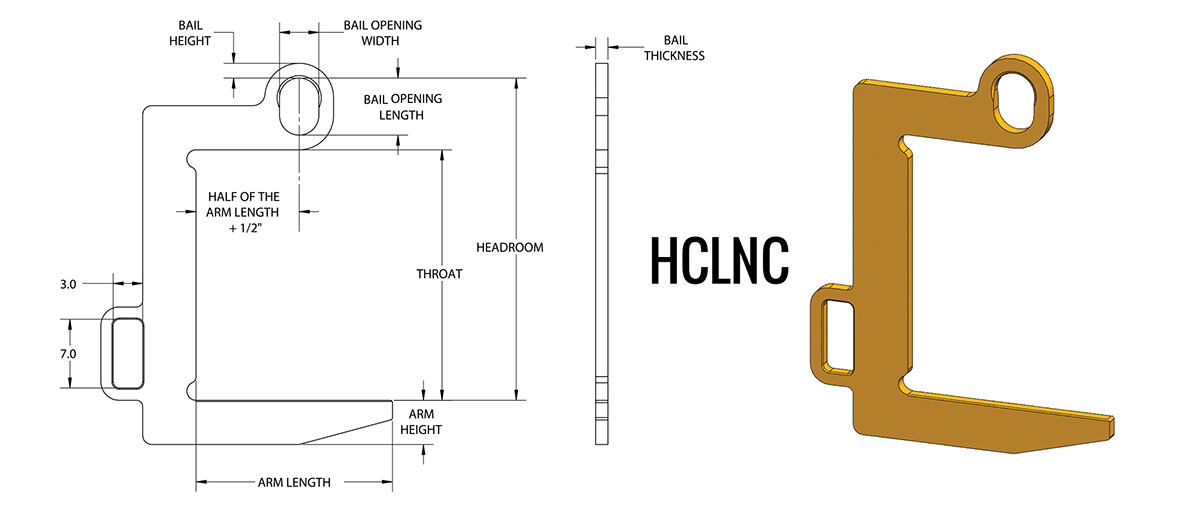

Harrington HCLNC - Coil Lifter Narrow Coil

• Designed to easily lift and position narrow coils by placing the lifting arm securely through the I.D. of the coil.
• Supplied with standard lifter guide handle and radius on lifting arm to minimize coil damage.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
• Made in the USA.
• Options: Higher capacities, Additional lengths, Larger throat opening, Protective padding, Coil retainer cap, Parking stands.

HCLNC Dimensions (Inches)
Model No.	Capacity	Coil Width	Lift Arm (L x H)	Throat Ht.
HCLNC-1/2-8	1/2-ton	8 in.	8 x 2.25 in.	14.5 in.
HCLNC-1/2-12	1/2-ton	12 in.	12 x 2.25 in.	14.5 in.
HCLNC-1-8	1-ton	8 in.	8 x 2.25 in.	17.5 in.
HCLNC-1-16	1-ton	16 in.	16 x 3 in.	17.5 in.
HCLNC-2-8	2-ton	8 in.	8 x 2.5 in.	19.5 in.
HCLNC-2-16	2-ton	16 in.	16 x 3.25 in.	19.5 in.
HCLNC-3.5-12	3.5-ton	12 in.	12 x 3.25 in.	21.5 in.
HCLNC-3.5-16	3.5-ton	16 in.	16 x 3.75 in.	21.5 in.
HCLNC-5-16	5-ton	16 in.	16 x 4 in.	25.5 in.
HCLNC-5-20	5-ton	20 in.	20 x 4.5 in.	25.5 in.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

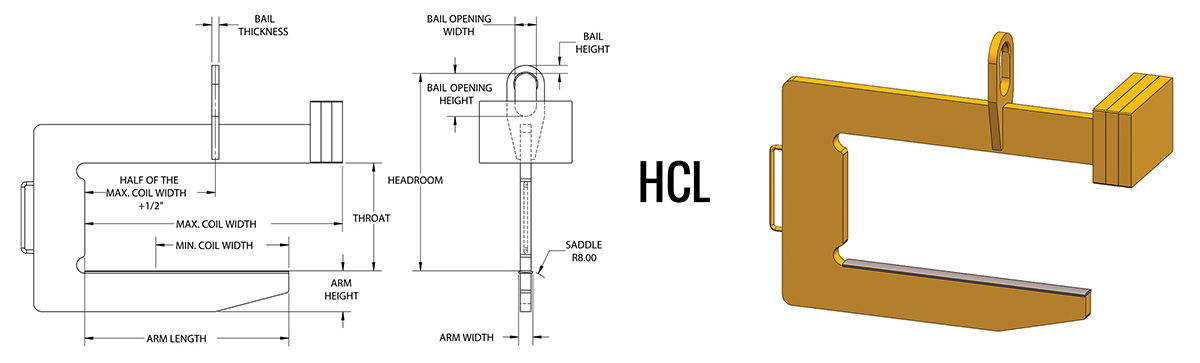

HCL - Coil Lifter

• This style of heavy duty lifter is designed to easily lift and position large heavy coils by placing the lifting arm securely through the I.D. of the coil.
• Supplied with standard lifter guide handle and curved saddle on lifting arm to minimize coil damage, optional padding is available for additional coil protection.
• Counterbalanced to hang level when not loaded.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• 100% of ALL Harrington Lifting Beams are proof-tested to 125% capacity and certificates supplied at no additional charge.
• Made in USA.
• Options: Higher capacities, Additional lengths, Larger throat opening, Protective padding, Parking stands.

HCL Dimensions (Inches)
Model No.	Capacity	Coil Width (max/min)	Lift Arm (L x H x W)	Throat Ht.
HCL-5-36	5-ton	36/24 in.	30 x 6.25 x 4 in.	24 in.
HCL-5-48	5-ton	48/30 in.	39 x 6.25 x 4 in.	24 in.
HCL-5-60	5-ton	60/36 in.	48 x 7 x 4 in.	24 in.
HCL-7.5-36	7.5-ton	36/24 in.	30 x 6.25 x 4 in.	24 in.
HCL-7.5-48	7.5-ton	48/30 in.	39 x 7.25 x 4 in.	24 in.
HCL-7.5-60	7.5-ton	60/36 in.	48 x 8 x 4 in.	24 in.
HCL-10-48	10-ton	48/30 in.	39 x 8.25 x 4 in.	24 in.
HCL-10-60	10-ton	60/36 in.	48 x 8.25 x 4 in.	24 in.
HCL-10-72	10-ton	72/42 in.	57 x 9 x 4 in.	24 in.
HCL-15-48	15-ton	48/30 in.	39 x 9 x 4 in.	30 in.
HCL-15-60	15-ton	60/36 in.	48 x 10 x 4 in.	30 in.
HCL-15-72	15-ton	72/42 in.	57 x 10.75 x 4 in.	30 in.
HCL-20-60	20-ton	60/36 in.	48 x 10.5 x 4 in.	30 in.
HCL-20-72	20-ton	72/42 in.	57 x 11.5 x 4 in.	30 in.
HCL-25-60	25-ton	60/36 in.	48 x 11.75 x 4 in.	34 in.
HCL-25-72	25-ton	72/42 in.	57 x 12.75 x 4 in.	34 in.
HCL-30-60	30-ton	60/36 in.	48 x 12.75 x 4 in.	34 in.
HCL-30-72	30-ton	72/42 in.	57 x 12 x 5 in.	34 in.
HCL-40-72	40-ton	72/42 in.	57 x 13.75 x 5 in.	38 in.
HCL-50-84	50-ton	84/48 in.	66 x 16.5 x 5 in.	40 in.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

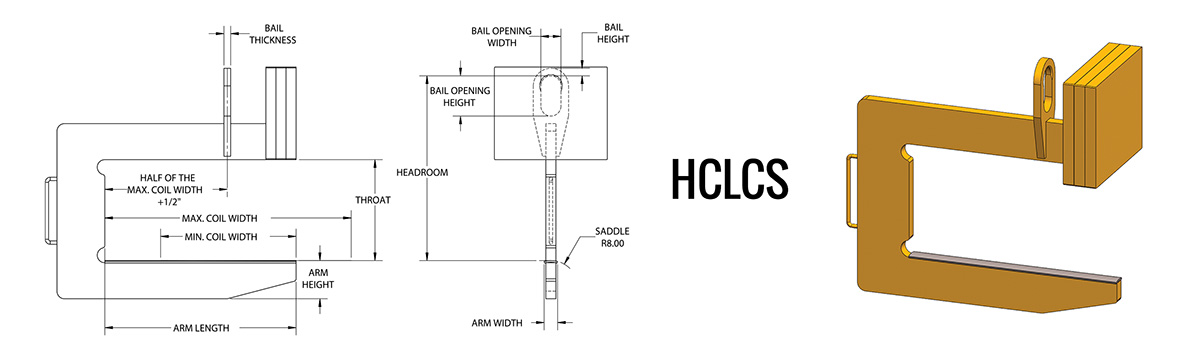

HCLCS - Coil Lifter Close Stacking

• This style of heavy duty lifter is designed with a recessed counterweight to allow for close coil stacking that maximizes floor space.
• Designed to easily lift and position large heavy coils by placing the lifting arm securely through the I.D. of the coil.
• Supplied with standard lifter guide handle and curved saddle on lifting arm to minimize coil damage.
• Counterbalanced to hang level when not loaded.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• 100% of ALL Harrington Lifting Beams are proof-tested to 125% capacity and certificates supplied at no additional charge.
• Made in USA.
• Options: Higher capacities, Additional lengths, Larger throat opening, Protective padding, Parking stands.

Coil Lifter Close Stacking Dimensions (Inches)
Model No.	Capacity	Coil Width (max/min)	Lift Arm (L x H x W)	Throat Ht.
HCLCS-5-36	5-ton	36/24 in.	30 x 6.25 x 4 in.	24 in.
HCLCS-5-48	5-ton	48/30 in.	39 x 6.25 x 4 in.	24 in.
HCLCS-5-60	5-ton	60/36 in.	48 x 7 x 4 in.	24 in.
HCLCS-7.5-36	7.5-ton	36/24 in.	30 x 6.25 x 4 in.	24 in.
HCLCS-7.5-48	7.5-ton	48/30 in.	39 x 7.25 x 4 in.	24 in.
HCLCS-7.5-60	7.5-ton	60/36 in.	48 x 8 x 4 in.	24 in.
HCLCS-10-48	10-ton	48/30 in.	39 x 8.25 x 4 in.	24 in.
HCLCS-10-60	10-ton	60/36 in.	48 x 8.25 x 4 in.	24 in.
HCLCS-10-72	10-ton	72/42 in.	57 x 9 x 4 in.	24 in.
HCLCS-15-48	15-ton	48/30 in.	39 x 9 x 4 in.	30 in.
HCLCS-15-60	15-ton	60/36 in.	48 x 10 x 4 in.	30 in.
HCLCS-15-72	15-ton	72/42 in.	57 x 10.75 x 4 in.	30 in.
HCLCS-20-60	20-ton	60/36 in.	48 x 10.5 x 4 in.	30 in.
HCLCS-20-72	20-ton	72/42 in.	57 x 11.5 x 4 in.	30 in.
HCLCS-25-60	25-ton	60/36 in.	48 x 11.75 x 4 in.	34 in.
HCLCS-25-72	25-ton	72/42 in.	57 x 12.75 x 4 in.	34 in.
HCLCS-30-60	30-ton	60/36 in.	48 x 12.75 x 4 in.	34 in.
HCLCS-30-72	30-ton	72/42 in.	57 x 12 x 5 in.	34 in.
HCLCS-40-72	40-ton	72/42 in.	57 x 13.75 x 5 in.	38 in.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

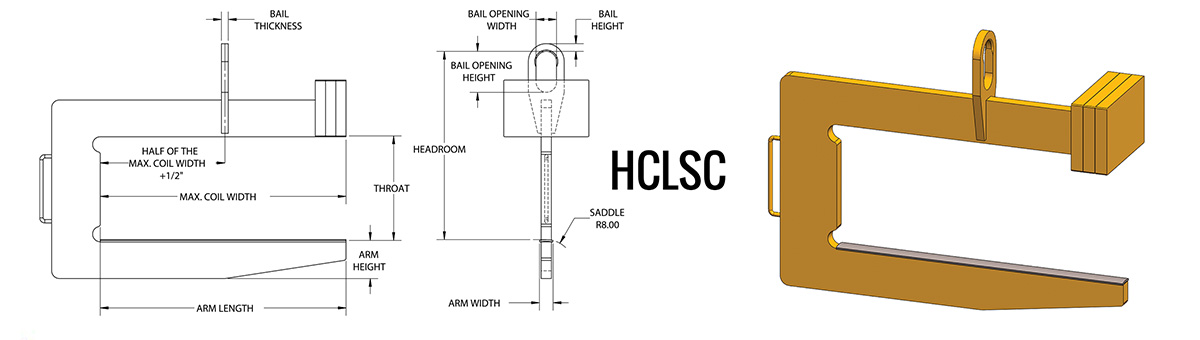

HCLSC - Coil Lifter Slit Coil

• This style of heavy duty lifter is designed with a recessed counterweight to allow for close coil stacking that maximizes floor space.
• Designed to easily lift and position large heavy coils by placing the lifting arm securely through the I.D. of the coil.
• Supplied with standard lifter guide handle and curved saddle on lifting arm to minimize coil damage.
• Counterbalanced to hang level when not loaded.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• 100% of ALL Harrington Lifting Beams are proof-tested to 125% capacity and certificates supplied at no additional charge.
• Made in USA.
• Options: Higher capacities, Additional lengths, Larger throat opening, Protective padding, Parking stands.

Coil Lifter Slit Coil Dimensions (Inches)
Model No.	Capacity	Coil Width	Lift Arm (L x H x W)	Throat Ht.
HCLSC-5-36	5-ton	36 in.	36 x 6.25 x 4 in.	24 in.
HCLSC-5-48	5-ton	48 in.	48 x 6.25 x 4 in.	24 in.
HCLSC-5-60	5-ton	60 in.	60 x 7 x 4 in.	24 in.
HCLSC-7.5-36	7.5-ton	36 in.	36 x 6.5 x 4 in.	24 in.
HCLSC-7.5-48	7.5-ton	48 in.	48 x 7.25 x 4 in.	24 in.
HCLSC-7.5-60	7.5-ton	60 in.	60 x 8 x 4 in.	24 in.
HCLSC-10-48	10-ton	48 in.	48 x 8.25 x 4 in.	24 in.
HCLSC-10-60	10-ton	60 in.	60 x 8.25 x 4 in.	24 in.
HCLSC-10-72	10-ton	72 in.	72 x 9 x 4 in.	24 in.
HCLSC-15-48	15-ton	48 in.	48 x 9 x 4 in.	30 in.
HCLSC-15-60	15-ton	60 in.	60 x 10 x 4 in.	30 in.
HCLSC-15-72	15-ton	72 in.	72 x 10.75 x 4 in.	30 in.
HCLSC-20-60	20-ton	60 in.	60 x 10.5 x 4 in.	30 in.
HCLSC-20-72	20-ton	72 in.	72 x 11.5 x 4 in.	30 in.
HCLSC-25-60	25-ton	60 in.	60 x 11.75 x 4 in.	34 in.
HCLSC-25-72	25-ton	72 in.	72 x 12.75 x 4 in.	34 in.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

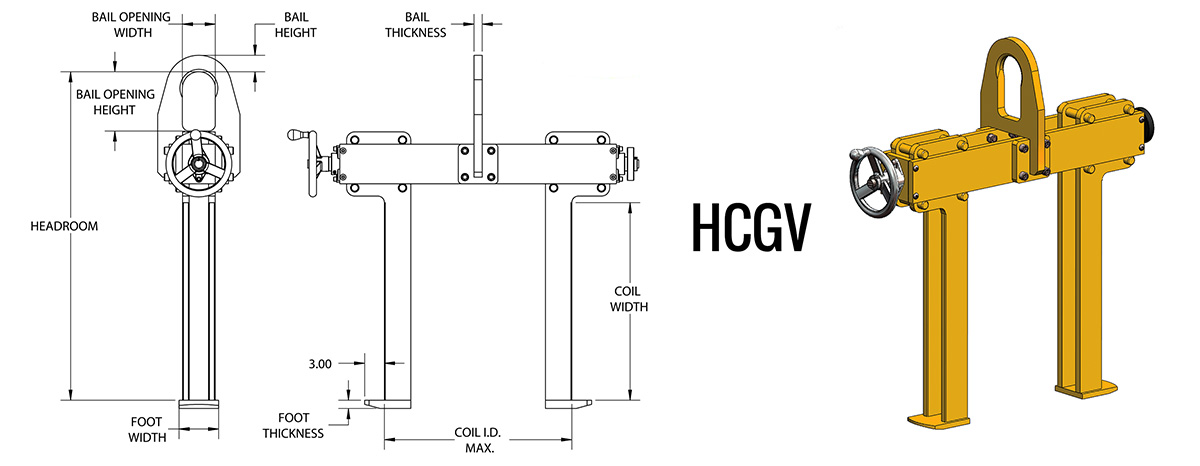

HCGV - Coil Grab Vertical

• Designed to handle vertical coils that are stacked in a vertical position.
• Supplied with manual adjusting legs that adjust to the I.D. of the coil with the standard hand wheel or optional chain wheel.
• Can be supplied with optional motorized leg drive.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• 100% of ALL Harrington Lifting Beams are proof-tested to 125% capacity and certificates supplied at no additional charge.
• Made in USA.
• Options: Higher capacities, Additional lengths, Motorized leg drive, Protective padding, Parking stands.

Coil Grab Vertical Dimensions (Inches)
Model No.	Capacity	Coil ID (min/max)	Coil Width	Foot (W x D x L)
HCGV-2.5-24	2.5-ton	16/24 in.	20 in.	5 x 0.75 x 15.5 in.
HCGV-5-24	5-ton	16/24 in.	24 in.	6 x 1 x 15.5 in.
HCGV-7.5-24	7.5-ton	16/24 in.	24 in.	6 x 1 x 15.5 in.
HCGV-10-24	10-ton	16/24 in.	30 in.	6 x 1.5 x 15.5 in.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

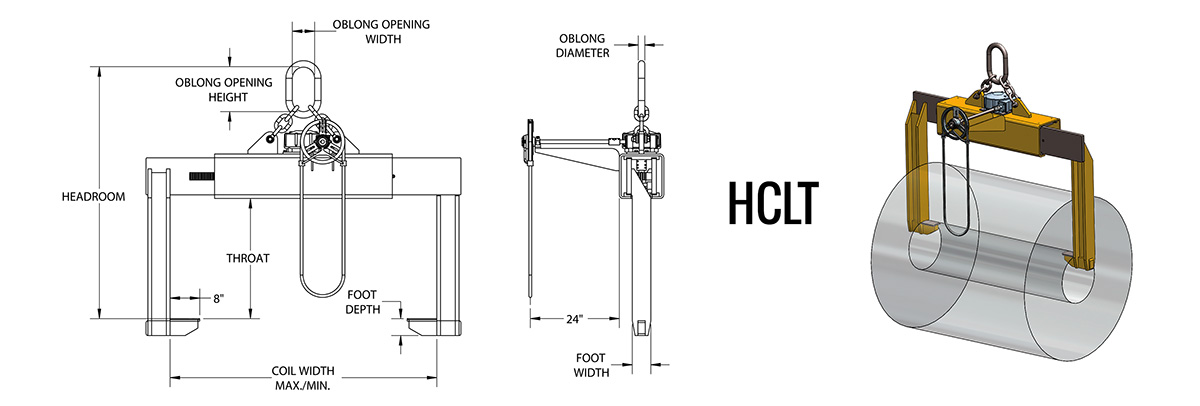

HCLT - Coil Lifter Telescopic Two-Sided

• Designed to efficiently handle coils with the inside diameter.
• The manual adjusting legs adjust to the I.D. of the coil with the standard chain wheel or an optional motorized leg drive and require less aisle space for operation.
• The self-locking gear drive prevents the inadvertent opening of the legs and curved foot pad minimizes coil damage.
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• 100% of ALL Harrington Lifting Beams are proof-tested to 125% capacity and certificates supplied at no additional charge.
• Made in USA.
• Options: Higher capacities, Additional lengths, Motorized leg drive, Protective padding, Parking stands.

Coil Lifter Telescopic Two-Sided Dimensions (Inches)
Model No.	Capacity	Coil Width (min/max)	Throat Ht.
HCLT-5-48	5-ton	16/48 in.	26 in.
HCLT-5-60	5-ton	20/60 in.	28 in.
HCLT-10-48	10-ton	16/48 in.	30 in.
HCLT-10-60	10-ton	20/60 in.	32 in.
HCLT-15-60	15-ton	20/60 in.	32 in.
HCLT-15-72	15-ton	24/72 in.	34 in.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.

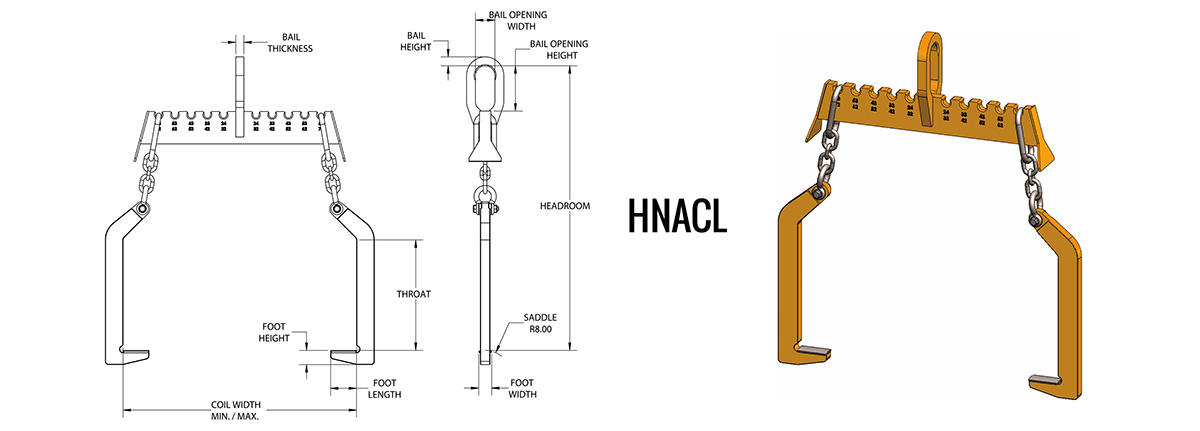

HNACL - Narrow Arm Coil Lifter

• Designed to efficiently handle coils with the inside diameter.
• The manual adjusting hooks easily adjust to the length of the coil and require less aisle space for operation.
• Supplied with standard plate style hooks with rounded corners to minimize coil damage. (Round bar hooks can be supplied as an option).
• Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2.
• 100% of ALL Harrington Lifting Beams are proof-tested to 125% capacity and certificates supplied at no additional charge.
• Made in USA.
• Options: Higher capacities, Additional lengths, Round bar legs, Protective padding, Parking stands.

Narrow Arm Coil Lifter Dimensions (Inches)
Model No.	Capacity	Coil Width (min/max)	Throat Ht.
HNACL-10-48	10-ton	20/48 in.	24 in.
HNACL-15-48	15-ton	20/48 in.	28 in.
HNACL-20-60	20-ton	24/60 in.	30 in.
HNACL-25-60	25-ton	24/60 in.	34 in.
HNACL-30-72	30-ton	24/72 in.	34 in.
Custom models or adjustments available upon request. Call (314) 869-7200 or Email for more information.
