Harrington Narrow Coil Lifter, 1 Ton Capacity, 16 in. Coil Width, HCLNC-1-16

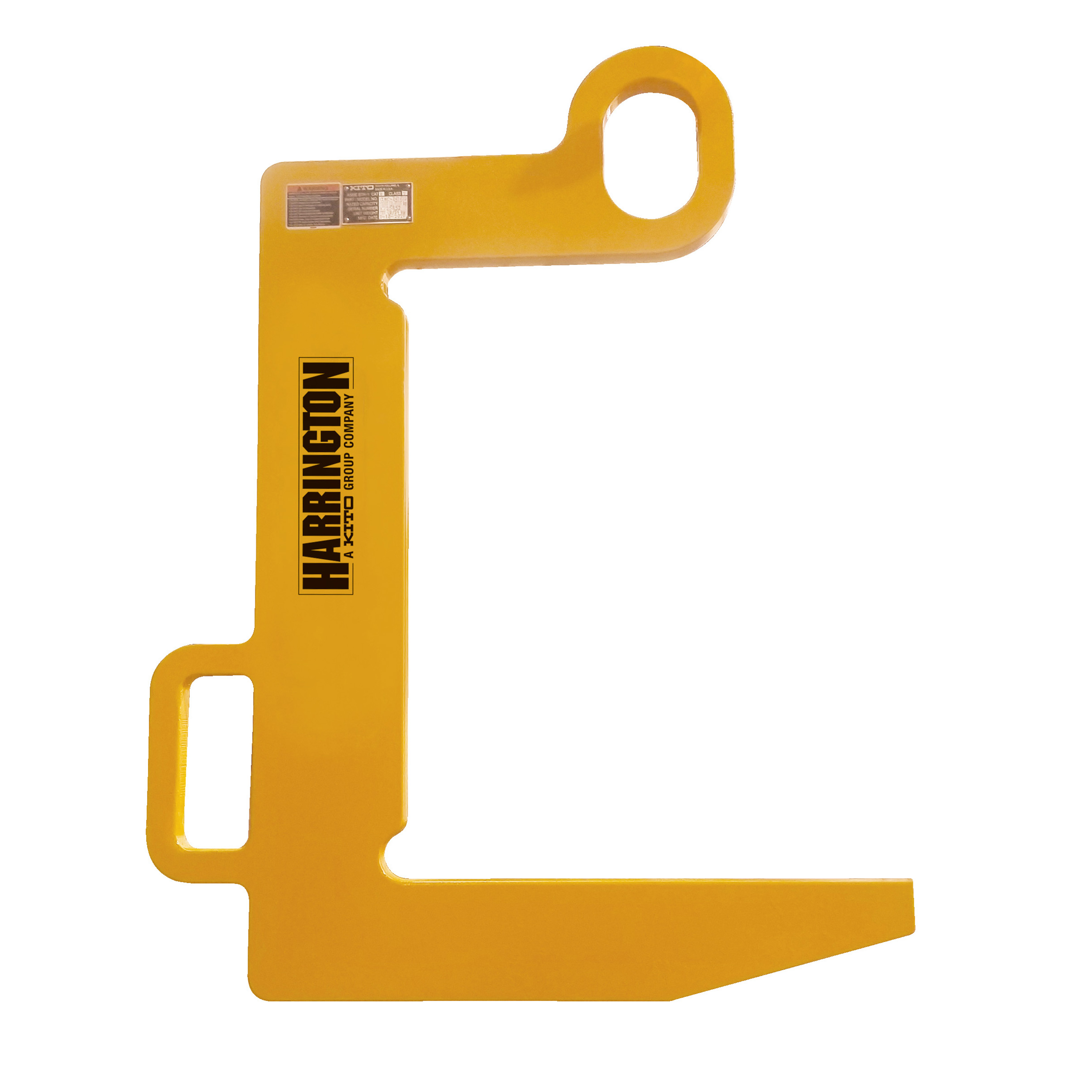

The Harrington HCLNC Narrow Coil Lifter easily lifts and positions narrow coils. This below-the-hook lifter features a C-hook design for secure placement within the coil's inner diameter.
Availability: In stock
SKU: HCLNC-1-16
Manufacturer part number: HCLNC-1-16
Lead Time (subject to change, call to verify): typically ships in 5-7 business days
*
*
$787.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Model Number: HCLNC-1-16
  • Capacity: 1 Ton / 907.18 kg
  • Coil Width (Max): 16 in. / 406.4 mm

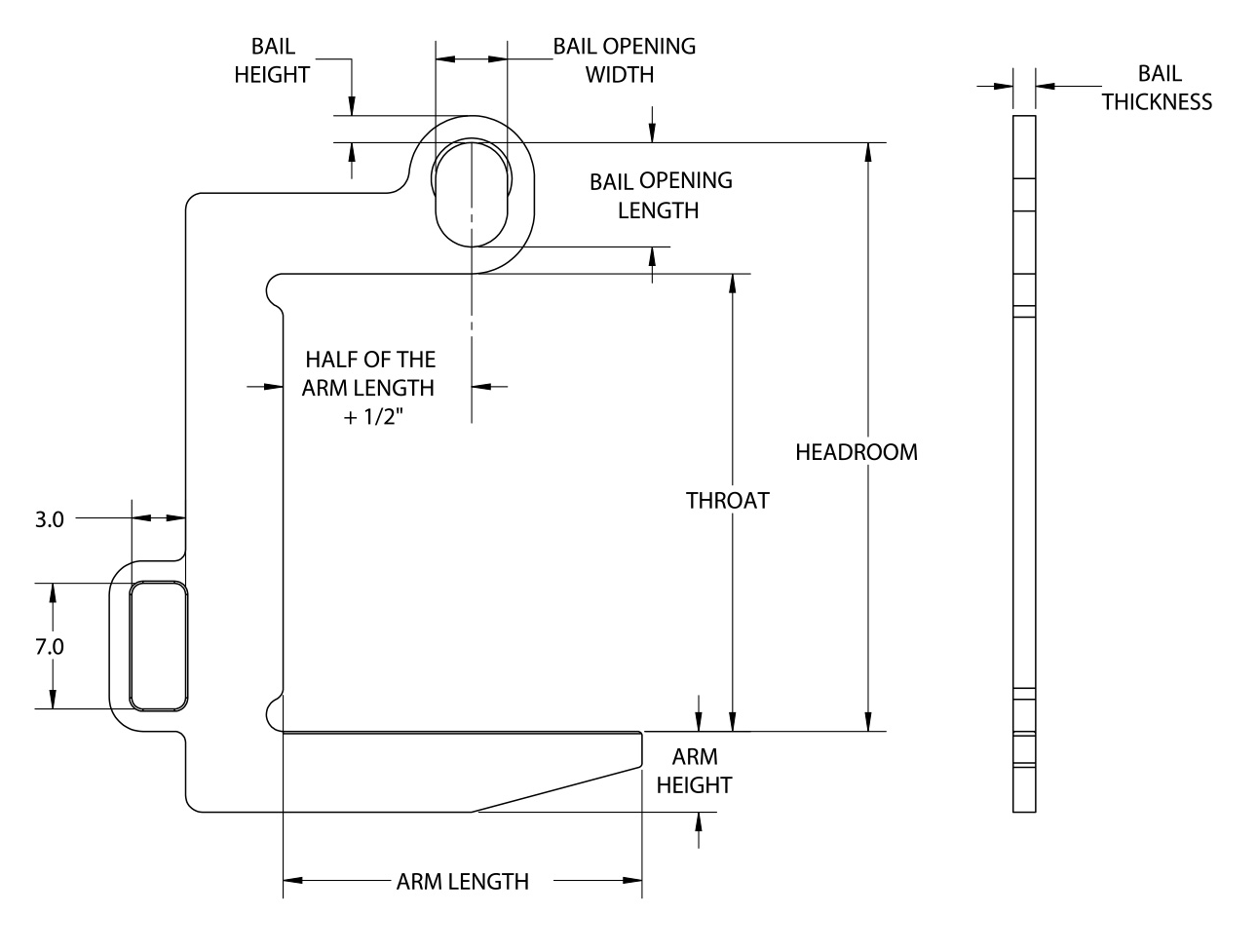

  • Headroom: 21.6 in. / 548.6 mm
  • Throat Opening: 17.5 in. / 444.5 mm
  • Lift Arm Dimensions
    • Length: 16 in. / 406.4 mm
    • Height: 3 in. / 76.2 mm
  • Bail Dimensions
    • Bail Height: 0.81 in. / 20.6 mm
    • Bail Opening Width: 2 in. / 50.8 mm
    • Bail Opening Height: 3.25 in. / 82.6 mm
    • Bail Thickness: 0.5 in. / 12.7 mm
  • Weight: 22 lbs. / 9.98 kg
  • Designed to easily lift and position narrow coils by placing the lifting arm securely through the I.D. of the coil.
  • Supplied with standard lifter guide handle.
  • Radius on lifting arm to minimize coil damage.
  • Options: Higher capacities, Additional lengths, Larger throat opening, Protective padding, Coil retainer cap, Parking stands.
Standards/Approvals
  • ASME B30.20 & ASME BTH-1 Design Category B Service Class 2
  • Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of OriginMade in the USA
