Harrington Narrow Coil Lifter, 5 Ton Capacity, 20 in. Coil Width, HCLNC-5-20

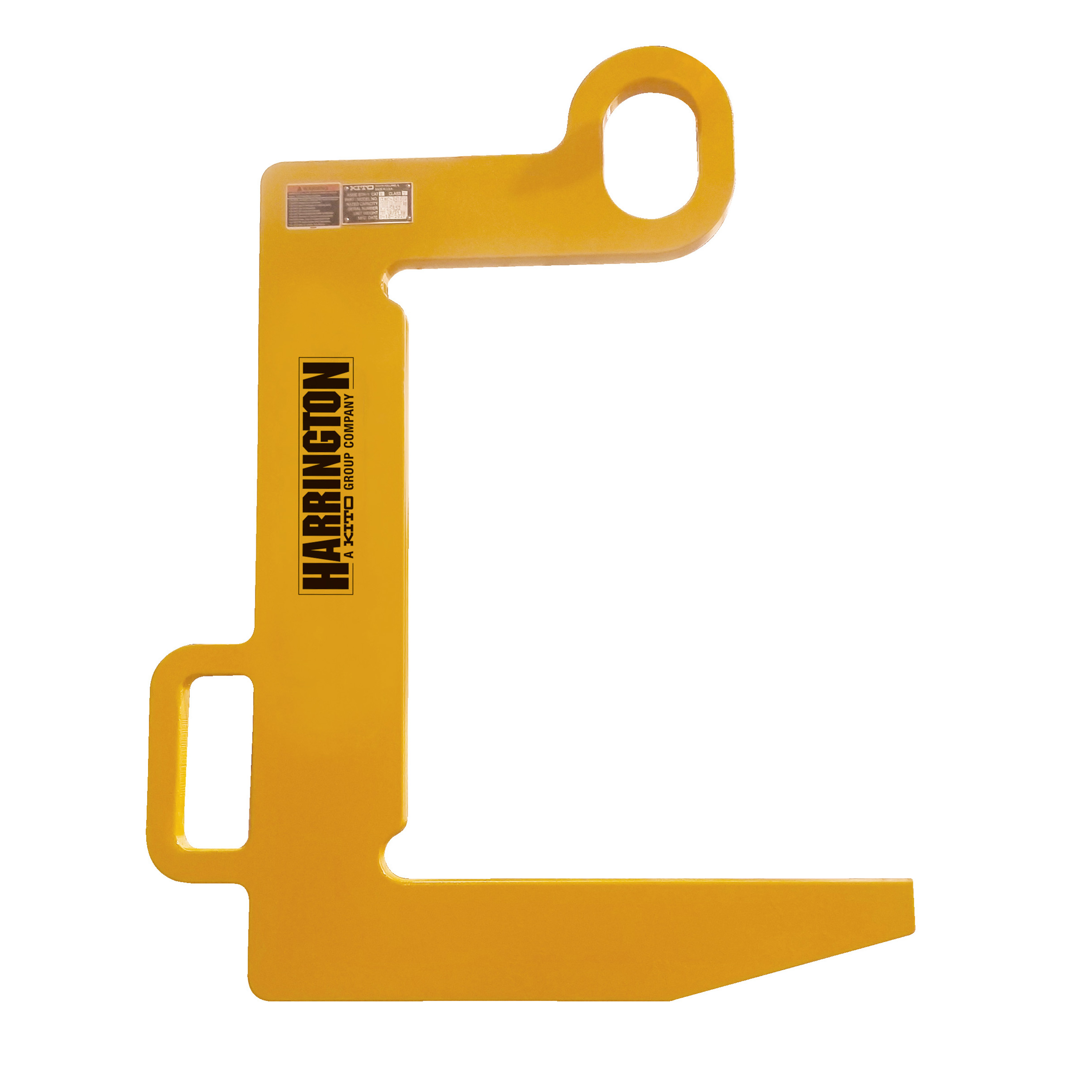

The Harrington HCLNC Narrow Coil Lifter easily lifts and positions narrow coils. This below-the-hook lifter features a C-hook design for secure placement within the coil's inner diameter.
Availability: In stock
SKU: HCLNC-5-20
Manufacturer part number: HCLNC-5-20
Lead Time (subject to change, call to verify): typically ships in 5-7 business days
*
*
$1,382.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Model Number: HCLNC-5-20
  • Capacity: 5 Ton / 4535.92 kg
  • Coil Width (Max): 20 in. / 508.0 mm
  • Headroom: 33 in. / 838.2 mm
  • Throat Opening: 25.5 in. / 647.7 mm

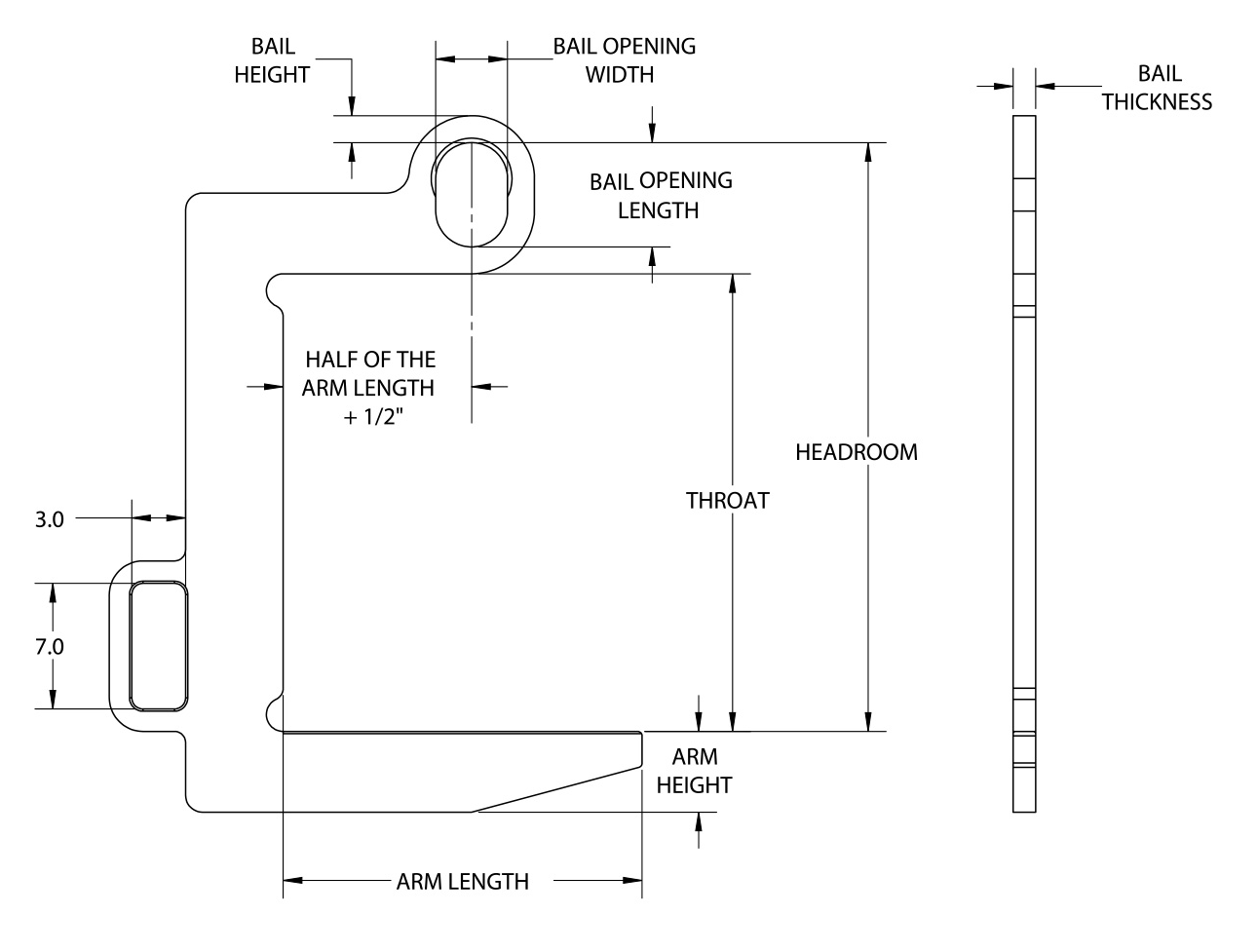

  • Lift Arm Dimensions
    • Length: 20 in. / 508.0 mm
    • Height: 4.5 in. / 114.3 mm
  • Bail Dimensions
    • Bail Height: 1.5 in. / 38.1 mm
    • Bail Opening Width: 4 in. / 101.6 mm
    • Bail Opening Height: 6 in. / 152.4 mm
    • Bail Thickness: 1.25 in. / 31.75 mm
  • Weight: 121 lbs. / 54.88 kg
  • Designed to easily lift and position narrow coils by placing the lifting arm securely through the I.D. of the coil.
  • Supplied with standard lifter guide handle.
  • Radius on lifting arm to minimize coil damage.
  • Options: Higher capacities, Additional lengths, Larger throat opening, Protective padding, Coil retainer cap, Parking stands.
Standards/Approvals
  • ASME B30.20 & ASME BTH-1 Design Category B Service Class 2
  • Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of OriginMade in the USA
