Harrington Narrow Coil Lifter, 2 Ton Capacity, 16 in. Coil Width, HCLNC-2-16

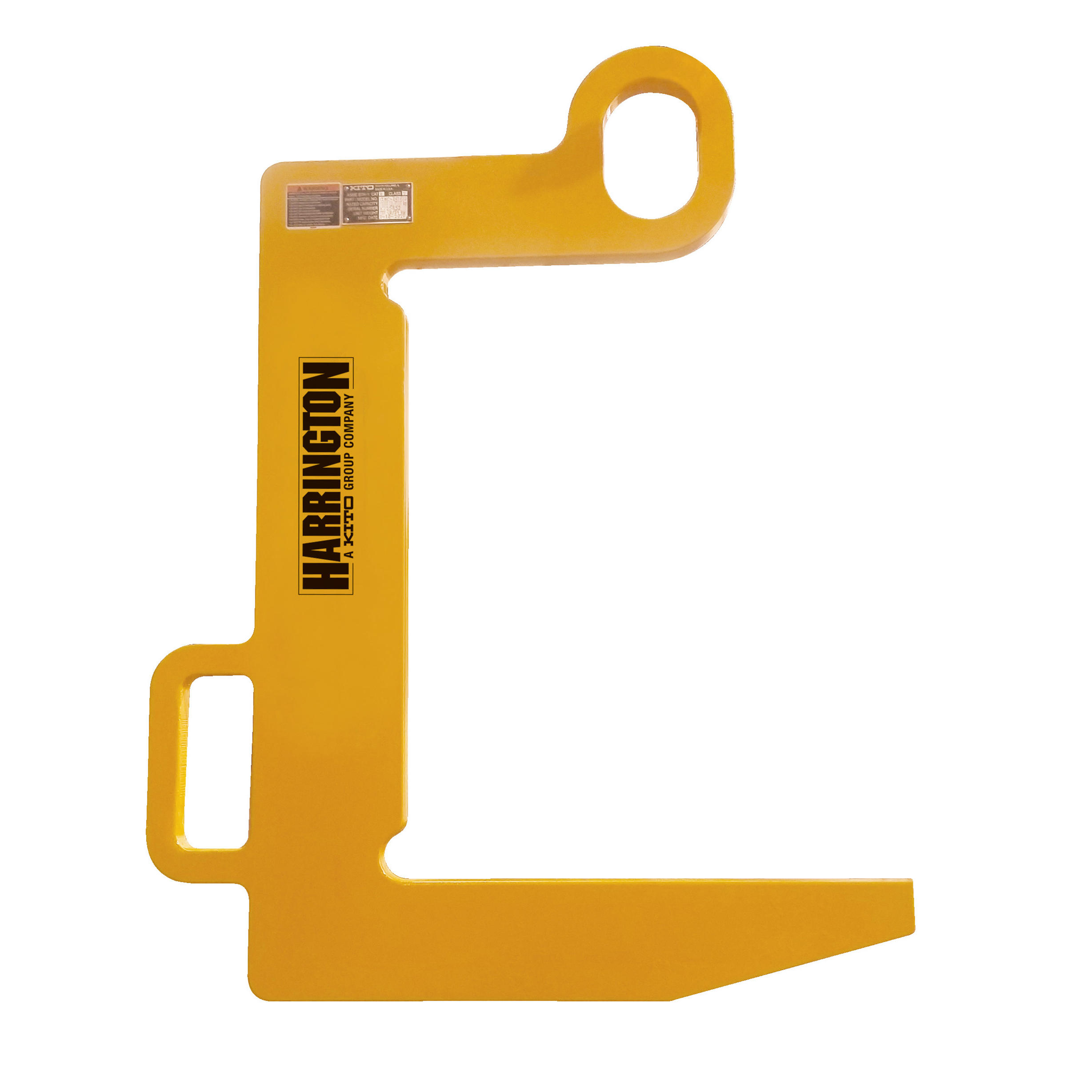

The Harrington HCLNC Narrow Coil Lifter easily lifts and positions narrow coils. This below-the-hook lifter features a C-hook design for secure placement within the coil's inner diameter.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HCLNC-2-16

Manufacturer part number: HCLNC-2-16

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

$1,107.12

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Coil Lifter Brochure

Product Specifications

Attribute name	Attribute value

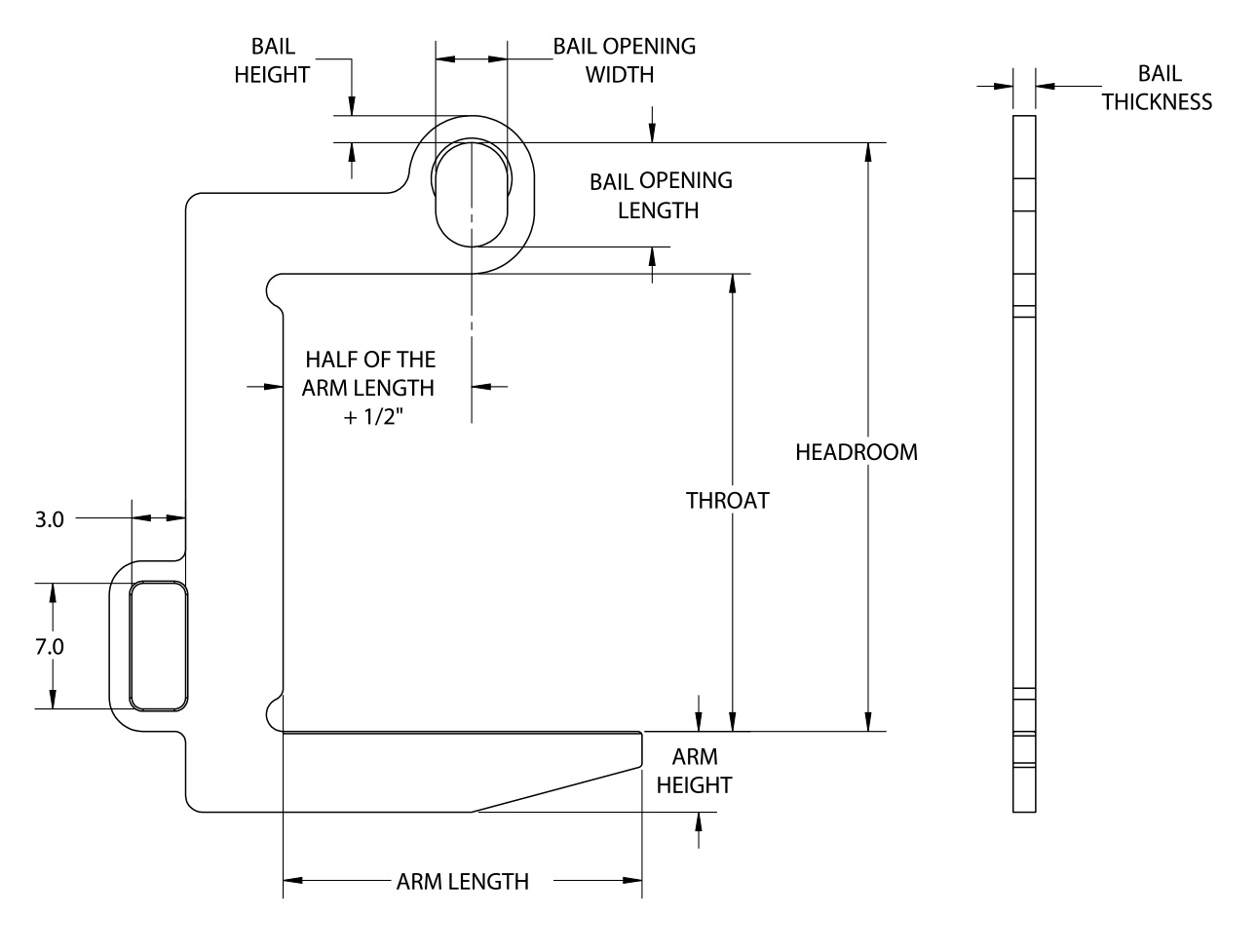

Features	Model Number: HCLNC-2-16 Capacity: 2 Ton / 1814.36 kg Coil Width (Max): 16 in. / 406.4 mm Headroom: 24.5 in. / 622.3 mm Throat Opening: 19.5 in. / 495.3 mm Lift Arm Dimensions Length: 16 in. / 406.4 mm Height: 3.25 in. / 82.6 mm Bail Dimensions Bail Height: 1 in. / 25.4 mm Bail Opening Width: 2.63 in. / 66.8 mm Bail Opening Height: 4 in. / 101.6 mm Bail Thickness: 0.75 in. / 19.1 mm Weight: 41 lbs. / 18.60 kg Designed to easily lift and position narrow coils by placing the lifting arm securely through the I.D. of the coil. Supplied with standard lifter guide handle. Radius on lifting arm to minimize coil damage. Options: Higher capacities, Additional lengths, Larger throat opening, Protective padding, Coil retainer cap, Parking stands.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
