Harrington Telescoping Fork Truck Boom, 2 Ton Capacity, HTB-40

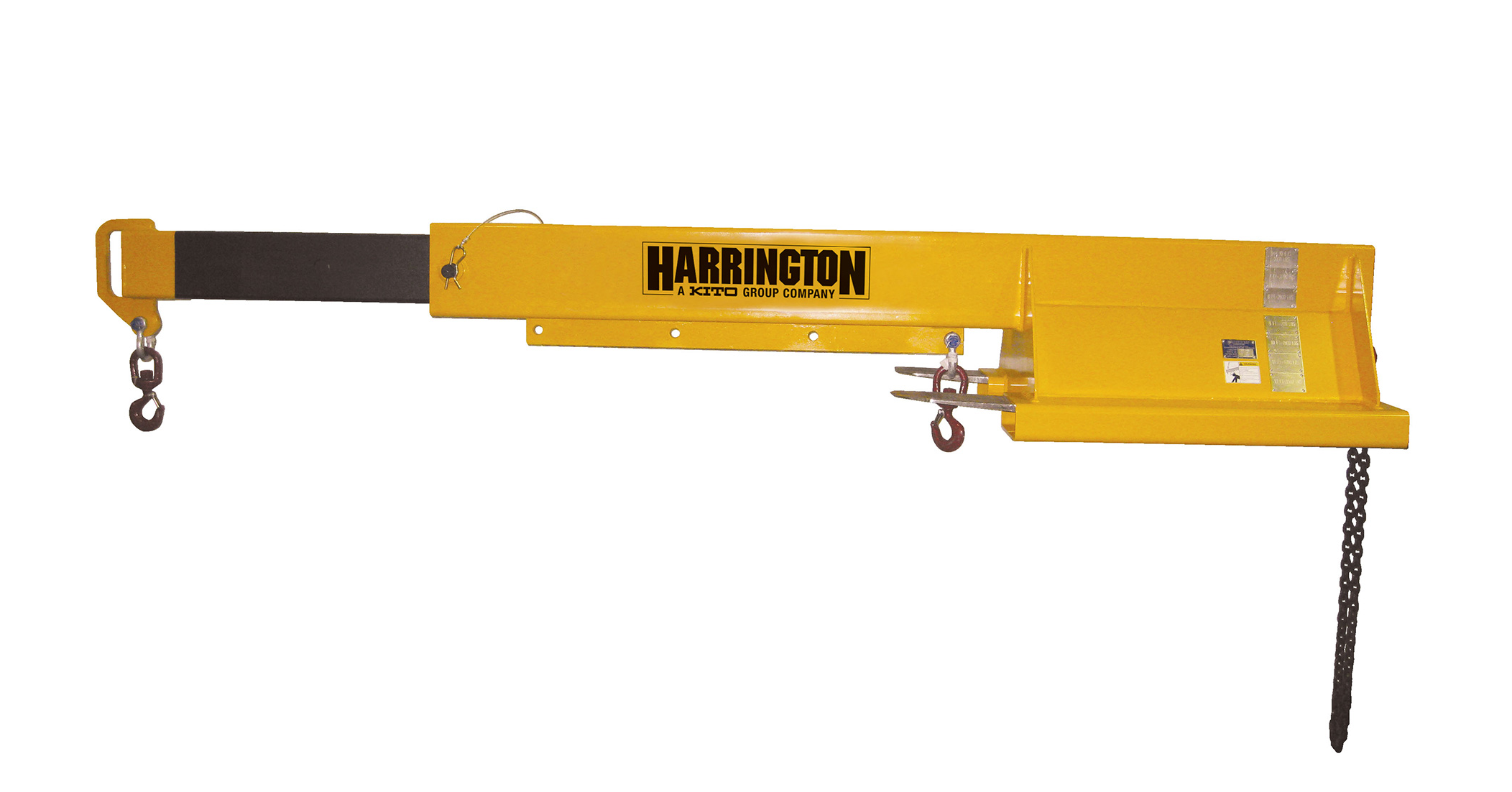

The Harrington HTB Telescoping Fork Truck Boom is a forklift attachment that features a telescopic boom that can extend up to 12 feet and transform your forklift into a mobile crane.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HTB-40

Manufacturer part number: HTB-40

Lead Time (subject to change, call to verify): typically ships in 30-35 business days

Includes *

Standard swivel or fixed hooks
Standard restraining chain with grab hook
Attached handle for ease of boom extension

Options (Call for Quote - 314-869-7200)

Additional capacities
Additional sizes

$5,040.99

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Fork Truck Attachments Brochure

Product Specifications

Attribute name	Attribute value

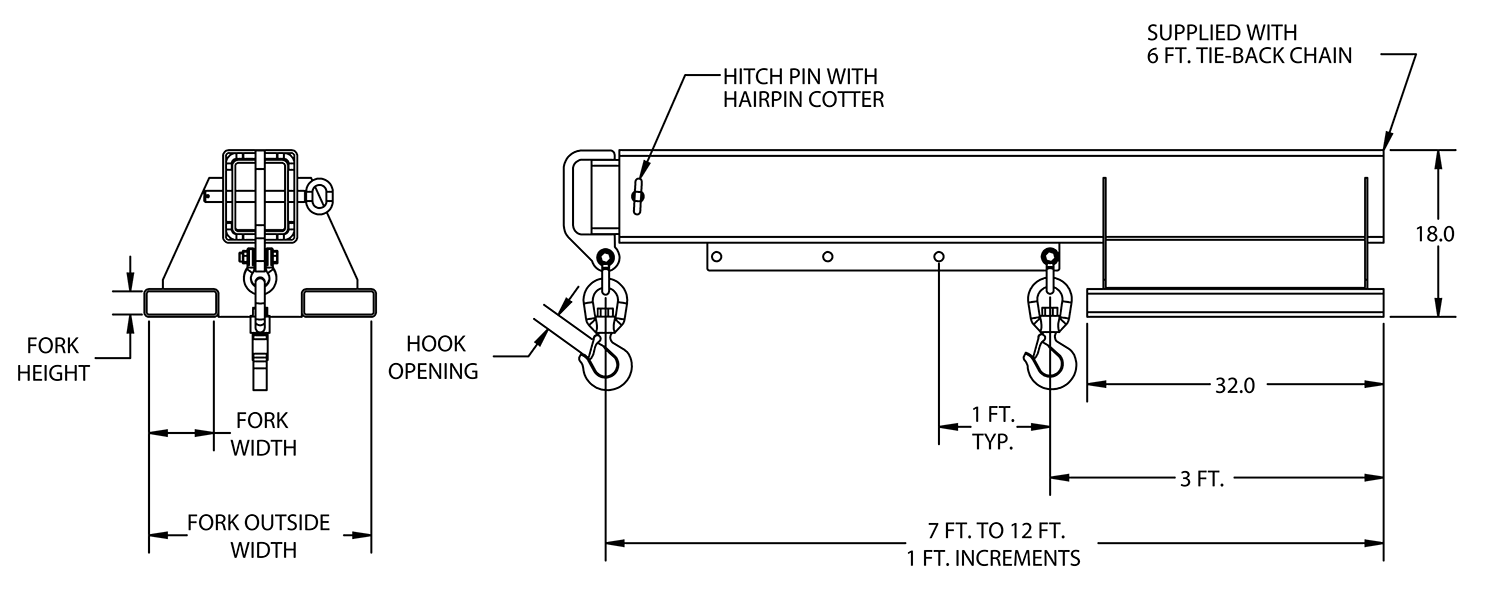

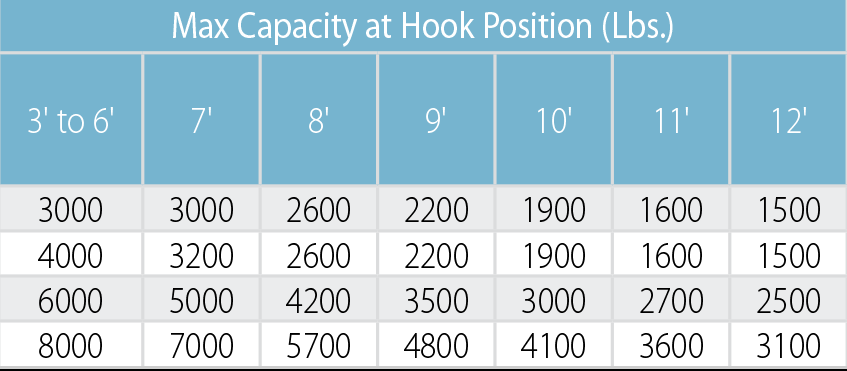

Features	Model Number: HTB-40 Capacity: 2 Ton / 1814.369 kg Fork Dimensions Fork Width: 7 in. / 177.8 mm Fork Height: 2.5 in. / 63.5 mm Outside Fork Width: 22 in. / 558.8 mm Headroom: 18 in. / 457.2 mm Hook Opening: 1.09 in. / 27.686 mm Max Capacity at Hook Position: 3 to 6 ft: 4,000 lbs. / 1814.37 kg 7 ft: 3,200 lbs. / 1451.49 kg 8 ft: 2,600 lbs. / 1179.34 kg 9 ft: 2,200 lbs. / 997.9 kg 10 ft: 1,900 lbs. / 861.83 kg 11 ft: 1,600 lbs. / 725.75 kg 12 ft: 1,500 lbs. / 680.39 kg Weight: 490 lbs. / 222.3 kg The HTB Telescoping Fork Truck Boom is ideal for lifting and carrying loads with a telescopic boom attached to a fork truck that can extend to 12 feet. This style of fork truck attachment is designed to efficiently lift and carry loads with a telescoping boom with locking pin allowing for multiple hook positions. 12 feet maximum boom reach and supplied with a pair of standard swivel or fixed hooks. Standard restraining chain with grab hook and attached handle for ease of boom extension. Options: Additional sizes and capacities available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
