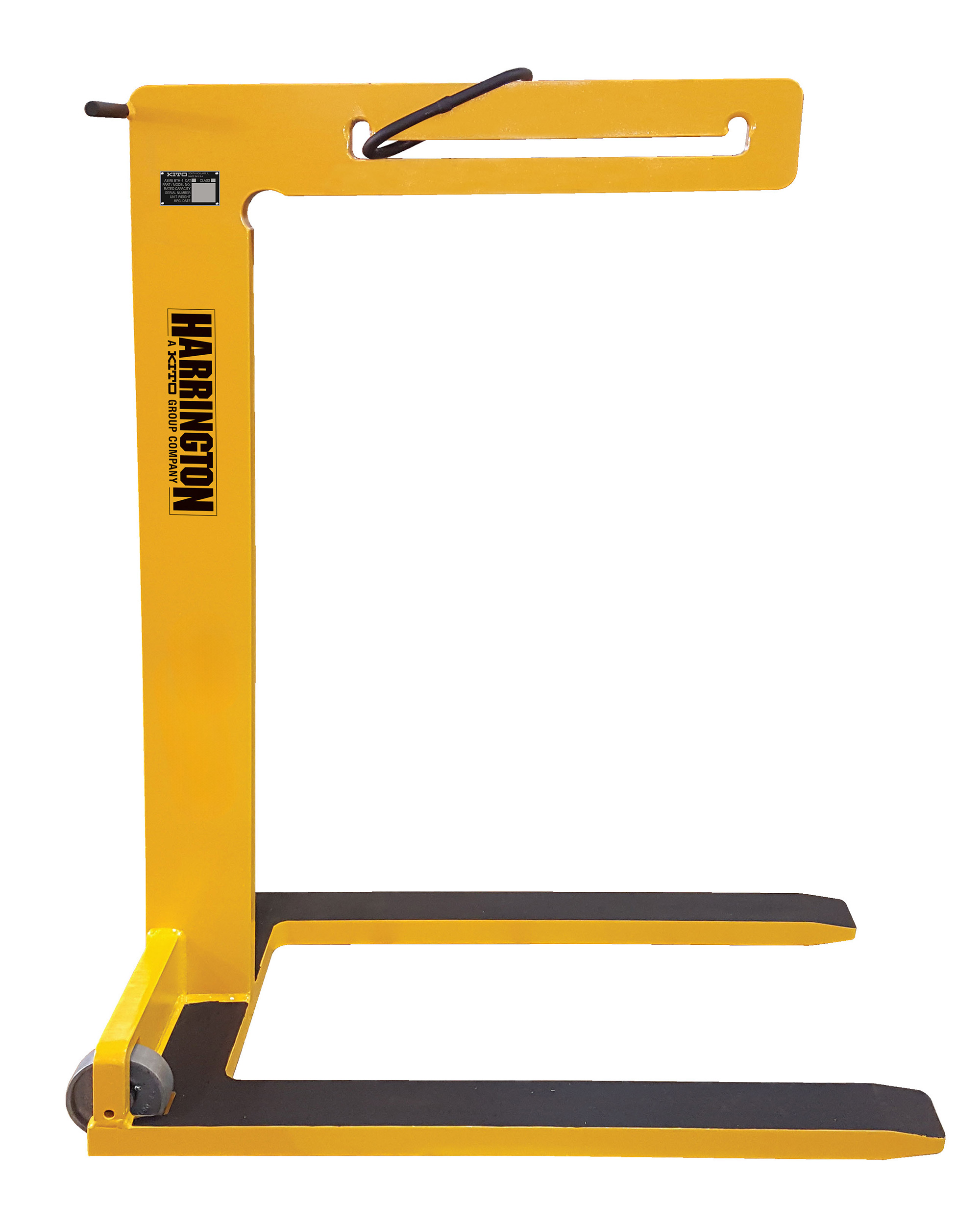

Harrington Wheeled Pallet Lifter, 2 Ton Capacity, 36 in. Fork Length, HPLWL-2-48

The Harrington HPLWL Wheeled Pallet Lifter features a wheeled design that allows for ease of movement to the load and dual lift points allow the lifter to hang level when unloaded.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HPLWL-2-48

Manufacturer part number: HPLWL-2-48

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Fork Length *

36 in. / 914.4 mm

Outside Fork Width *

25 in. / 635 mm

Options (Call for Quote - 314-869-7200)

$6,073.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Hoist Mounted Pallet Lifters Brochure

Product Specifications

Attribute name	Attribute value

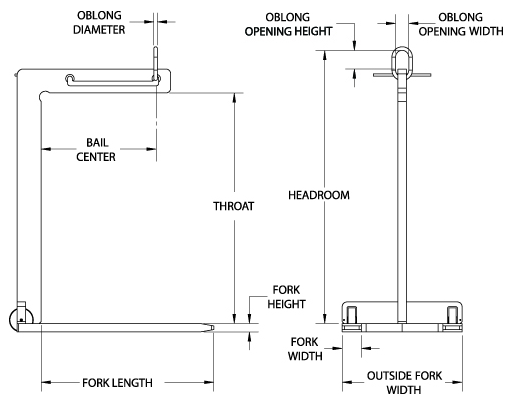

Features	Model Number: HPLWL-2-48 Capacity: 2 Ton / 1814.37 kg Fork Dimensions Fork Length: 36 in. / 914.4 mm Fork Width: 4 in. / 101.6 mm Fork Height: 1.75 in. / 44.45 mm Outside Fork Width: 25 in. / 635 mm Headroom Dimensions Throat Opening Height: 48 in. / 1219.2 mm Max. Headroom: 57 in. / 1447.8 mm Oblong Master Link Dimensions Oblong ML Diameter: .63 in. / 16.002 mm Oblong ML Opening Width: 3 in. / 76.2 mm Oblong ML Opening Height: 6 in. / 152.4 mm Bail Center: 24 in. / 609.6 mm Weight: 435 lbs. / 197.31 kg Designed to lift and carry palletized loads efficiently with an overhead crane. Wheeled design allows for ease of movement to the load and dual lift points allow the lifter to hang level when unloaded. Easily maintained low headroom design. NOTE: Additional 2"-3" clearance is recommended above the load for ease of loading and unloading the pallet lifter. Options: Larger throat openings, Greater outside fork widths, Additional sizes and capacities available, Replacement wheel kits are available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
