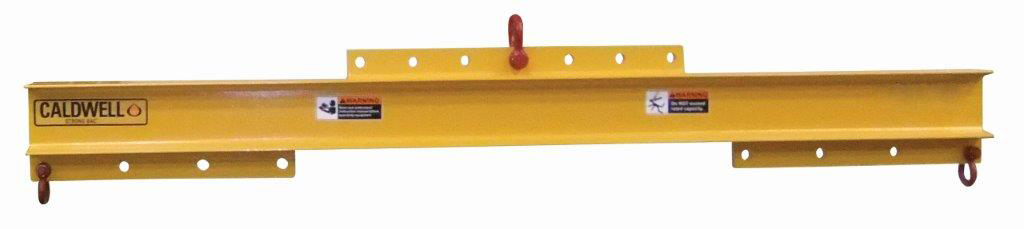

1/4 Ton Adjustable Lifting & Spreader Beam, Spread 1 ft - 4 ft

High quality adjustable beam designed by the Caldwell Group for lifting beam and spreader beam applications. All lifting and spreader beams are engineered and manufactured to ASME B30.20, ASTM & OSHA standards.

Manufacturer: Caldwell

Availability: In stock

SKU: 16-1/4-4

Manufacturer part number: 16-1/4-4

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Spread Min-Max *

1 ft. - 4 ft. (0.305 m - 1.22 m)

Options

(2) Swivel Hooks
Top Chain Rigging

Call for Price - (314) 869-7200

Qty:

Documents, Drawings, and Manuals

Specs

Caldwell Model 16 Lifting & Spreader Beam Specs

Product Specifications

Attribute name	Attribute value
Features	Manufacturer's Part Number: 16-1/4-4 Manufacturer's Model: Model 16 Capacity: 1/4 Ton / 226.70 kg Spread Min-Max: 1 ft.- 4 ft. (non-standard spreads available upon request) Standards: All Caldwell below the hook lifters meet or exceed all ASME, OSHA, & ASTM standards Standard Product Features: Model 16 adjustable lifting & spreader beams are equipped with standard top and bottom shackles. Model 16 lifting & spreader beams feature adjustable top and bottom lifting points, allowing model 16 beams to be used as both a lifting beam and a spreader beam. These adjustable points also allow model 16 beams to handle wide and unbalanced loads with ease. Optional Product Features Available upon request: Pair of Swivel Hooks Chain Top Rigging Extra hooks Cross Beams - Allowing model 16 beams to be used for 3-point & 4-point lifts
Country of Origin	Made in the USA
