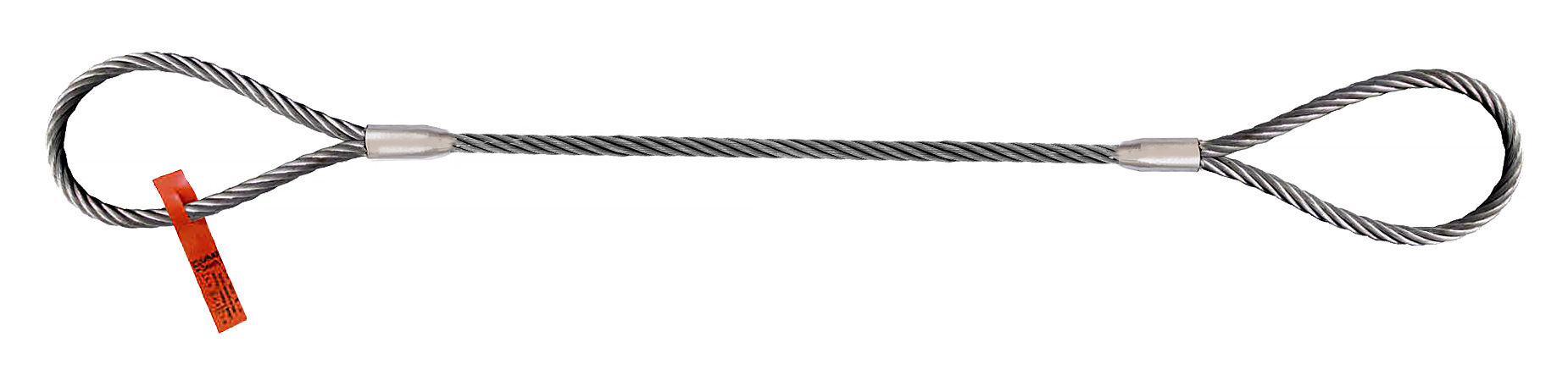

Lift-All Wire Rope Sling, Domestic, Eye/Eye, Vertical Cap. 2,800 lbs., Dia. 3/8 in., Part No. 38EE

Manufacturer: Lift All

Availability: In stock

SKU: 38EE

Manufacturer part number: 38EE

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Length *

$42.14

Qty:

Documents, Drawings, and Manuals

Brochure

Lift-All Wire Rope Sling Brochure

Product Specifications

Attribute name	Attribute value
Features	Sling Type: Eye/Eye Wire Rope Class: 6X19 EIPS (Extra Improved Plow Steel) IWRC (Independent Wire Rope Core) Rope Diameter: 3/8 in. Standard Eye Size: 3 x 6 in. Rated Capacity: Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°. Vertical: 2,800 lbs. Choker: 2,200 lbs. Vertical Basket: 5,800 lbs. Wire rope slings are both flexible and resistant to abrasion. Least expensive (per capacity), of all steel slings. Independent Wire Rope Core (IWRC) resists crushing better than Fiber Core (FC) ropes. Use of Extra Improved Plow Steel (EIPS) IWRC rope gives 15% greater capacity than Improved Plow IWRC ropes. Countless combinations of sling terminations: hooks, chokers, and thimbles are available to fit specific lift requirements. Damage to slings can occur if the wrong size pin or hook is used. The width of the hook should never exceed the natural inside width of the eye. Made using the flemish splice technique to form the eyes. Unlike the simple return loop method that places 100% of its strength on the swaged sleeve, Permaloc slings have reserve strength should the sleeve become damaged in use. Reserve strength: Integrity of eyes not solely dependent upon steel sleeves. Good abrasion resistance for longer life. Tuff-Tag for capacity and serial numbered identification for traceability and compliance with OSHA.
Disclaimer	Lift-All Slings are made to order and non-returnable. See full return policy here: TSRE Return Policy
