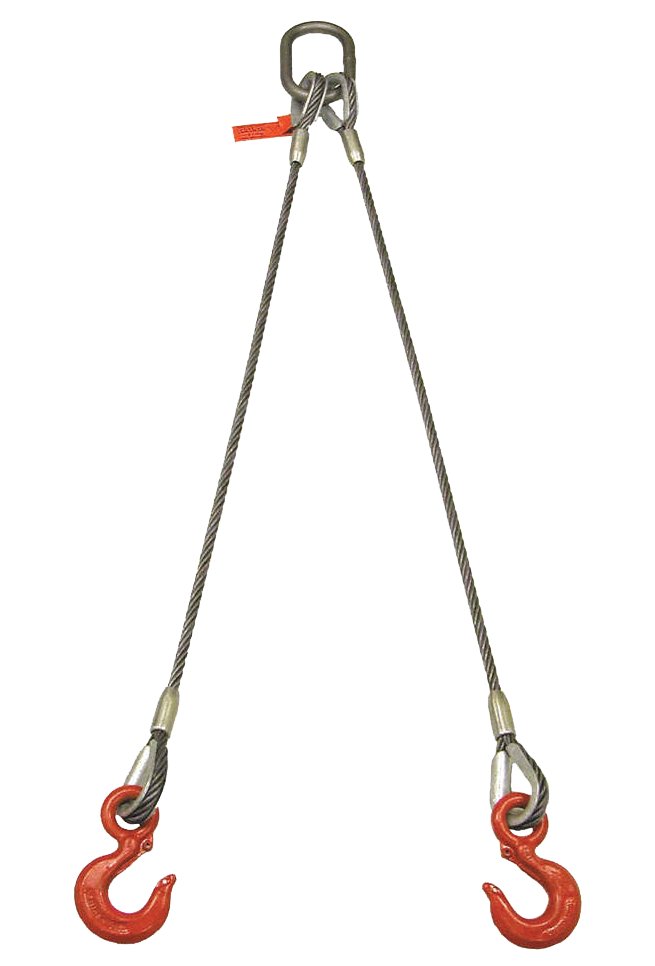

Lift-All Wire Rope Sling, Domestic, 2-Leg Bridle, Dia. 3/8 in., Part No. 382LB

Manufacturer: Lift All

Availability: In stock

SKU: 382LB

Manufacturer part number: 382LB

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Length *

$151.28

Qty:

Documents, Drawings, and Manuals

Brochure

Lift-All Wire Rope Sling Brochure

Product Specifications

Attribute name	Attribute value
Features	Sling Type: 2-Leg Bridle Wire Rope Class: 6X19 EIPS (Extra Improved Plow Steel) IWRC (Independent Wire Rope Core) Rope Diameter: 3/8 in. Oblong Link Stock Diameter: 1/2 in. Eye Hook Capacity: 1-1/2 tons Rated Capacity: Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°. 60°: 5,000 lbs. 45°: 4,000 lbs. 30°: 2,800 lbs. Wire rope slings are both flexible and resistant to abrasion. Least expensive (per capacity), of all steel slings. Independent Wire Rope Core (IWRC) resists crushing better than Fiber Core (FC) ropes. Use of Extra Improved Plow Steel (EIPS) IWRC rope gives 15% greater capacity than Improved Plow IWRC ropes. Countless combinations of sling terminations: hooks, chokers, and thimbles are available to fit specific lift requirements. Damage to slings can occur if the wrong size pin or hook is used. The width of the hook should never exceed the natural inside width of the eye. Good abrasion resistance for longer life. Bridles provide better load control and balance. Alloy steel hardware assures long life. Thimble eyes protect wire rope from wear for increased life. Reduces load damage by using fixed points on load. Easier rigging provided when hooking into fixed lifting points. Tuff-Tag for capacity and serial numbered identification for traceability and compliance with OSHA.
Disclaimer	Lift-All Slings are made to order and non-returnable. See full return policy here: TSRE Return Policy
