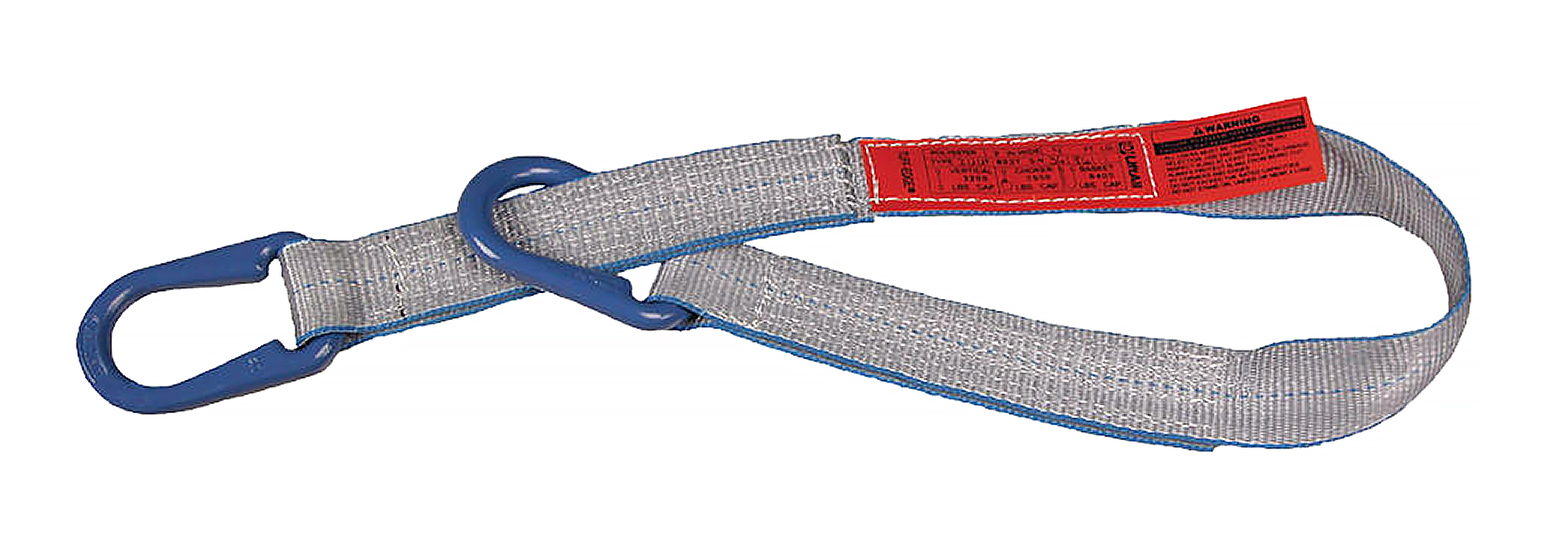

Lift-All Tuff-Edge Web Sling, Unilink, 2-Ply, 2 in. Width, Vertical Cap. 6,400 lbs., Part No. UU2802T

Manufacturer: Lift All

Availability: In stock

SKU: UU2802T

Manufacturer part number: UU2802T

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

$83.31

Qty:

Documents, Drawings, and Manuals

Brochure

Lift-All Web Sling Brochure

Product Specifications

Attribute name	Attribute value
Features	Sling Type: Unilink Each End Number of Plies: 2 Webbing: Tuff-Edge II Thickness: 3/16 in. Width: 2 in. Single-Ply Capacity per in. of Width: 1,600 lbs. Material: Polyester Identifier: Blue center stripe. Blue yarn edge. Silver surface. Rated Capacity: Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°. Vertical: 6,400 lbs. Choker: 5,000 lbs. Vertical Basket: 12,800 lbs. Tuff-Edge II is 2X stronger after abrasion and has 2X better edge cut resistance. For daily use under good to rugged lifting conditions. 2X more cut resistant. Web treatment fights abrasion for additional sling life. Special polymer coated edge yarns reduce edge cutting and abrasion. Red core yarn warning system aids in the inspection process. Tuff-Tag provides serial numbered identification for traceability and required OSHA information for the life of the sling. Lift-All web slings meet or exceed OSHA, ASME B30.9, and WSTDA standards and regulations.
Disclaimer	Lift-All Slings are made to order and non-returnable. See full return policy here: TSRE Return Policy
