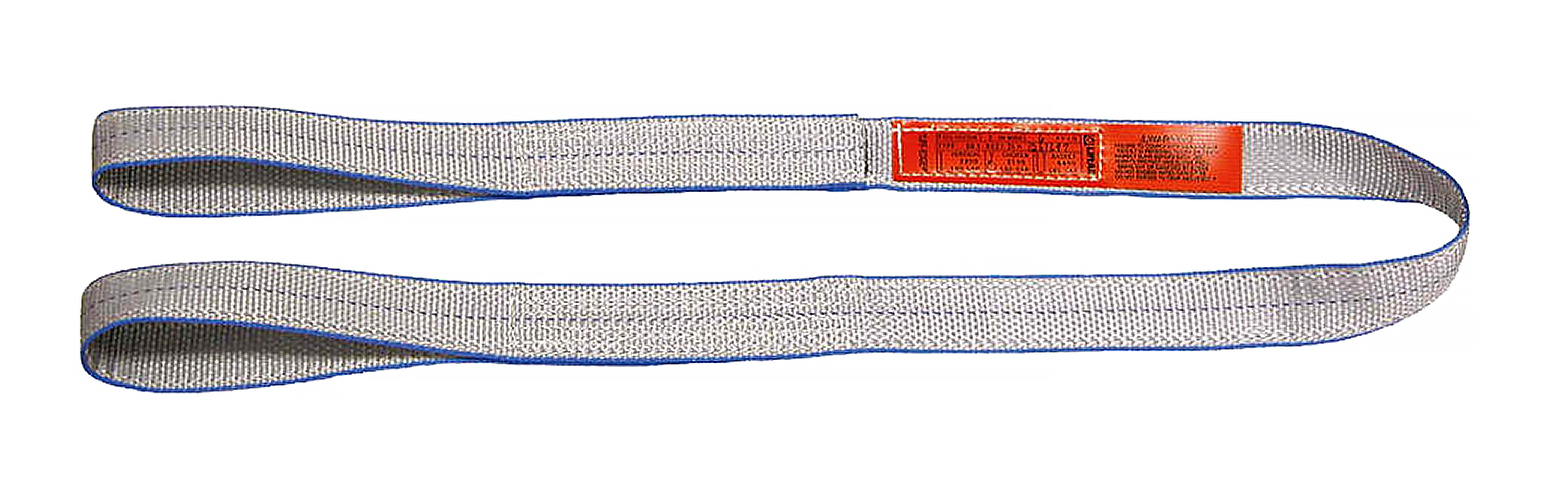

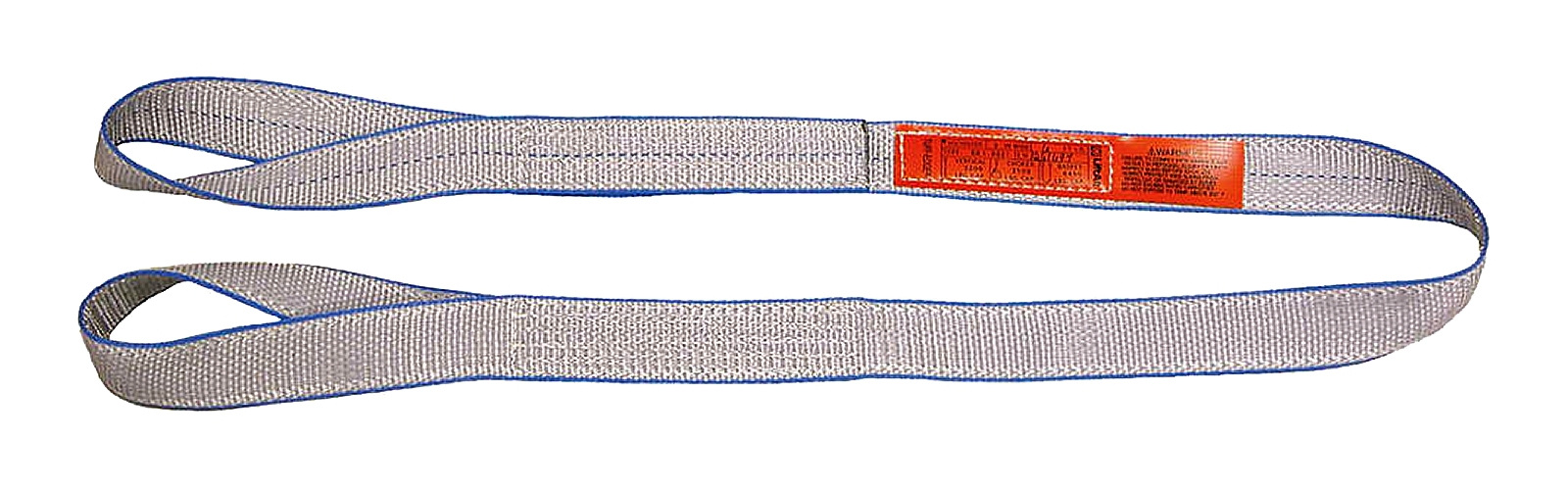

Lift-All Tuff-Edge Web Sling, Eye/Eye, 1-Ply, 4 in. Width, Vertical Cap. 6,400 lbs., Part No. EE1804T

Manufacturer: Lift All
SKU: EE1804T
Manufacturer part number: EE1804T
Lead Time (subject to change, call to verify): typically ships in 3-5 business days
*
*
$79.14
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Sling Type: Eye/Eye
  • Number of Plies: 1
  • Webbing: Tuff-Edge II
    • Thickness: 3/16 in.
    • Width: 4 in.
    • Single-Ply Capacity per in. of Width: 1,600 lbs.
    • Material: Polyester
    • Identifier: Blue center stripe. Blue yarn edge. Silver surface.

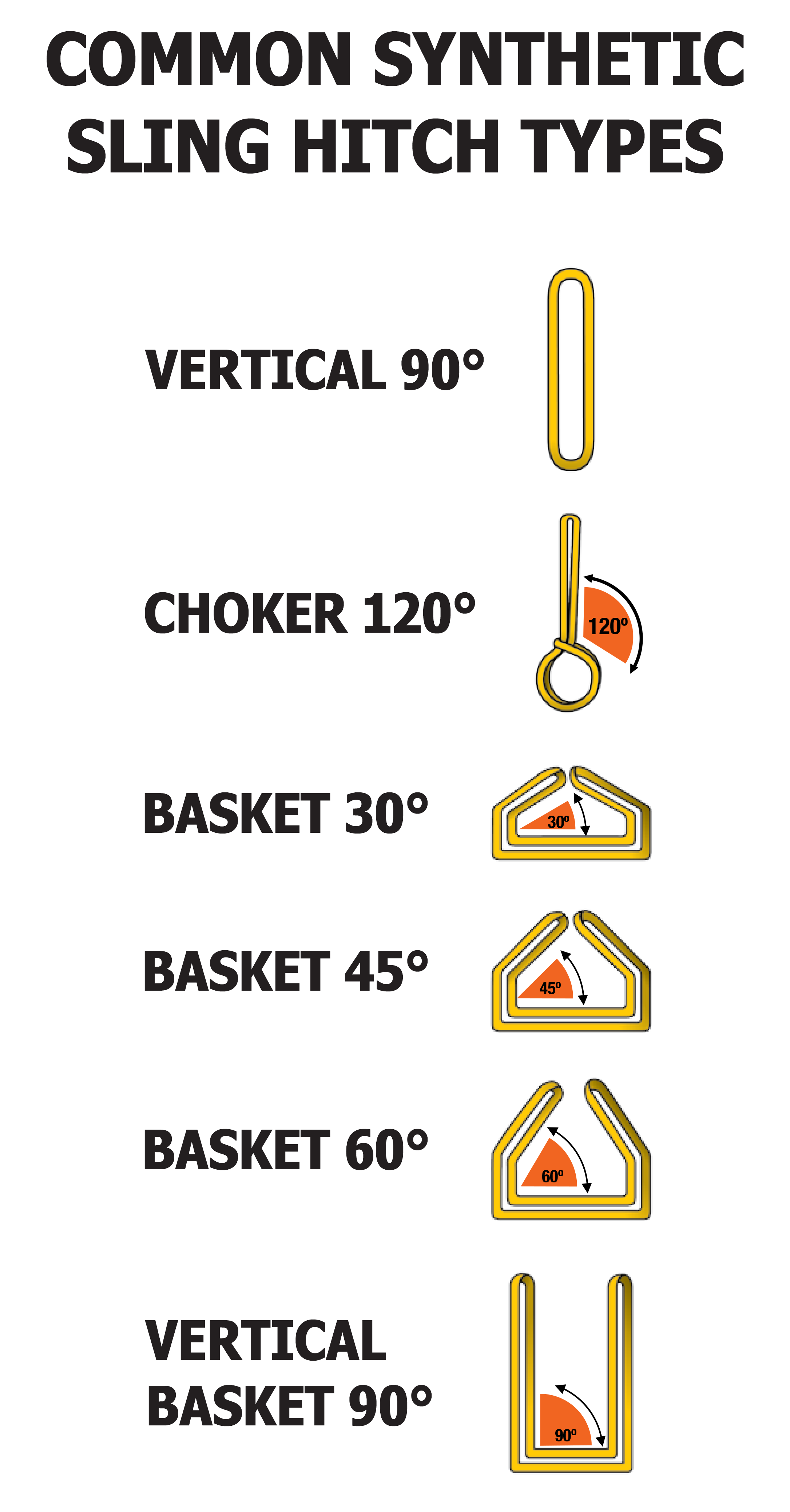

  • Rated Capacity: Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°.
    • Vertical: 6,400 lbs.
    • Choker: 5,000 lbs.
    • Vertical Basket: 12,800 lbs.
  • Tuff-Edge II is 2X stronger after abrasion and has 2X better edge cut resistance.
  • For daily use under good to rugged lifting conditions. 2X more cut resistant.
  • Web treatment fights abrasion for additional sling life.
  • Special polymer coated edge yarns reduce edge cutting and abrasion.
  • Red core yarn warning system aids in the inspection process.
  • Tuff-Tag provides serial numbered identification for traceability and required OSHA information for the life of the sling.
  • Lift-All web slings meet or exceed OSHA, ASME B30.9, and WSTDA standards and regulations.
