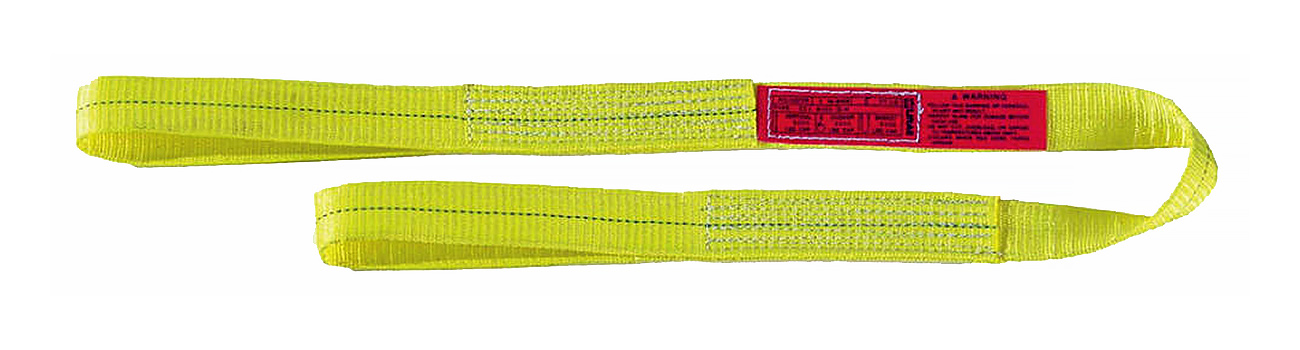

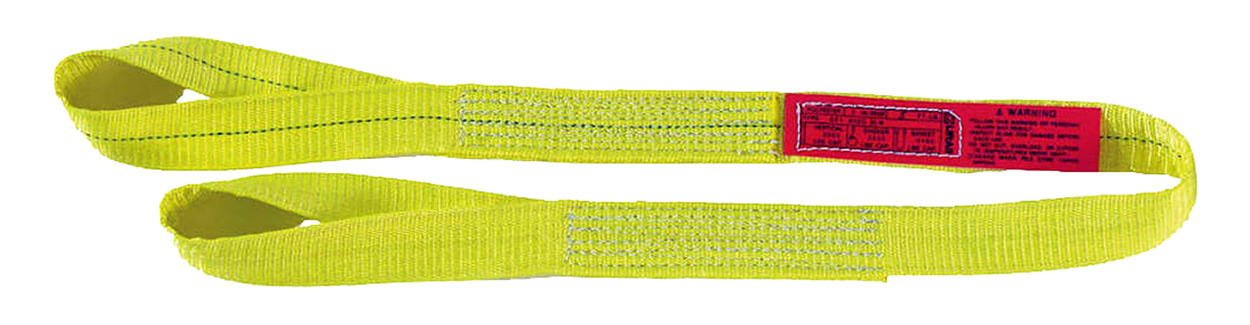

Lift-All Polyester Web Sling, Eye/Eye, 1-Ply, 4 in. Width, Vertical Cap. 6,400 lbs., Part No. EE1804D

Manufacturer: Lift All

Availability: In stock

SKU: EE1804D

Manufacturer part number: EE1804D

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

$80.19

Qty:

Documents, Drawings, and Manuals

Brochure

Lift-All Web Sling Brochure

Product Specifications

Attribute name	Attribute value
Features	Sling Type: Eye/Eye Number of Plies: 1 Webbing: Webmaster 1600 Polyester Thickness: 3/16 in. Width: 4 in. Single-Ply Capacity per in. of Width: 1,600 lbs. Material: Polyester Identifier: Blue center stripe. Rated Capacity: Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°. Vertical: 6,400 lbs. Choker: 5,000 lbs. Vertical Basket: 12,800 lbs. Webmaster 1600 can be designed in many configurations for a wide variety of lifting applications. For daily use under good to moderate lifting conditions. Polyester stretches less for better load control, reduced abrasion. Yellow treatment for abrasion resistance and extended sling life. Red core yarn warning system aids in the inspection process. Tuff-Tag provides serial numbered identification for traceability and required OSHA information for the life of the sling. Lift-All web slings meet or exceed OSHA, ASME B30.9, and WSTDA standards and regulations.
Disclaimer	Lift-All Slings are made to order and non-returnable. See full return policy here: TSRE Return Policy
