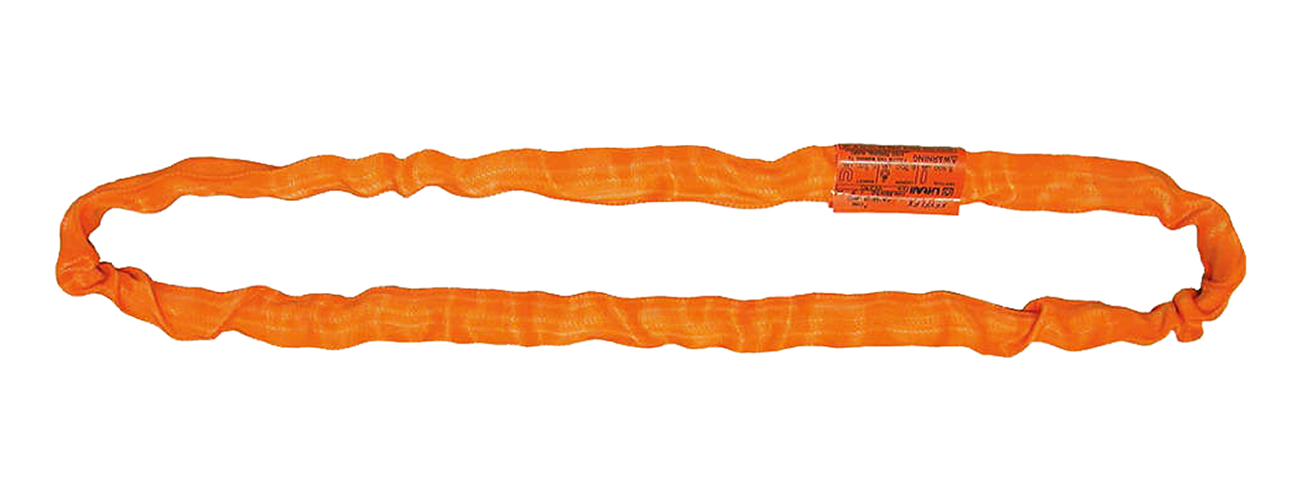

Lift-All KeyFlex Endless Round Sling, Vertical Cap. 20,000 lbs., Part No. KEN20K

Manufacturer: Lift All
Manufacturer part number: KEN20K
Lead Time (subject to change, call to verify): typically ships in 3-5 business days
Ship to
Shipping Method
Estimated Delivery
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
  • Sling Type: Endless Round Sling
  • Body Diameter Relaxed: 1.25 in.
  • Body Width at Load: 2.00 in.
  • Rated Capacity: Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°.
    • Vertical: 20,000 lbs.
    • Choker: 16,000 lbs.
    • Basket @ 90°: 40,000 lbs.
    • Basket @ 45°: 28,000 lbs.
  • KeyFlex round slings share most of the benefits of standard Tuflex round slings.
  • Synthetic materials won’t cut hands.
  • Consistent matched lengths for better multiple sling control.
  • Added security of a double-walled jacket.
  • Conforms to shape of load to grip securely.
  • Tubular jacket protects load bearing yarns from UV degradation.
  • Core yarns provide visual warning of sling damage. KeyFlex orange jacket, Technora gold core yarns.
  • Endless style promotes load stability by spreading sling legs.
  • Independent core yarns choke tightly, but release easily after use.
  • Double wall cover for greater sling life.
  • Soft cover won’t scratch load surface.
  • Conforms to shape of load to reduce load damage.
  • Seamless with no sewn edges, preventing rupture which requires removal from service.
  • Tufhide wear resistant nylon jacket for extra sling life standard on KEN60K and larger sizes.
  • Wear points can be shifted to extend sling life.
  • Endless version is the most versatile style of sling.
  • Lowest weight per capacity reduces risk of injury to riggers.
  • 1% stretch at rated capacity reduces abrasion and allows for better load control.
  • Great for low headroom situations.
  • Aramid load yarns allow sling use up to 350°F versus 200°F for other synthetics.
  • Lightweight and compact size promotes speedier rigging, transport, and storage when compared to any other type of sling.
  • Tuff-Tag provides serial numbered identification for traceability and required OSHA information for the life of the sling.
  • Lift-All round slings meet or exceed OSHA and ASME B30.9 standards and regulations.
