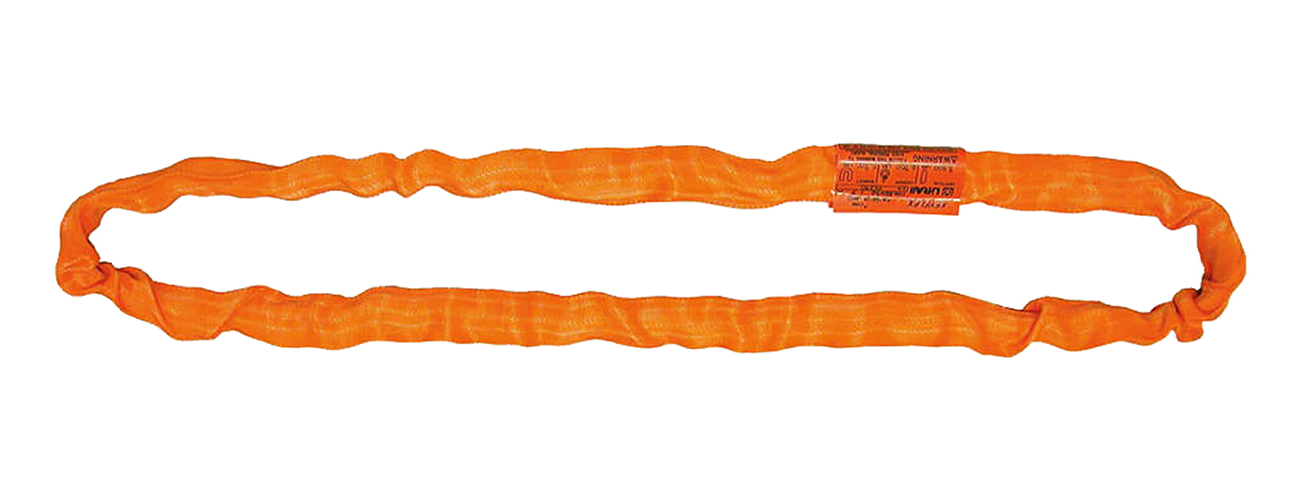

| Features | - Sling Type: Endless Round Sling
- Body Diameter Relaxed: 1.00 in.
- Body Width at Load: 1.56 in.
- Rated Capacity: Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°.
- Vertical: 10,000 lbs.
- Choker: 8,000 lbs.
- Basket @ 90°: 20,000 lbs.
- Basket @ 45°: 14,100 lbs.
- KeyFlex round slings share most of the benefits of standard Tuflex round slings.
- Synthetic materials won’t cut hands.
- Consistent matched lengths for better multiple sling control.
- Added security of a double-walled jacket.
- Conforms to shape of load to grip securely.
- Tubular jacket protects load bearing yarns from UV degradation.
- Core yarns provide visual warning of sling damage. KeyFlex orange jacket, Technora gold core yarns.
- Endless style promotes load stability by spreading sling legs.
- Independent core yarns choke tightly, but release easily after use.
- Double wall cover for greater sling life.
- Soft cover won’t scratch load surface.
- Conforms to shape of load to reduce load damage.
- Seamless with no sewn edges, preventing rupture which requires removal from service.
- Tufhide wear resistant nylon jacket for extra sling life standard on KEN60K and larger sizes.
- Wear points can be shifted to extend sling life.
- Endless version is the most versatile style of sling.
- Lowest weight per capacity reduces risk of injury to riggers.
- 1% stretch at rated capacity reduces abrasion and allows for better load control.
- Great for low headroom situations.
- Aramid load yarns allow sling use up to 350°F versus 200°F for other synthetics.
- Lightweight and compact size promotes speedier rigging, transport, and storage when compared to any other type of sling.
- Tuff-Tag provides serial numbered identification for traceability and required OSHA information for the life of the sling.
- Lift-All round slings meet or exceed OSHA and ASME B30.9 standards and regulations.
|
