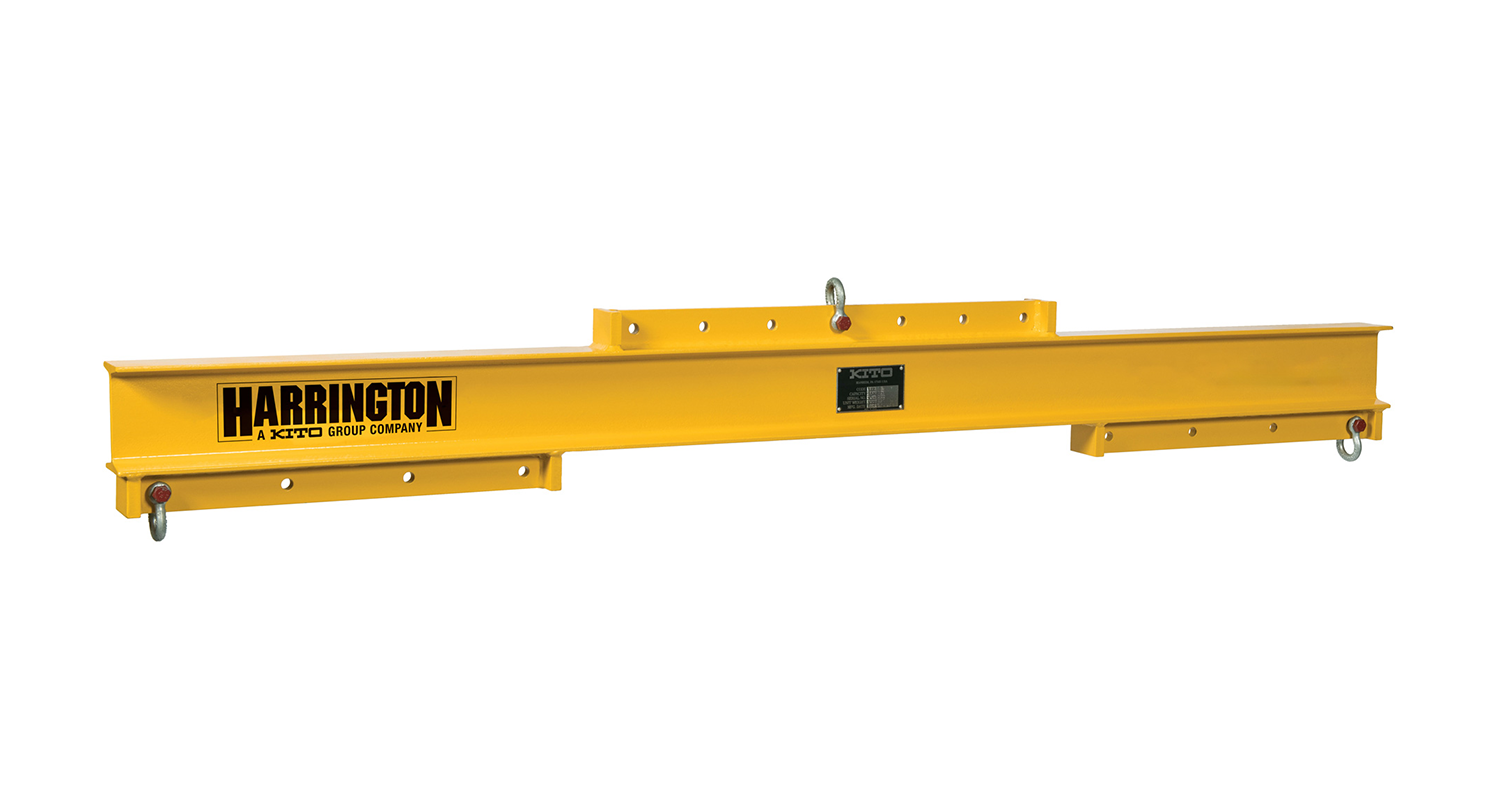

Harrington Universal Lifting Beam & Spreader Beam, 7 Ton Capacity, 12 Foot Spread, HUNVB-7-12

Product Specifications

Attribute name	Attribute value

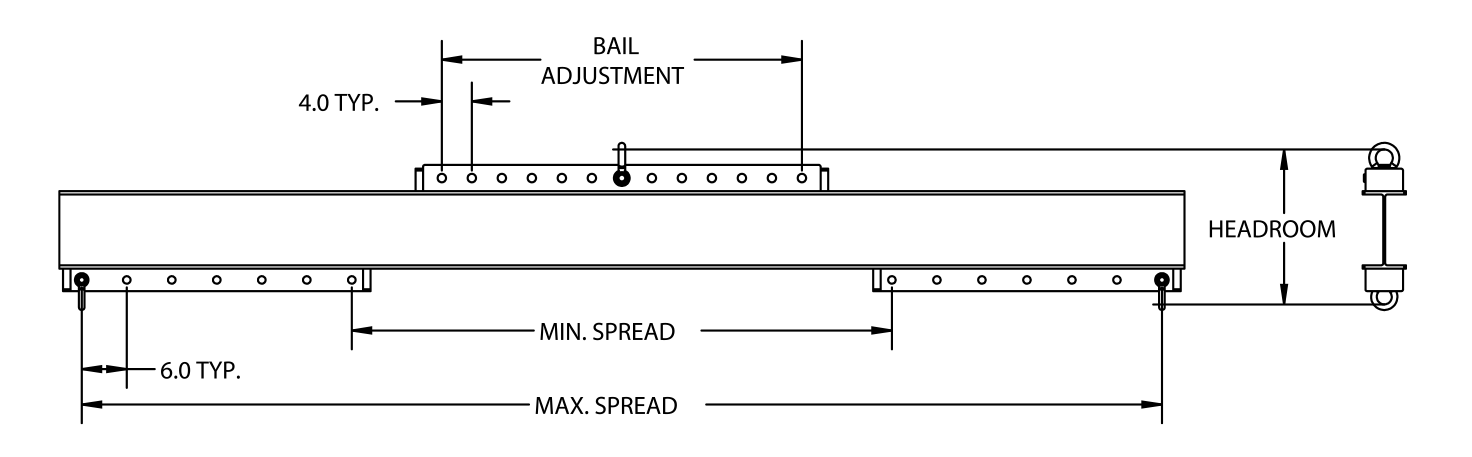

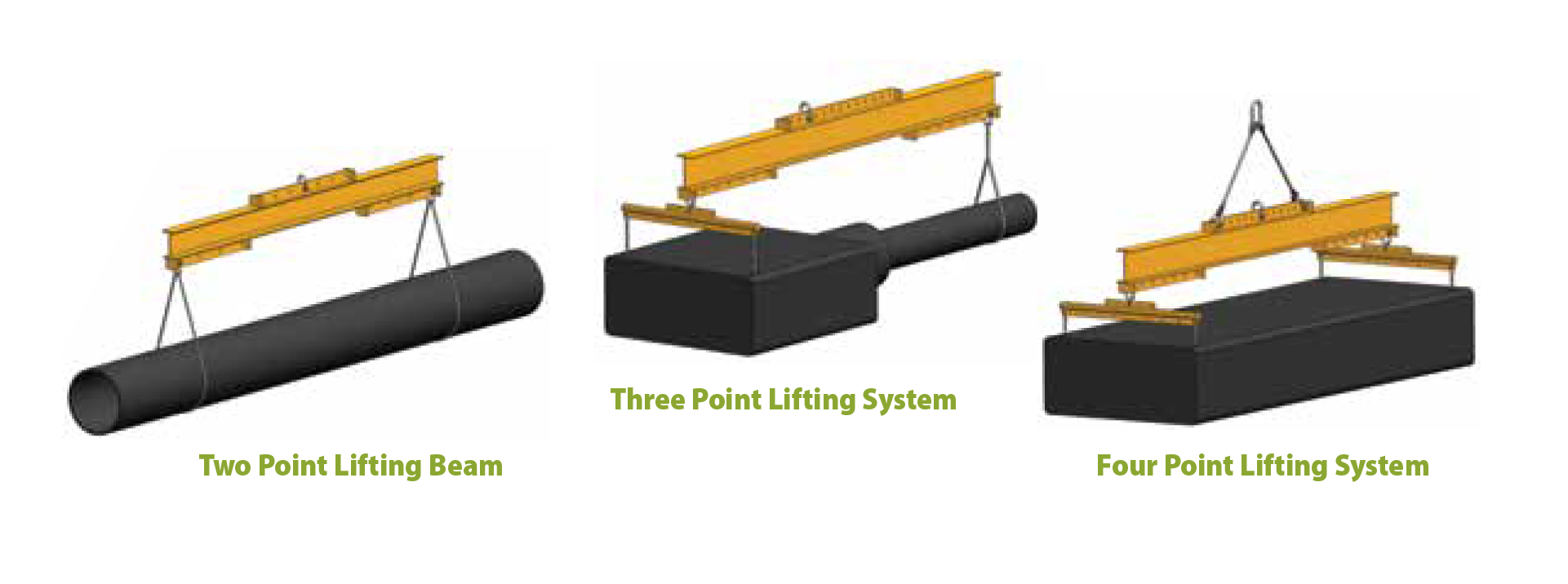

Features	Model Number: HUNVB-7-12 Capacity: 7 Ton / 6350.29 kg Max. Spread: 12 ft. / 3.66 m Min. Spread: 6 ft. / 1.83 m Bail Adjustment: 48 in. / 1219.2 mm Headroom: 25 in. / 635 mm Top Shackle Capacity: 6.5 Ton / 5896.7 kg Bottom Shackle Capacity: 6.5 Ton / 5896.7 kg Weight: 790 lbs. / 358.34 kg Ideal where headroom is limited or where extra stability is required. Adjustable bail allows lifting an off-center load. Can be configured as an optional three or four point lifting system. Supplied with one upper shackle for adjustable bail positions and two lower shackles for adjustable spreads. Options: Chain top rigging, Three point lifting system, Four point lifting system, Higher capacities, Additional lengths, Additional lift points and spreads, Swivel hooks.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
