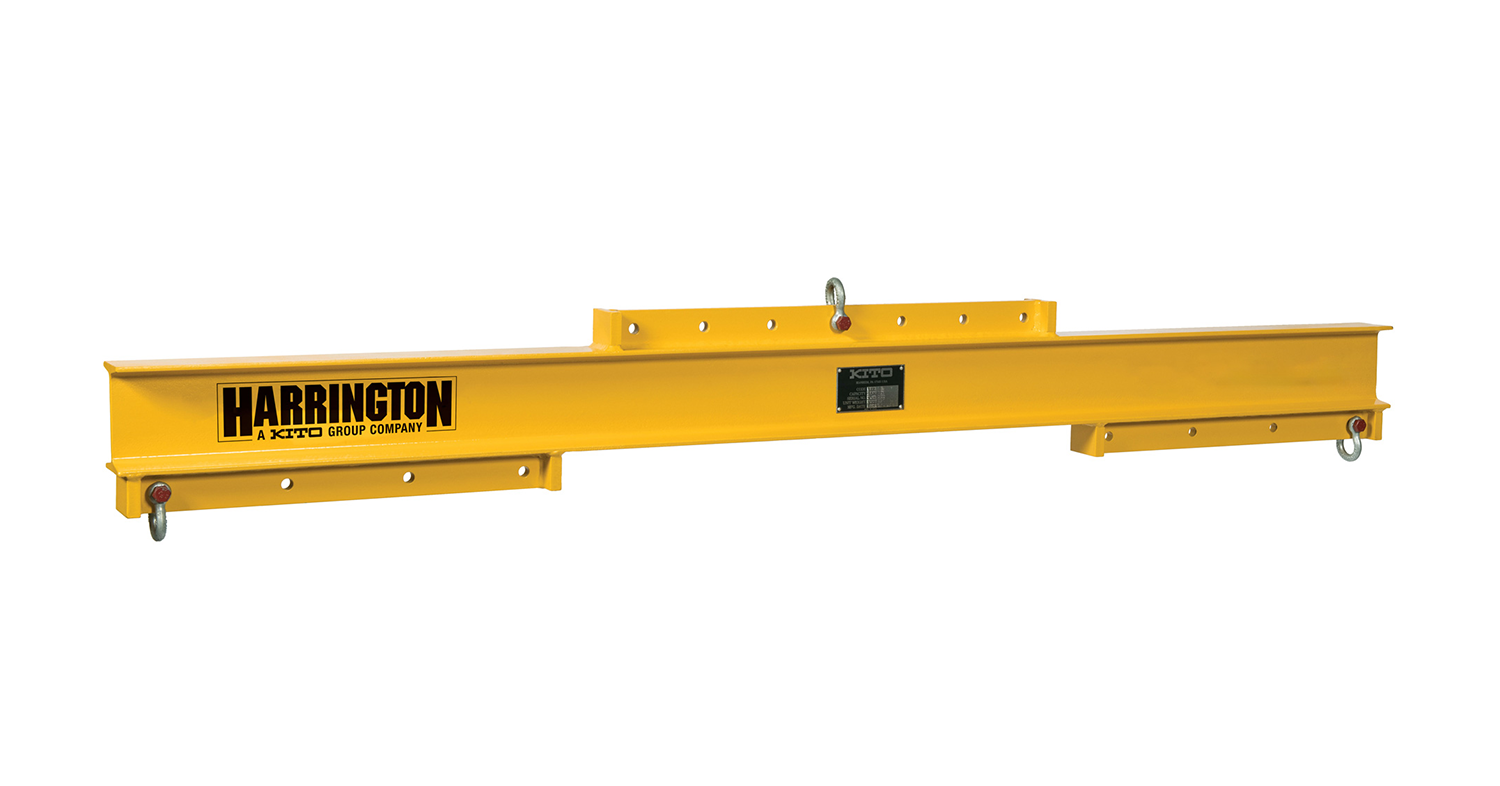

Harrington Universal Lifting Beam & Spreader Beam, 4 Ton Capacity, 8 Foot Spread, HUNVB-4-8

The HUNVB Universal Lifting Beam/Spreader Beam is perfect for situations where headroom is limited or extra stability is required. It is equipped with an adjustable bail that allows for lifting off-center loads.
Availability: In stock
SKU: HUNVB-4-8
Manufacturer part number: HUNVB-4-8
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
*
$2,052.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Model Number: HUNVB-4-8
  • Capacity: 4 Ton / 3628.74 kg

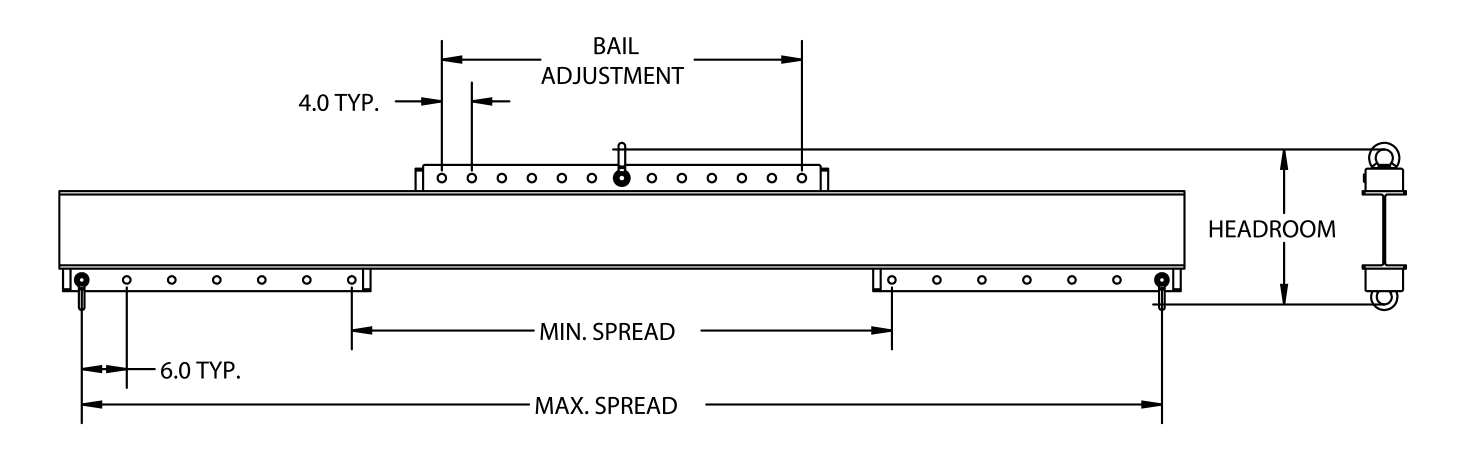

  • Max. Spread: 8 ft. / 2.44 m
  • Min. Spread: 4 ft. / 1.22 m
  • Bail Adjustment: 32 in. / 812.8 mm
  • Headroom: 18 in. / 457.2 mm
  • Top Shackle Capacity: 4.75 Ton / 4309.13 kg
  • Bottom Shackle Capacity: 4.75 Ton / 4309.13 kg
  • Weight: 290 lbs. / 131.54 kg
  • Ideal where headroom is limited or where extra stability is required.
  • Adjustable bail allows lifting an off-center load.
  • Can be configured as an optional three or four point lifting system.
  • Supplied with one upper shackle for adjustable bail positions and two lower shackles for adjustable spreads.
  • Options: Chain top rigging, Three point lifting system, Four point lifting system, Higher capacities, Additional lengths, Additional lift points and spreads, Swivel hooks.
Standards/Approvals
  • ASME B30.20 & ASME BTH-1 Design Category B Service Class 2
  • Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of OriginMade in the USA
