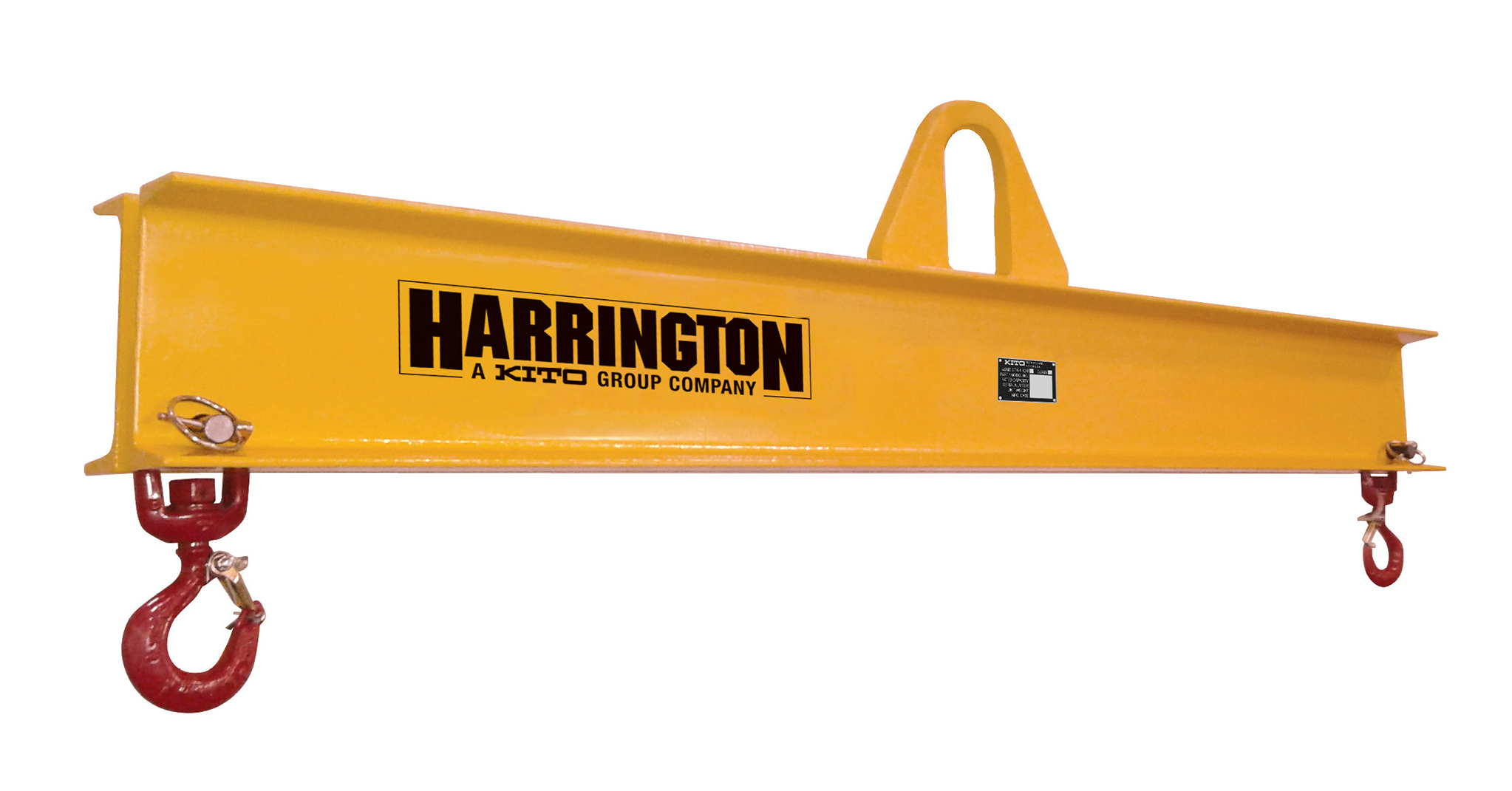

Harrington Standard Duty Lifting Beam, 20 Ton Capacity, 12 Foot Spread, HSDLB-20-12

The HSDLB Standard Duty Lifting Beam can safely handle a wide range of lifting applications. The channel design of the lifting beam allows for easy attachment of hooks, shackles, or other lifting accessories.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HSDLB-20-12

Manufacturer part number: HSDLB-20-12

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

$10,228.54

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

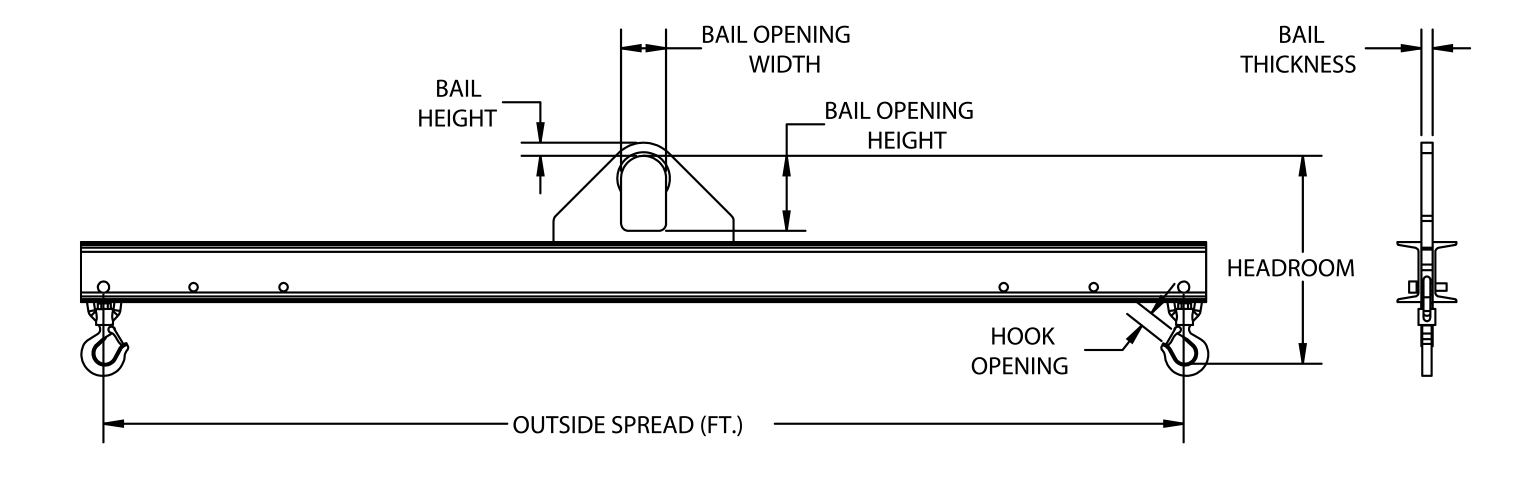

Features	Model Number: HSDLB-20-12 Capacity: 20 Ton / 18143.69 kg Outside Spread: 12 ft. / 3.66 m Headroom: 38 in. / 965.2 mm Bail Dimensions Bail Height: 2.5 in. / 63.5 mm Bail Opening Width: 5 in. / 127 mm Bail Opening Height: 9 in. / 228.6 mm Bail Thickness: 1.5 in. / 38.1 mm Hook Dimensions Hook Opening: 2.27 in. / 57.66 mm Weight: 1,585 lbs. / 718.94 kg Low headroom channel design. Machined bail ensures better connection to the hook saddle. Ideal for limited headroom applications. Supplied with a pair of swivel hooks and three standard spreads (3 ft. and 4 ft. beams have two standard spreads). Non-standard spreads available upon request. Three standard lift points for load adjustment: Outside lift point, Middle lift point (outside less 1 ft.), and Inside lift point (middle less 1 ft.). Options: Additional lift points, Additional lengths, Higher capacities, Lower headroom bail, Integrated beam stands, Shackle lugs, Additional hooks, Additional load pins.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
