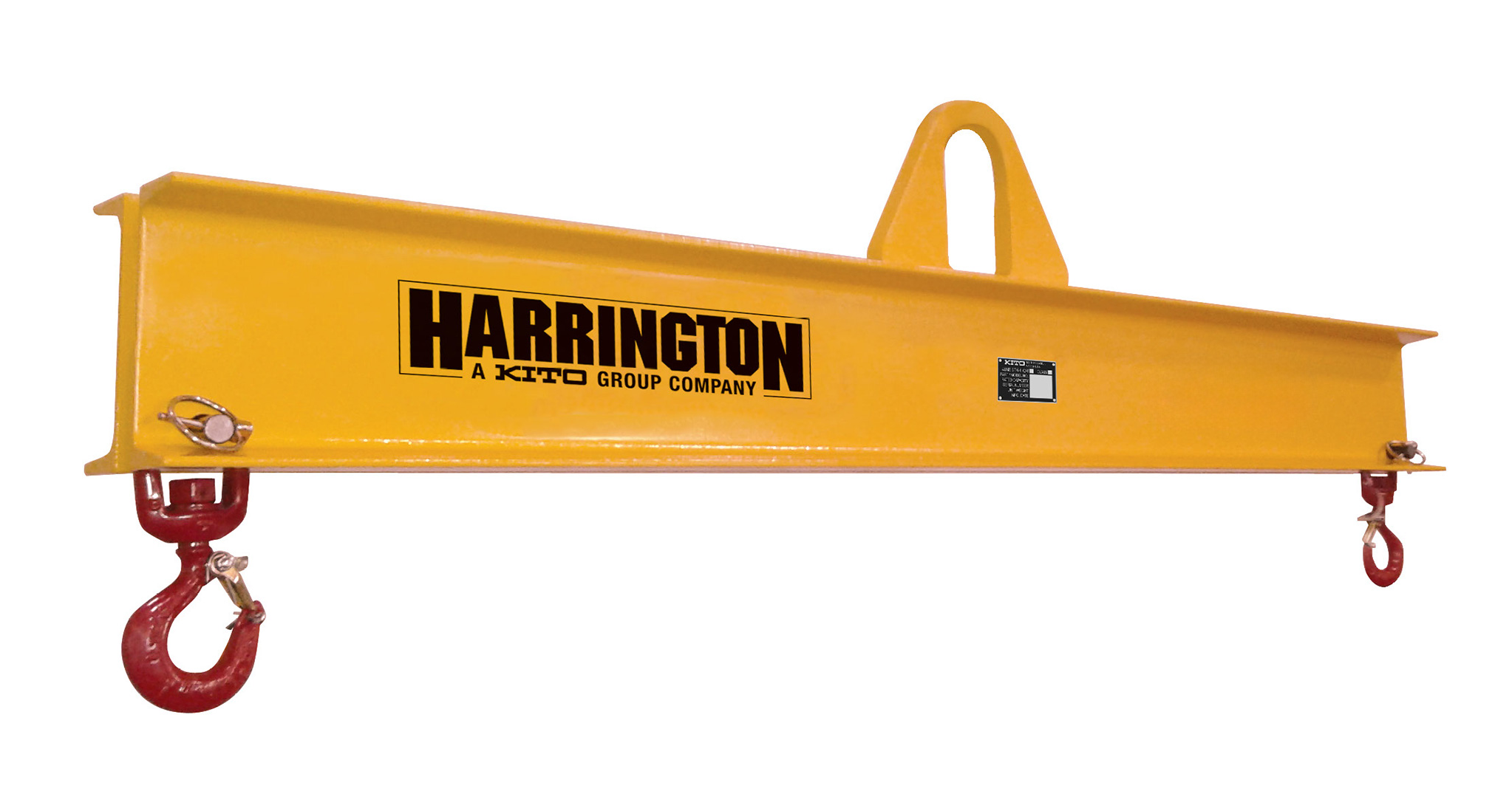

Harrington Standard Duty Lifting Beam, 2 Ton Capacity, 6 Foot Spread, HSDLB-2-6

The HSDLB Standard Duty Lifting Beam can safely handle a wide range of lifting applications. The channel design of the lifting beam allows for easy attachment of hooks, shackles, or other lifting accessories.
Availability: In stock
SKU: HSDLB-2-6
Manufacturer part number: HSDLB-2-6
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
*
$1,129.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Model Number: HSDLB-2-6
  • Capacity: 2 Ton / 1814.37 kg
  • Outside Spread: 6 ft. / 1.83 m
  • Headroom: 15 in. / 381 mm

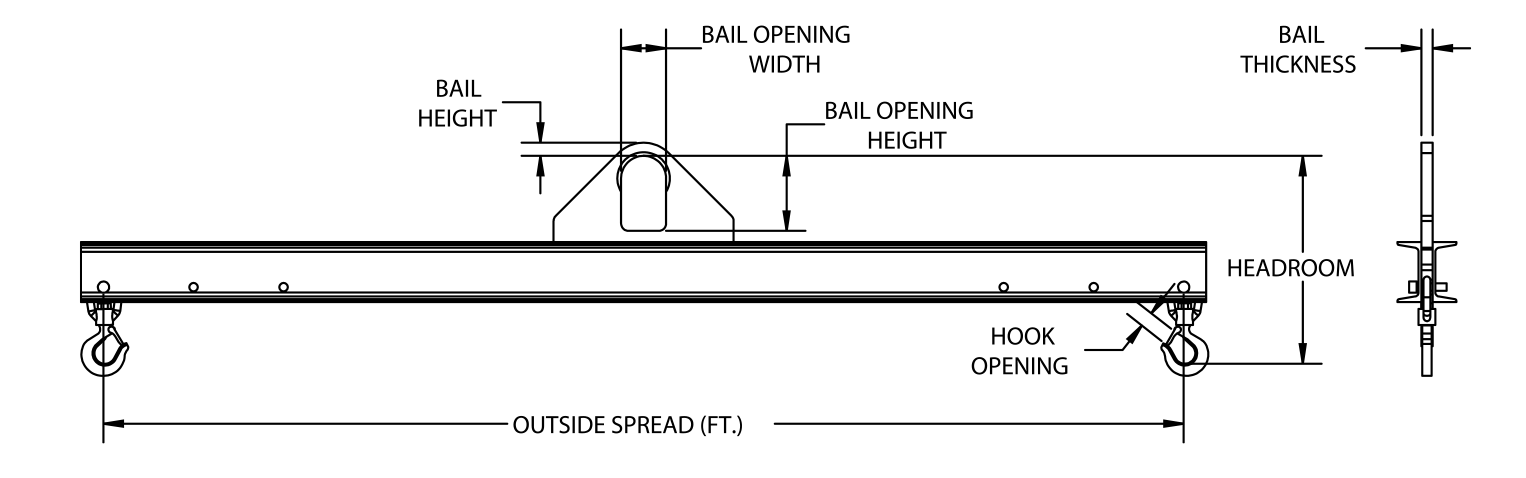

  • Bail Dimensions
    • Bail Height: 0.88 in. / 22.352 mm
    • Bail Opening Width: 3 in. / 76.2 mm
    • Bail Opening Height: 5 in. / 127 mm
    • Bail Thickness: 0.75 in. / 19.05 mm
  • Hook Dimensions
    • Hook Opening: 0.91 in. / 23.11 mm
  • Weight: 95 lbs. / 43.09 kg
  • Low headroom channel design.
  • Machined bail ensures better connection to the hook saddle.
  • Ideal for limited headroom applications.
  • Supplied with a pair of swivel hooks and three standard spreads (3 ft. and 4 ft. beams have two standard spreads). Non-standard spreads available upon request.
  • Three standard lift points for load adjustment: Outside lift point, Middle lift point (outside less 1 ft.), and Inside lift point (middle less 1 ft.).
  • Options: Additional lift points, Additional lengths, Higher capacities, Lower headroom bail, Integrated beam stands, Shackle lugs, Additional hooks, Additional load pins.
Standards/Approvals
  • ASME B30.20 & ASME BTH-1 Design Category B Service Class 2
  • Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of OriginMade in the USA
