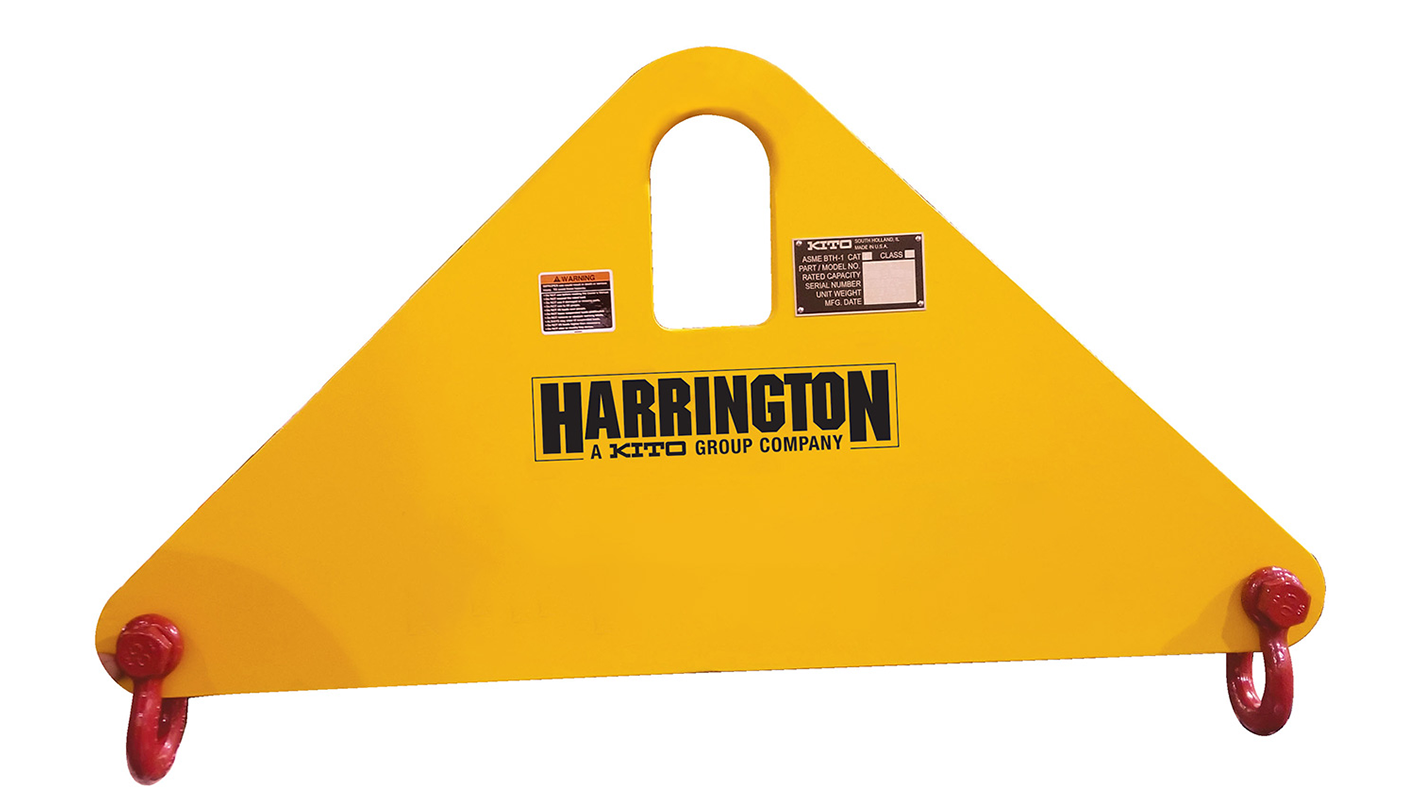

Harrington Short Span Lifting Beam, 3 Ton Capacity, 1 Foot Spread, HSSLB-3-1

The HSSLB Lifting Beam is a versatile and efficient tool for lifting heavy loads over short distances. It has a plate style design that works well in limited headroom or tight spaces.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HSSLB-3-1

Manufacturer part number: HSSLB-3-1

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Spread *

1 ft / 0.304 m

Includes *

One pair of shackles

Options (Call for Quote - 314-869-7200)

$915.92

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

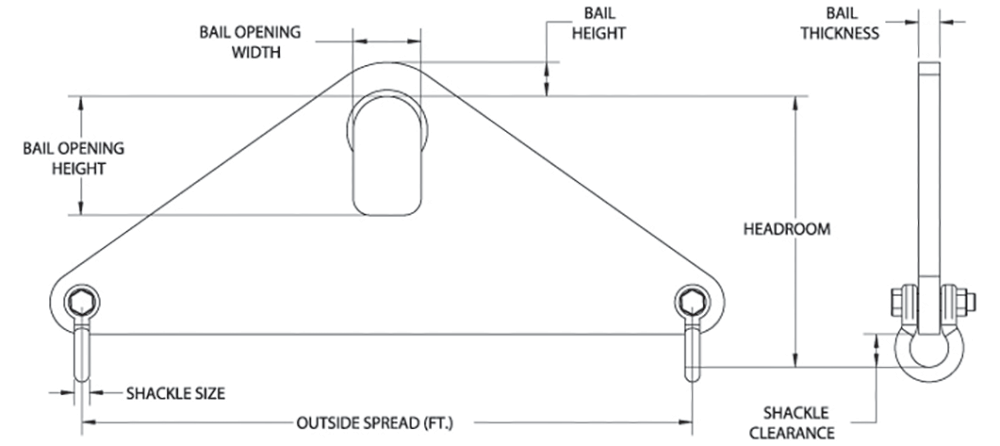

Features	Model Number: HSSLB-3-1 Capacity: 3 Ton / 2721.55 kg Outside Spread: 1 ft. / 0.304 m Headroom: 9.75 in. / 247.6 mm Bail Dimensions Bail Height: 1.25 in. / 31.75 mm Bail Opening Width: 3 in. / 76.2 mm Bail Opening Height: 5 in. / 127 mm Bail Thickness: 1 in. / 25.4 mm Shackle Dimensions Shackle Size: 3/4 in. / 19.05 mm Shackle Clearence: 1.8 in. / 45.72 mm Weight: 30 lbs. / 13.61 kg Low headroom plate style design. Machined bail ensures better connection to the hook saddle. Ideal for short span applications. Suitable for limited headroom applications. Supplied with a pair of shackles and one standard spread. Non-standard spreads available upon request. Options: Additional lift points, Additional lengths, Higher capacities (supplied with upper shackle), Upper shackle, Upper shackle with oblong link, Additional hooks.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
