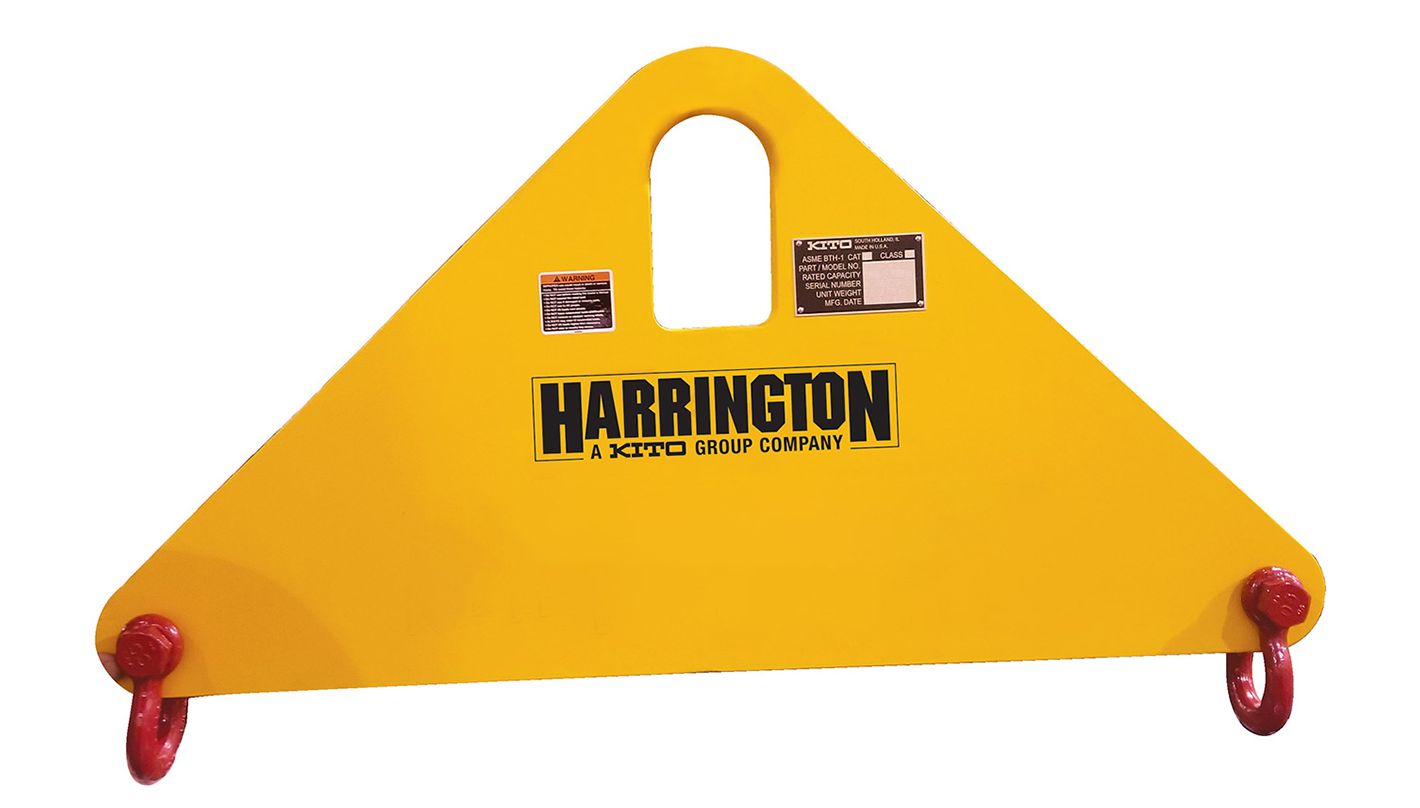

Harrington Short Span Lifting Beam, 20 Ton Capacity, 2 Foot Spread, HSSLB-20-2

The HSSLB Lifting Beam is a versatile and efficient tool for lifting heavy loads over short distances. It has a plate style design that works well in limited headroom or tight spaces.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HSSLB-20-2

Manufacturer part number: HSSLB-20-2

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Spread *

2 ft. / 0.609 m

Includes *

One pair of shackles

Options (Call for Quote - 314-869-7200)

$1,593.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

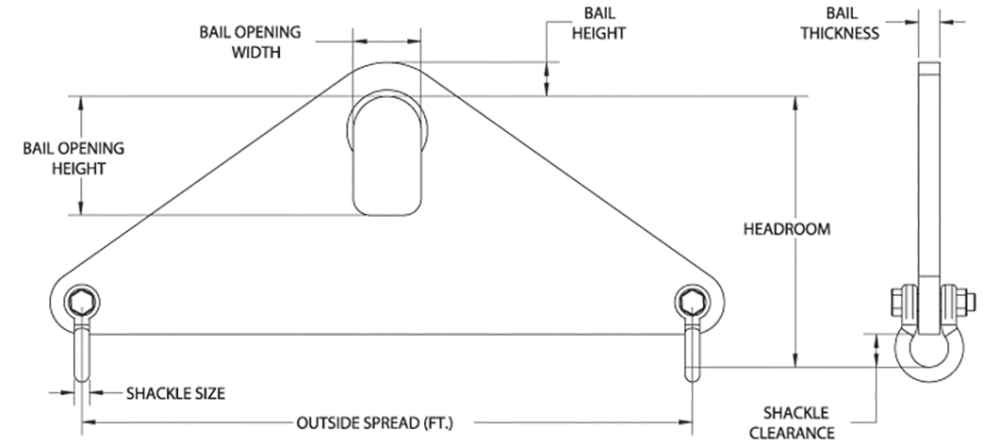

Features	Model Number: HSSLB-20-2 Capacity: 20 Ton / 18143.7 kg Outside Spread: 2 ft. / 0.609 m Headroom: 20.25 in. / 514.35 mm Bail Dimensions Bail Height: 2.5 in. / 63.5 mm Bail Opening Width: 5 in. / 127 mm Bail Opening Height: 9 in. / 228.6 mm Bail Thickness: 1.5 in. / 38.1 mm Shackle Dimensions Shackle Size: 1-1/4 in. / 31.75 mm Shackle Clearence: 3.1 in. / 78.74 mm Weight: 170 lbs. / 77.11 kg Low headroom plate style design. Machined bail ensures better connection to the hook saddle. Ideal for short span applications. Suitable for limited headroom applications. Supplied with a pair of shackles and one standard spread. Non-standard spreads available upon request. Options: Additional lift points, Additional lengths, Higher capacities (supplied with upper shackle), Upper shackle, Upper shackle with oblong link, Additional hooks.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
