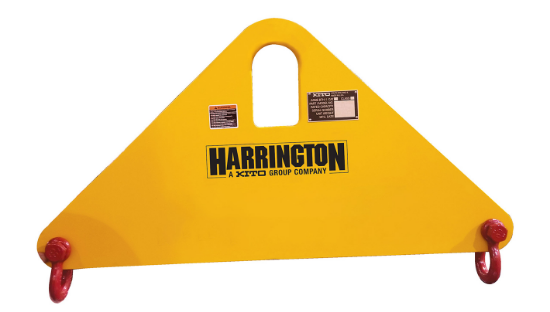

Harrington Short Span Lifting Beam, 1 Ton Capacity, 3 Foot Spread, HSSLB-1-3

The HSSLB Lifting Beam is a versatile and efficient tool for lifting heavy loads over short distances. It has a plate style design that works well in limited headroom or tight spaces.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HSSLB-1-3

Manufacturer part number: HSSLB-1-3

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Spread *

3 ft. / 0.914 m

Includes *

One pair of shackles

Options (Call for Quote - 314-869-7200)

$1,084.22

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

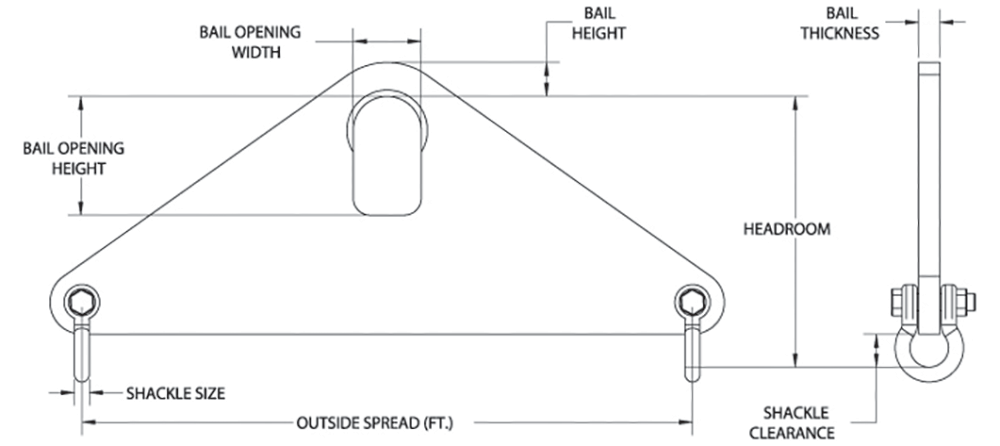

Features	Model Number: HSSLB-1-3 Capacity: 1 Ton / 907.19 kg Outside Spread: 3 ft. / 0.914 m Headroom: 12.75 in. / 323.85 mm Bail Dimensions Bail Height: 0.88 in. / 22.352 mm Bail Opening Width: 3 in. / 76.2 mm Bail Opening Height: 5 in. / 127 mm Bail Thickness: 0.75 in. / 19.05 mm Shackle Dimensions Shackle Size: 5/8 in. / 15.88 mm Shackle Clearence: 1.6 in. / 40.64 mm Weight: 63 lbs. / 28.57 kg Low headroom plate style design. Machined bail ensures better connection to the hook saddle. Ideal for short span applications. Suitable for limited headroom applications. Supplied with a pair of shackles and one standard spread. Non-standard spreads available upon request. Options: Additional lift points, Additional lengths, Higher capacities (supplied with upper shackle), Upper shackle, Upper shackle with oblong link, Additional hooks.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
