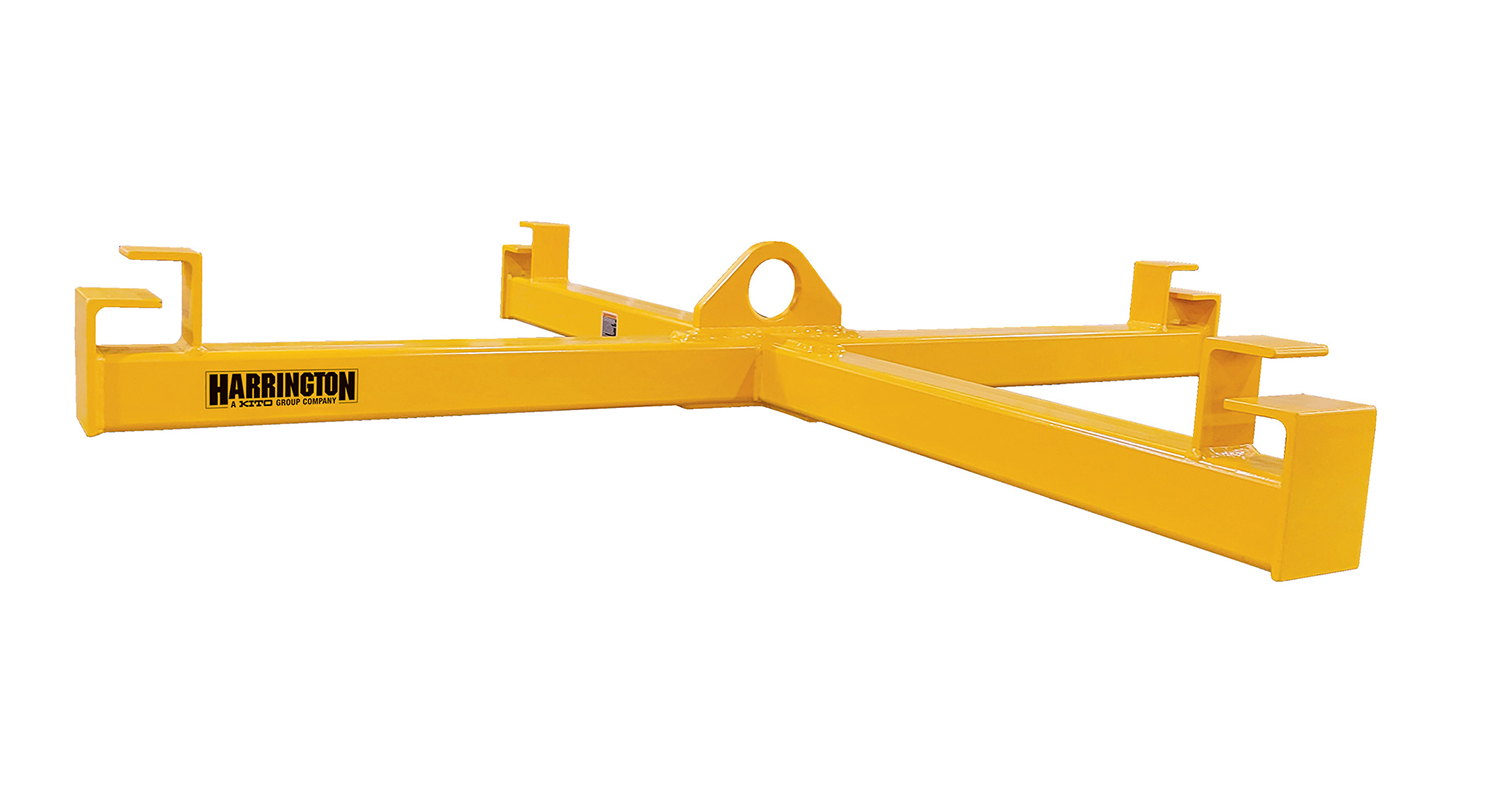

Harrington Four Point Sack Lifter Beam, 2 Ton Capacity, 48 Inch Spread, HFPSL-2-48SK

The HFPSL Four Point Sack Lifter Beam is specifically designed for lifting bulk container sacks. It has an X-Style design that enables a direct connection to lifting slings and Sling Keepers, enhancing sling containment during the lift.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HFPSL-2-48SK

Manufacturer part number: HFPSL-2-48SK

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Spread *

48 in. / 1219.2 mm

Includes *

Strap Keepers

Options (Call for Quote - 314-869-7200)

Sling spacers
Low to negative headroom designs
Additional sizes and styles

$3,056.88

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

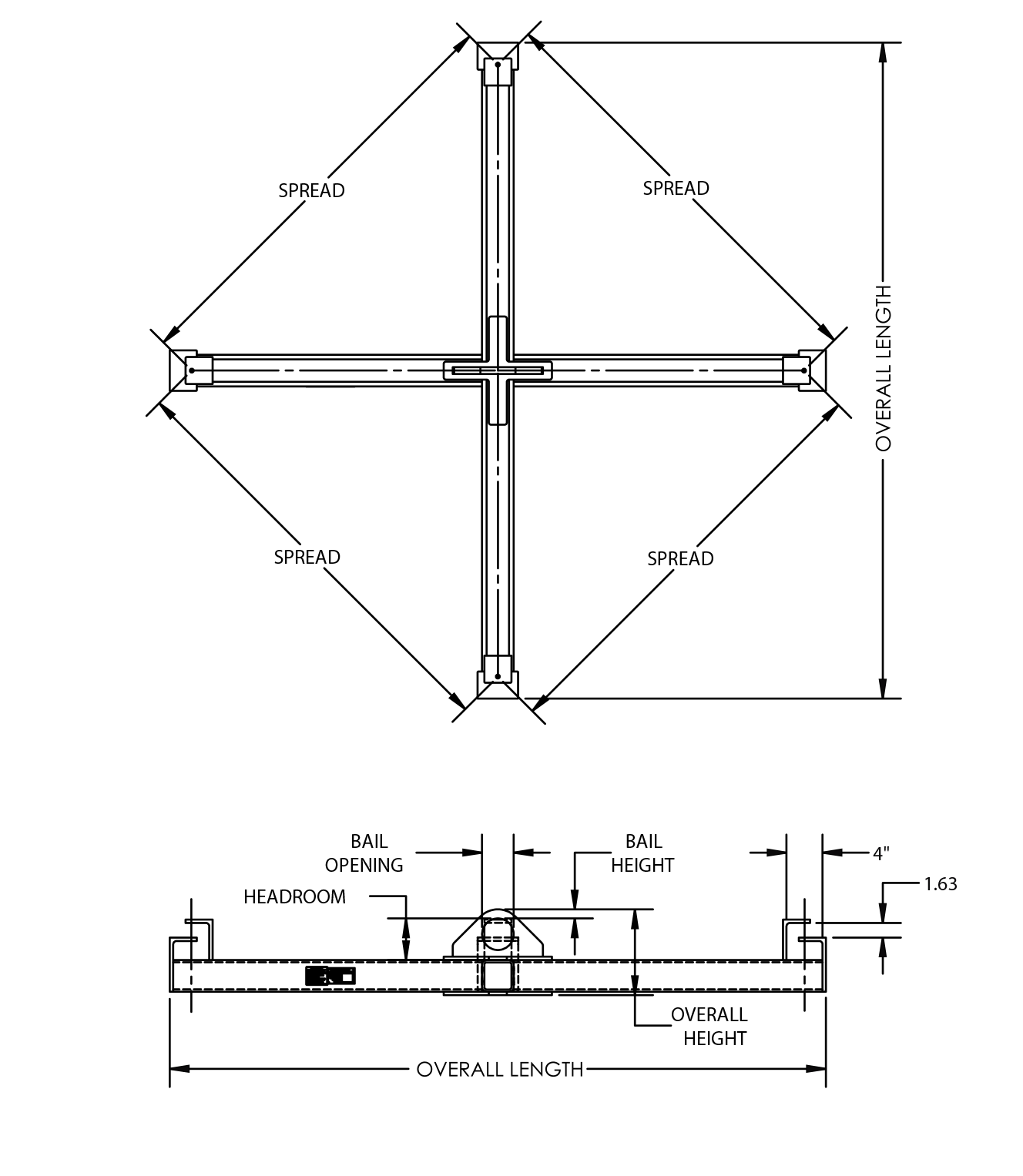

Features	Model Number: HFPSL-2-48SK Capacity: 2 Ton / 2000 kg Outside Spread: 48 in. / 1219.2 mm Headroom: 4.63 in. / 117.6 mm Bail Dimensions Bail Height: 1 in. / 25.4 mm Bail Opening: 3.5 in. / 88.9 mm Overall Height: 9.5 in. / 241.3 mm Overall Length: 72.75 in. / 1847.85 mm Weight: 170 lbs. / 77.11 kg Designed to lift bulk container sacks. X-Style design allows for a straight-line connection to lifting slings. Low headroom design meets metric rating requirements. Sling Keepers improve sling containment during the lift. Smooth edges minimize wear on lifting straps. Available in 1 Ton and 2 Metric Ton capacities with outside spreads of 36 in. and 48 in. Supplied with Strap Keepers. Options: Sling spacers, Low to negative headroom designs, Additional sizes and styles are available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
