Harrington Four Point Adjustable Beam, 5 Ton Capacity, HFPAB-5-120/96

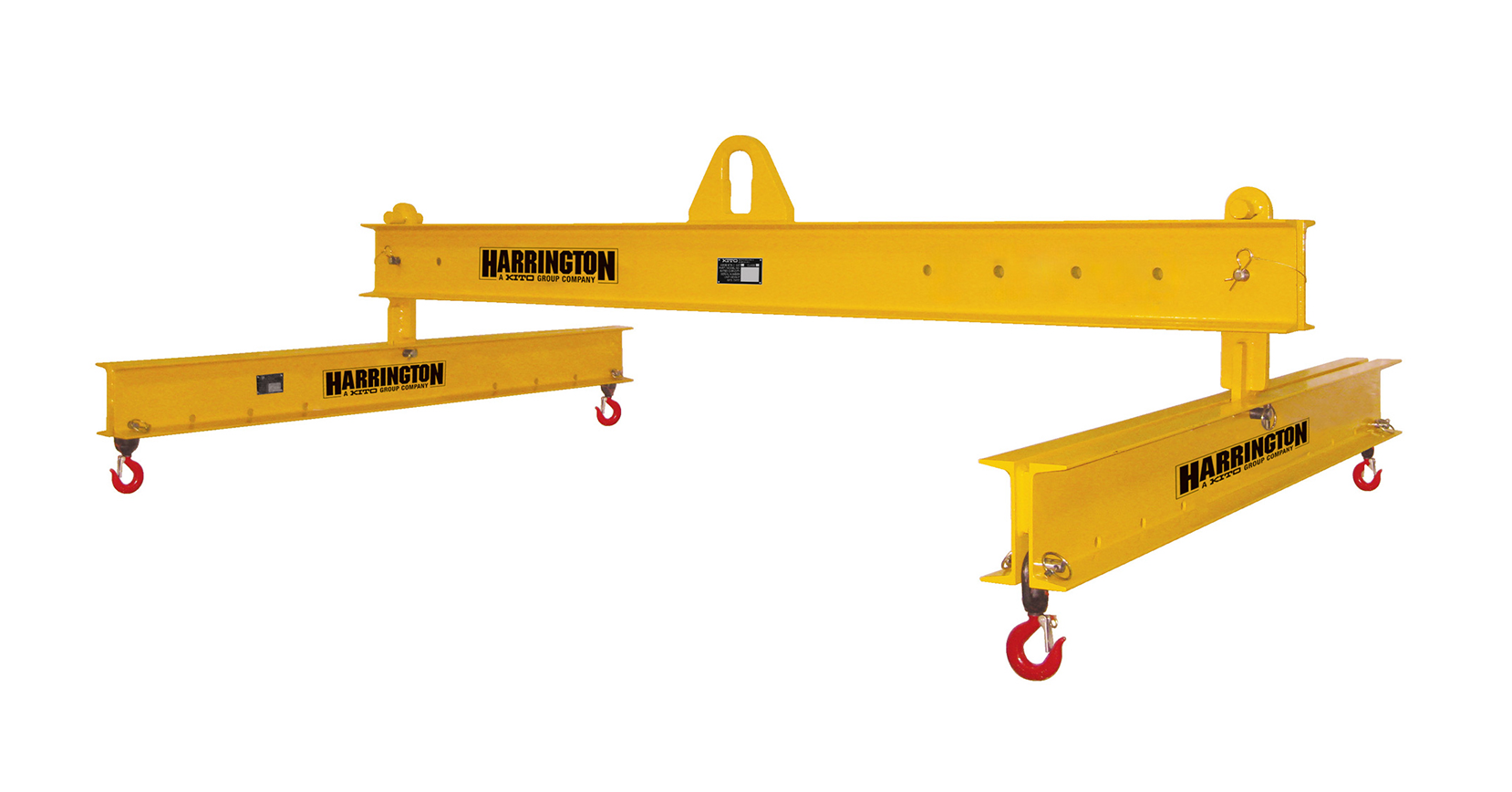

The HFPAB Four Point Adjustable Beam is designed for use in areas with limited headroom. It is ideal for lifting objects that require multiple lift points.

Manufacturer: Harrington Hoists and Cranes

SKU: HFPAB-5-120/96

Manufacturer part number: HFPAB-5-120/96

Lead Time (subject to change, call to verify): typically ships in 50-60 business days

Main Beam Spread *

120 in. / 3048 mm (max)
48 in. / 1219.2 mm (min)

Cross Beam Spread *

96 in. / 2438.4 mm (max)
36 in. / 914.4 mm (min)

Includes *

Four swivel hooks

Options (Call for Quote - 314-869-7200)

Beam stand
Additional sizes and options

$7,760.13

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

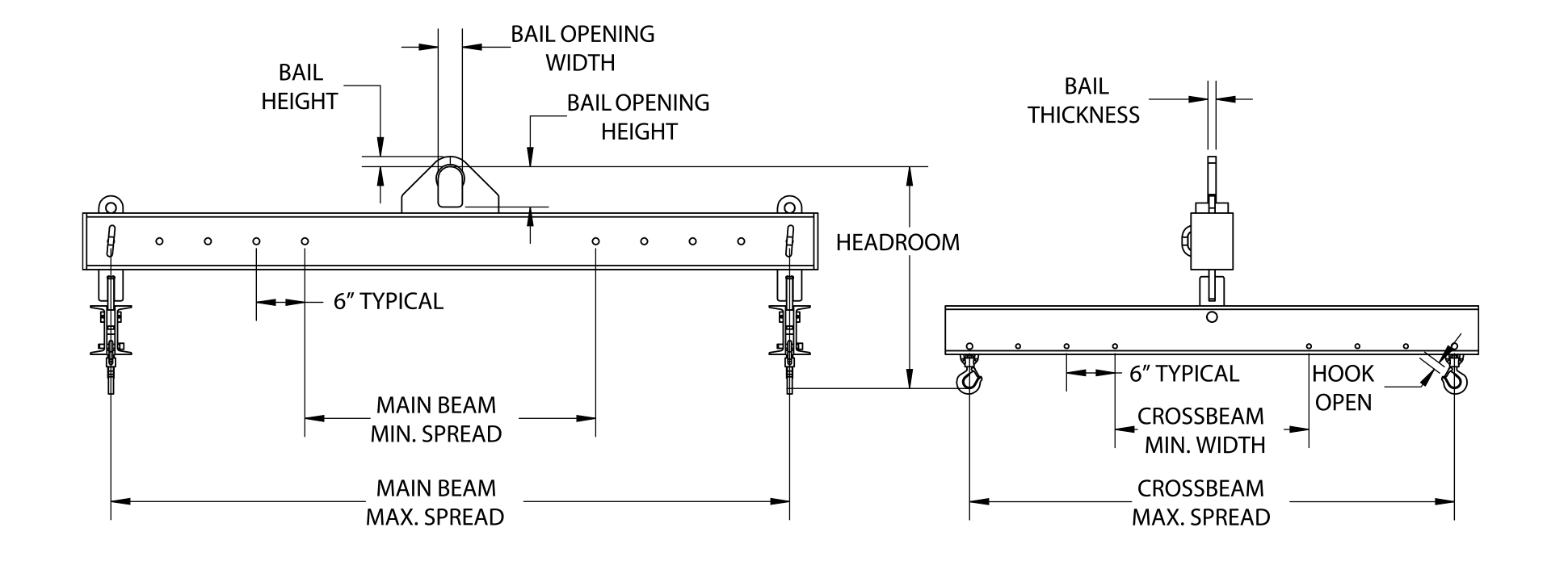

Features	Model Number: HFPAB-5-120/96 Capacity: 5 Ton / 4535.92 kg Main Beam Spread Max. Spread: 120 in. / 3048 mm Min. Spread: 48 in. / 1219.2 mm Cross Beam Spread Max. Spread: 96 in. / 2438.4 mm Min. Spread: 36 in. / 914.4 mm Headroom: 33 in. / 838.2 mm Bail Dimensions Bail Height: 2 in. / 50.8 mm Bail Opening Width: 4 in. / 101.6 mm Bail Opening Height: 7 in. / 177.8 mm Bail Thickness: 1.25 in. / 31.75 mm Hook Dimensions Hook Opening: 1 in. / 25.4 mm Weight: 958 lbs. / 434.54 kg Standard four point adjustable spread style lifting beam. Ideal where headroom is limited and when objects require multiple lift points. Supplied with four swivel hooks. Options: Beam stand, Additional sizes and options available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
