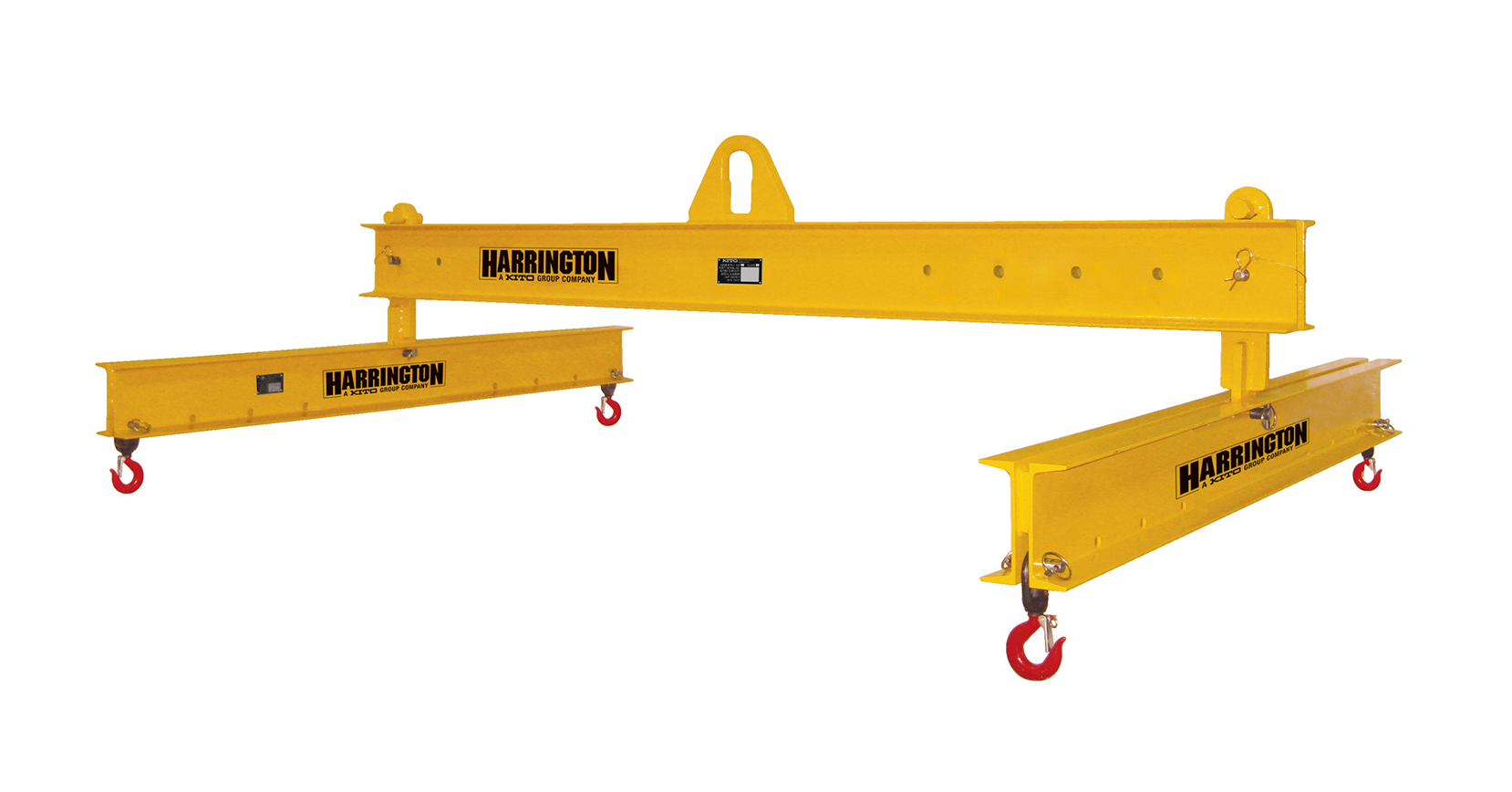

Harrington Four Point Adjustable Beam, 3 Ton Capacity, HFPAB-3-84/60

The HFPAB Four Point Adjustable Beam is designed for use in areas with limited headroom. It is ideal for lifting objects that require multiple lift points.

Manufacturer: Harrington Hoists and Cranes

SKU: HFPAB-3-84/60

Manufacturer part number: HFPAB-3-84/60

Lead Time (subject to change, call to verify): typically ships in 50-60 business days

Main Beam Spread *

84 in. / 2133.6 mm (max)
35 in. / 914.4 mm (min)

Cross Beam Spread *

60 in. / 1524 mm (max)
24 in. / 609.6 mm (min)

Includes *

Four swivel hooks

Options (Call for Quote - 314-869-7200)

Beam stand
Additional sizes and options

$4,880.71

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

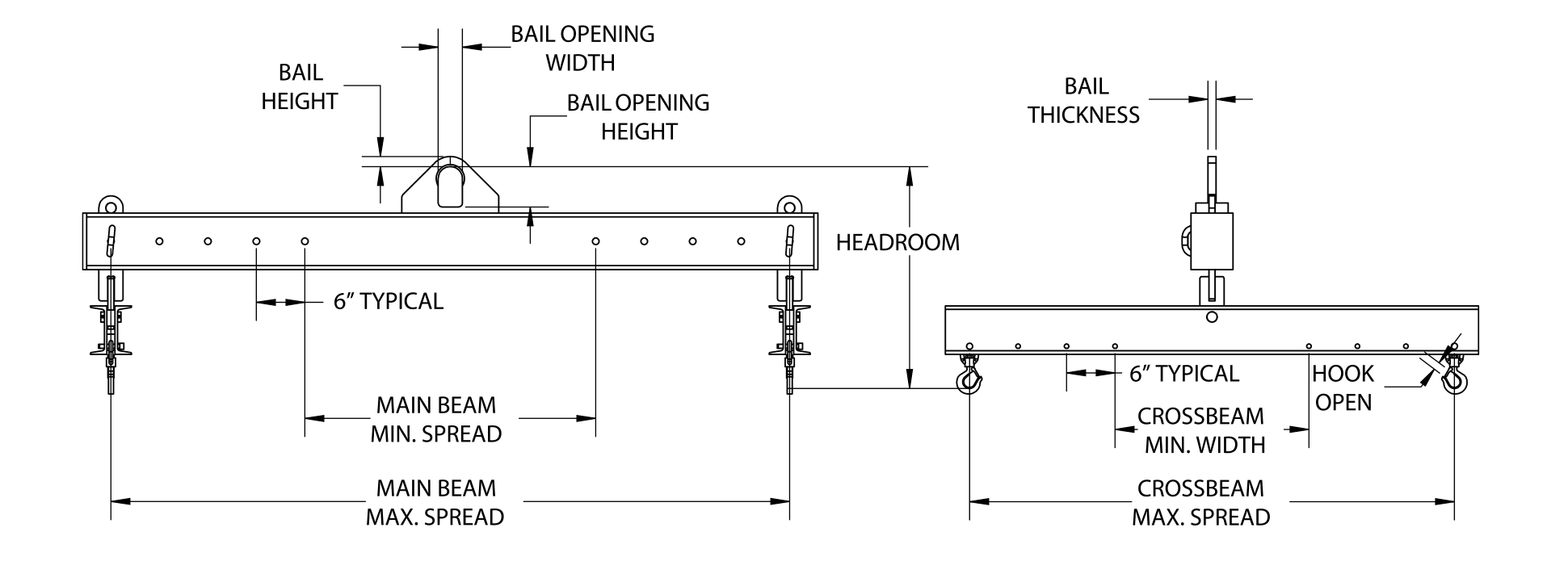

Features	Model Number: HFPAB-3-84/60 Capacity: 3 Ton / 2721.55 kg Main Beam Spread Max. Spread: 84 in. / 2133.6 mm Min. Spread: 35 in. / 914.4 mm Cross Beam Spread Max. Spread: 60 in. / 1524 mm Min. Spread: 24 in. / 609.6 mm Headroom: 28 in. / 711.2 mm Bail Dimensions Bail Height: 1.25 in. / 31.75 mm Bail Opening Width: 3 in. / 76.2 mm Bail Opening Height: 5 in. / 127 mm Bail Thickness: 1 in. / 25.4 mm Hook Dimensions Hook Opening: 0.91 in. / 23.11 mm Weight: 473 lbs. / 214.55 kg Standard four point adjustable spread style lifting beam. Ideal where headroom is limited and when objects require multiple lift points. Supplied with four swivel hooks. Options: Beam stand, Additional sizes and options available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
