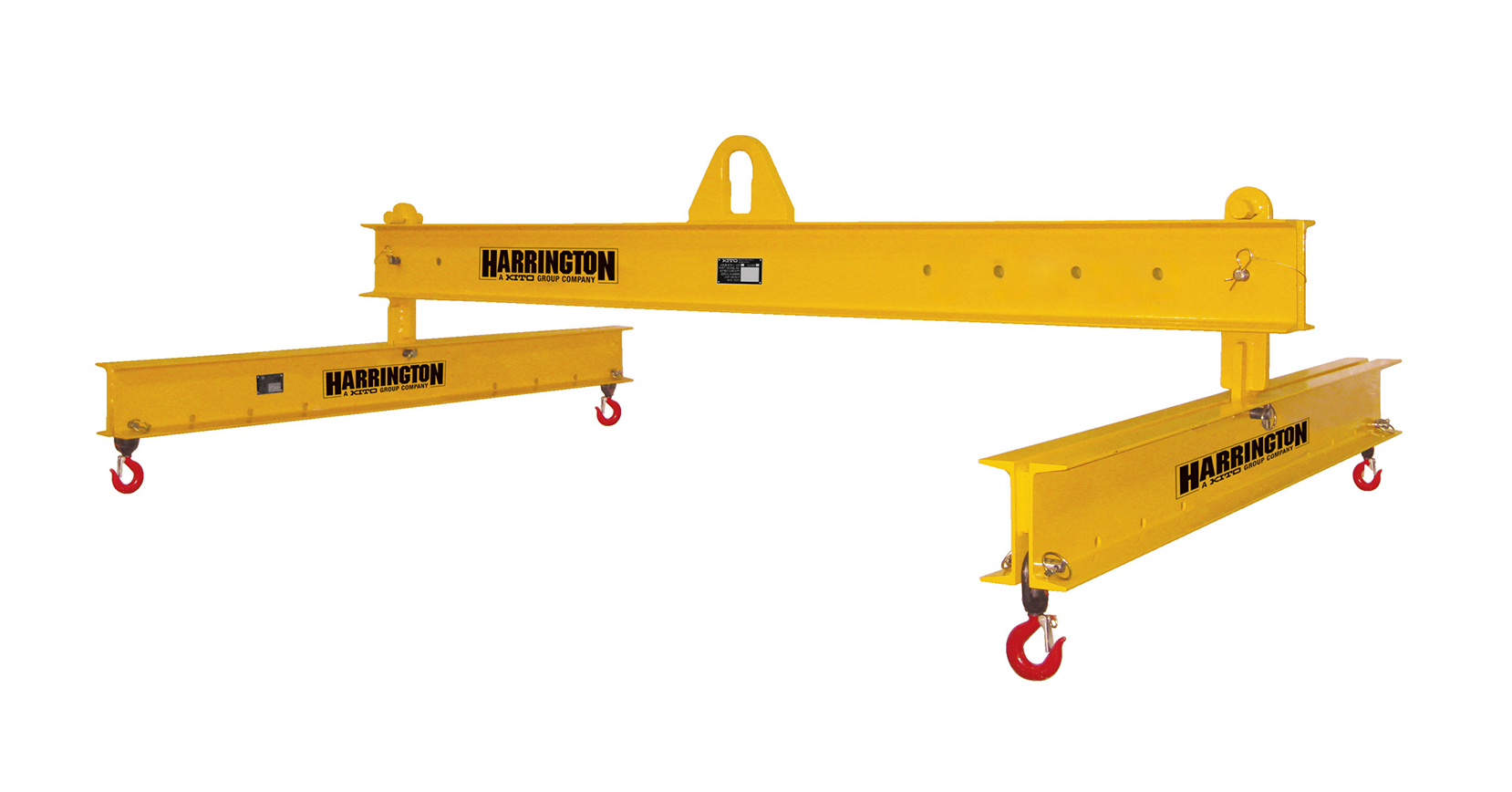

Harrington Four Point Adjustable Beam, 10 Ton Capacity, HFPAB-10-144/96

The HFPAB Four Point Adjustable Beam is designed for use in areas with limited headroom. It is ideal for lifting objects that require multiple lift points.

Manufacturer: Harrington Hoists and Cranes

SKU: HFPAB-10-144/96

Manufacturer part number: HFPAB-10-144/96

Lead Time (subject to change, call to verify): typically ships in 50-60 business days

Main Beam Spread *

144 in. / 3657.6 mm (max)
72 in. / 1828.8 mm (min)

Cross Beam Spread *

96 in. / 2438.4 mm (max)
36 in. / 914.4 mm (min)

Includes *

Four swivel hooks

Options (Call for Quote - 314-869-7200)

Beam stand
Additional sizes and options

$10,147.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

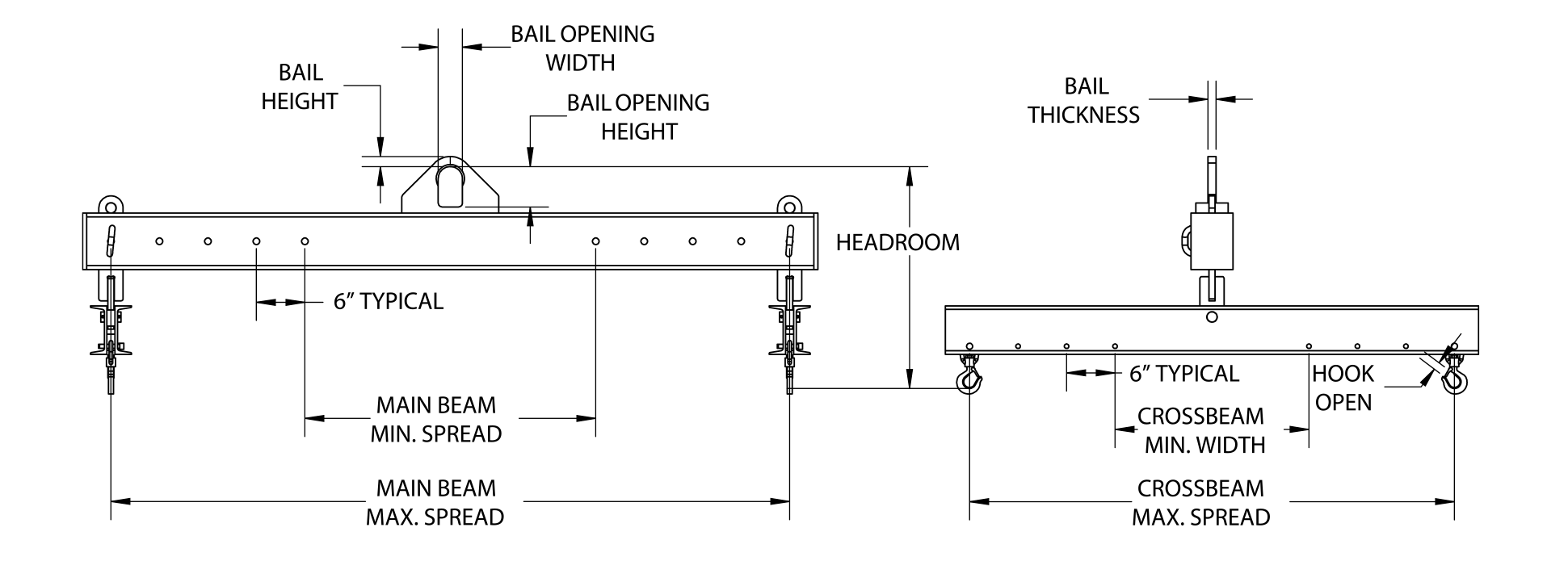

Features	Model Number: HFPAB-10-144/96 Capacity: 10 Ton / 9071.85 kg Main Beam Spread Max. Spread: 144 in. / 3657.6 mm Min. Spread: 72 in. / 1828.8 mm Cross Beam Spread Max. Spread: 96 in. / 2438.4 mm Min. Spread: 36 in. / 914.4 mm Headroom: 42 in. / 1066.8 mm Bail Dimensions Bail Height: 2 in. / 50.8 mm Bail Opening Width: 4 in. / 101.6 mm Bail Opening Height: 7 in. / 177.8 mm Bail Thickness: 1.25 in. / 31.75 mm Hook Dimensions Hook Opening: 1.36 in. / 34.54 mm Weight: 1,928 lbs. / 874.53 kg Standard four point adjustable spread style lifting beam. Ideal where headroom is limited and when objects require multiple lift points. Supplied with four swivel hooks. Options: Beam stand, Additional sizes and options available.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
