Harrington Basket Sling Lifting Beam, 2 Ton Capacity, 12 Foot Spread, HBSLB-2-12

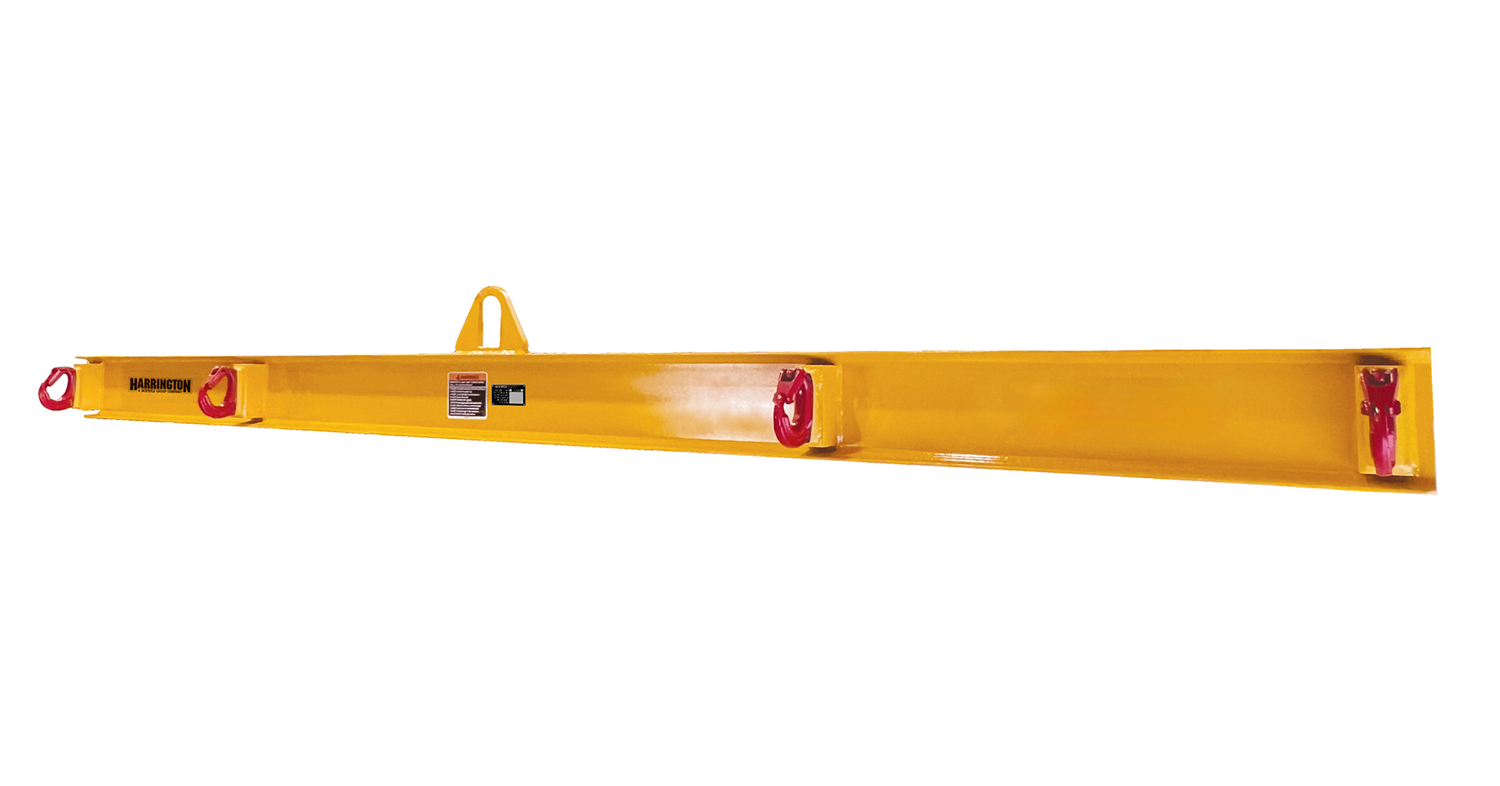

The HBSLB Basket Sling Lifting Beam can be utilized where headroom is limited with slings in a basket hitch, with two sets of fixed hooks and two standard lift points for load adjustment.
Availability: In stock
SKU: HBSLB-2-12
Manufacturer part number: HBSLB-2-12
Lead Time (subject to change, call to verify): typically ships in 20-25 business days
*
*
$3,867.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features

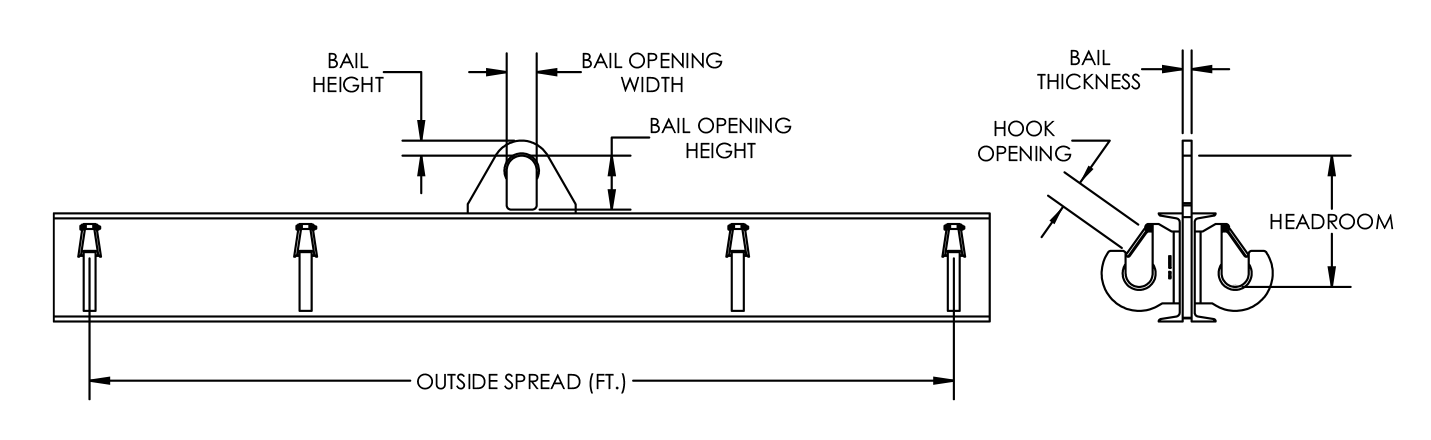

  • Model Number: HBSLB-2-12
  • Capacity: 2 Ton / 1814.37 kg
  • Outside Spread: 12 ft. / 3.66 m
  • Headroom: 14 in. / 355.6 mm
  • Bail Dimensions
    • Bail Height: 0.88 in. / 22.35 mm
    • Bail Opening Width: 3 in. / 76.2 mm
    • Bail Opening Height: 5 in. / 127 mm
    • Bail Thickness: 0.75 in. / 19.05 mm
  • Hook Dimensions
    • Hook Opening: 1.13 in. / 28.7 mm
  • Weight: 394 lbs. / 178.71 kg
  • Ideal for low headroom applications with slings in a basket hitch.
  • Supplied with two sets of fixed hooks (3 ft. and 4 ft. beams have one set of hooks).
  • Two standard lift points for load adjustment: Outside lift point and Inside lift point (1/2 of the outside spread).
  • Options: Additional lift points, Additional lengths, Higher capacities, Lower headroom bail, Additional hooks, Sling spacers, Horn hooks.
Standards/Approvals
  • ASME B30.20 & ASME BTH-1 Design Category B Service Class 2
  • Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of OriginMade in the USA
