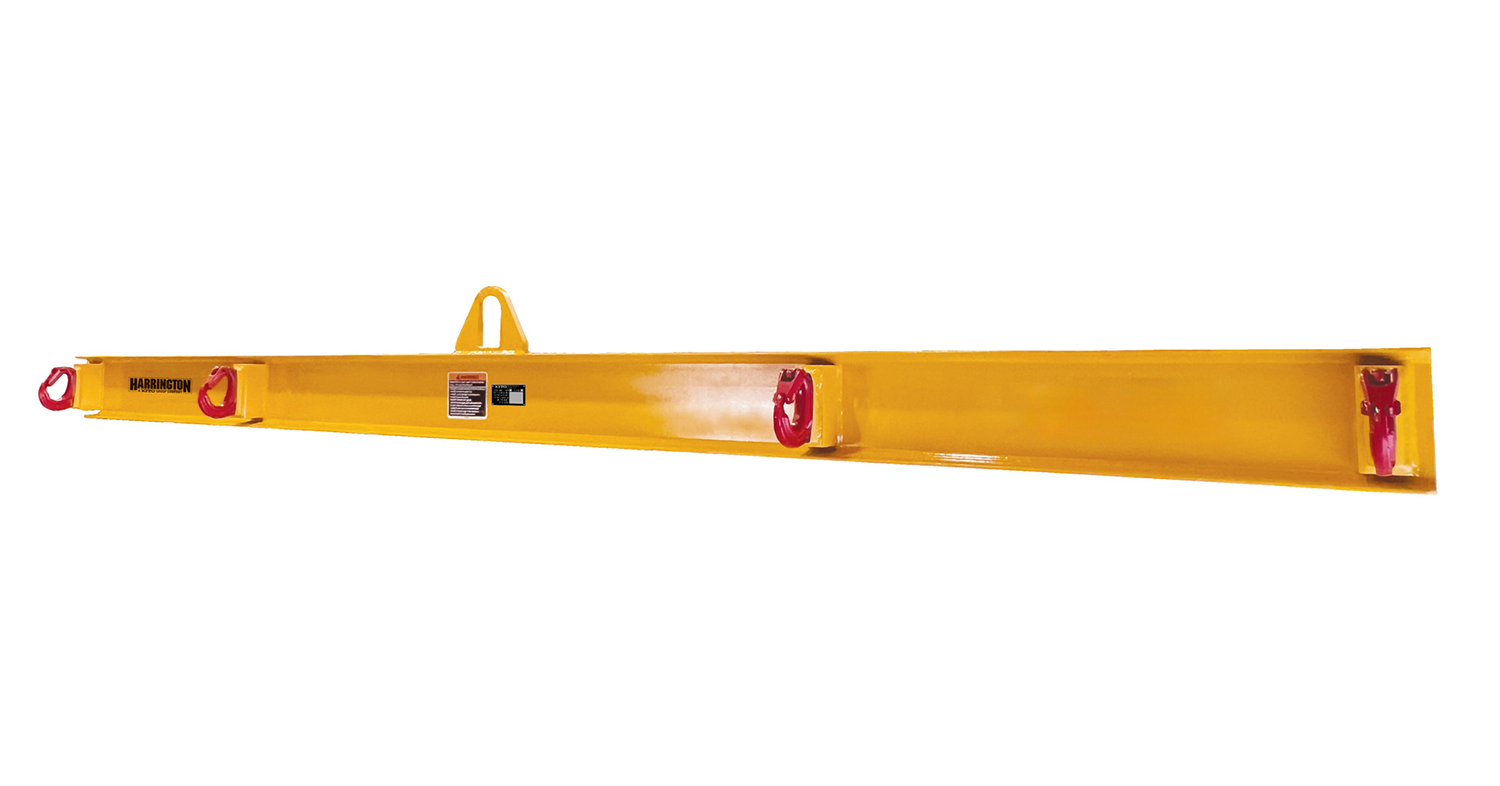

Harrington Basket Sling Lifting Beam, 10 Ton Capacity, 6 Foot Spread, HBSLB-10-6

The HBSLB Basket Sling Lifting Beam can be utilized where headroom is limited with slings in a basket hitch, with two sets of fixed hooks and two standard lift points for load adjustment.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HBSLB-10-6

Manufacturer part number: HBSLB-10-6

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

$3,807.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

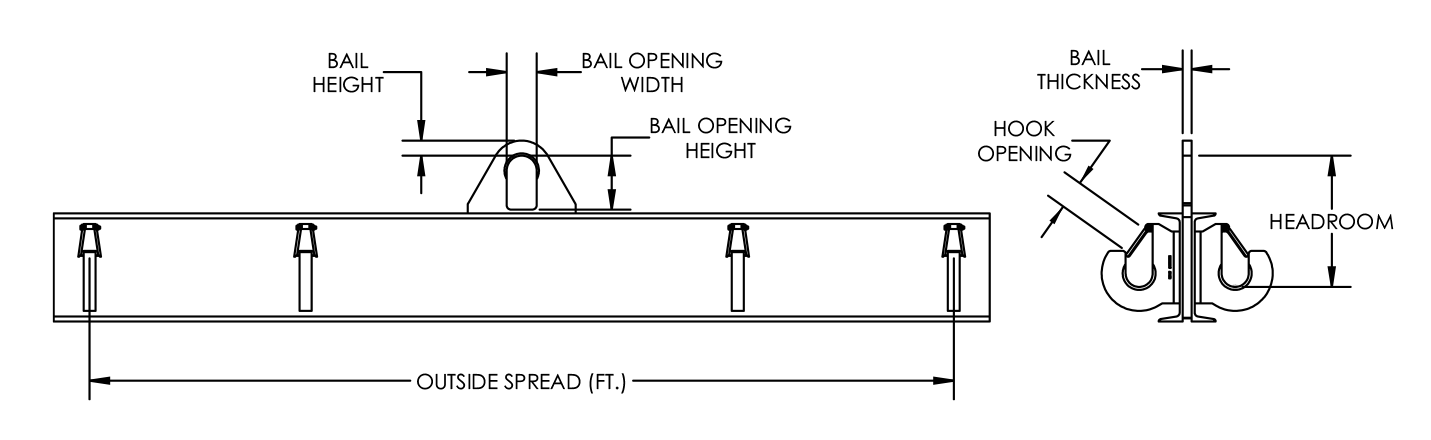

Features	Model Number: HBSLB-10-6 Capacity: 10 Ton / 9071.84 kg Outside Spread: 6 ft. / 1.83 m Headroom: 18 in. / 457.2 mm Bail Dimensions Bail Height: 2 in. / 50.8 mm Bail Opening Width: 4 in. / 101.6 mm Bail Opening Height: 7 in. / 177.8 mm Bail Thickness: 1.25 in. / 31.75 mm Hook Dimensions Hook Opening: 1.75 in. / 44.45 mm Weight: 347 lbs. / 157.39 kg Ideal for low headroom applications with slings in a basket hitch. Supplied with two sets of fixed hooks (3 ft. and 4 ft. beams have one set of hooks). Two standard lift points for load adjustment: Outside lift point and Inside lift point (1/2 of the outside spread). Options: Additional lift points, Additional lengths, Higher capacities, Lower headroom bail, Additional hooks, Sling spacers, Horn hooks.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
