Harrington Adjustable Spreader Beam with Chain Top Rigging, 2 Ton Capacity, 6 Foot Max Spread, HATSBC-2-4/6

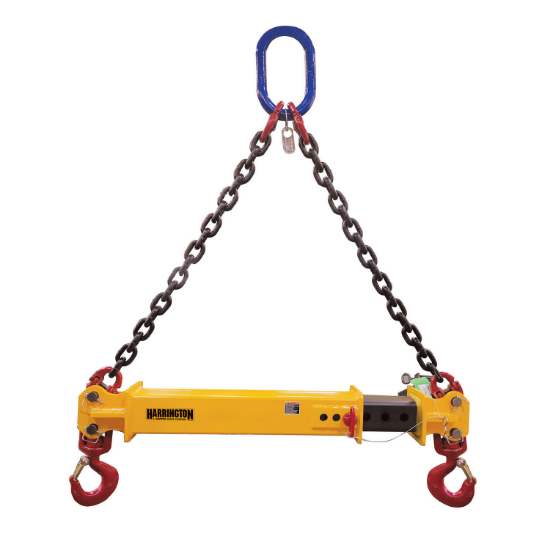

The Harrington HATSB Adjustable Spreader Beam is a versatile beam that can adapt to various load sizes thanks to its telescopic design. Plus, its upper rigging and heavy-duty swivel hooks guarantee secure lifting and enhanced stability, even in challenging outdoor environments.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HATSBC-2-4/6

Manufacturer part number: HATSBC-2-4/6

Lead Time (subject to change, call to verify): typically ships in 25-30 business days

$2,139.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

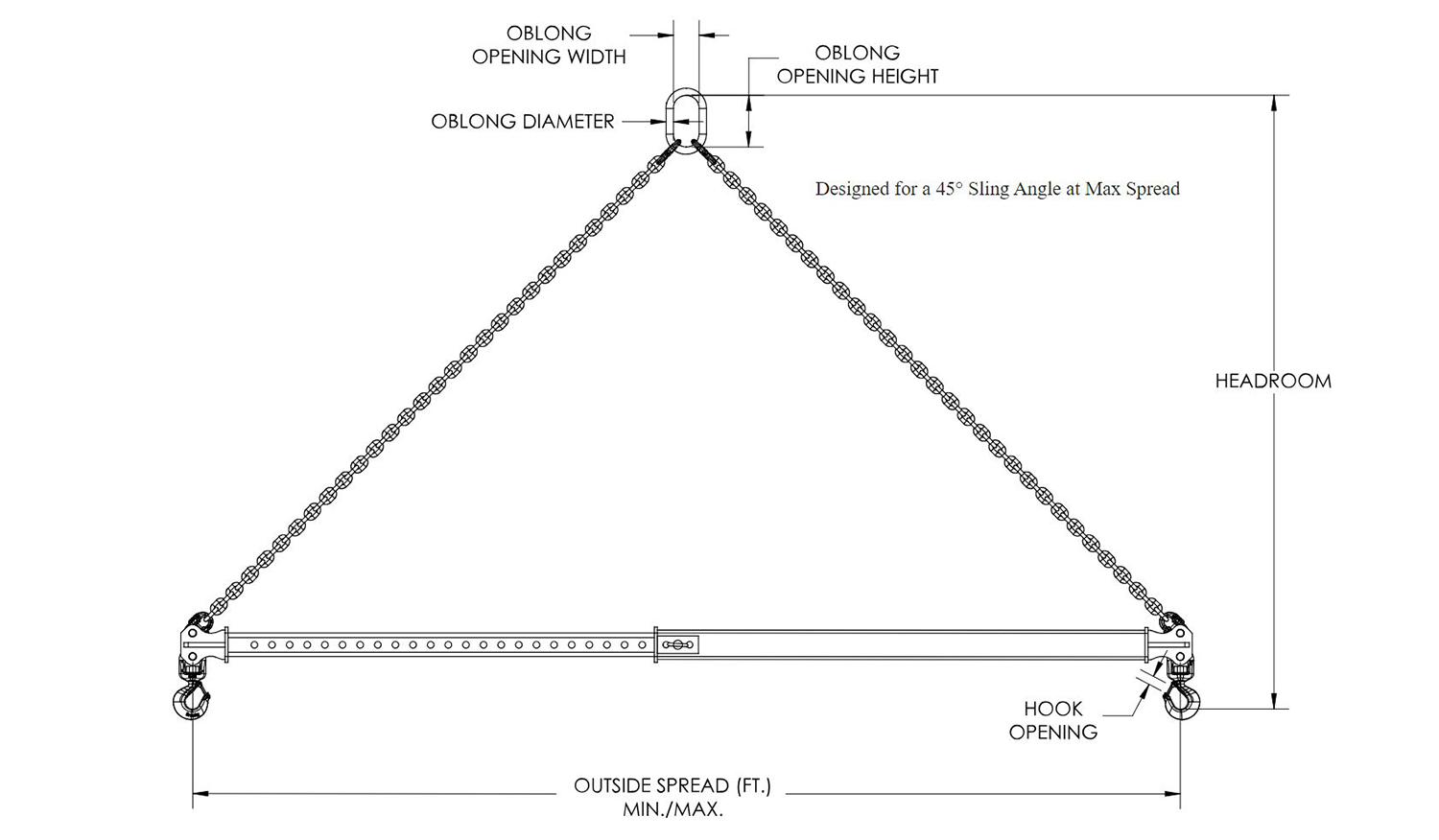

Features	Model Number: HATSBC-2-4/6 Capacity: 2 Ton / 1814.37 kg Outside Spread Max. Spread: 6 ft. / 1.83 m Min. Spread: 4 ft. / 1.22 m Headroom (Max at 45°) Max. Headroom: 60 in. / 1524 mm Min. Headroom: 50 in. / 1270 mm Oblong Master Link Dimensions Oblong ML Diameter: 0.63 in. / 16 mm Oblong ML Diameter Width: 3 in. / 76.2 mm Oblong ML Diameter Height: 6 in. / 152.4 mm Hook Dimensions Hook Opening: 0.91 in. / 23.11 mm Beam & Hook Weight: 70 lbs. / 31.75 kg Chain Rigging Weight: 15 lbs. / 6.80 kg Upper rigging spread between the two lift points adds extra stability to the lift by lowering the center of gravity. Telescopic design can accommodate various size loads. Ideal where headroom is NOT limited. Supplied with a pair of swivel hooks & pins and chain top rigging. Options: Additional lengths, Higher capacities, Upper and lower shackle design, Wire rope top rigging.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
