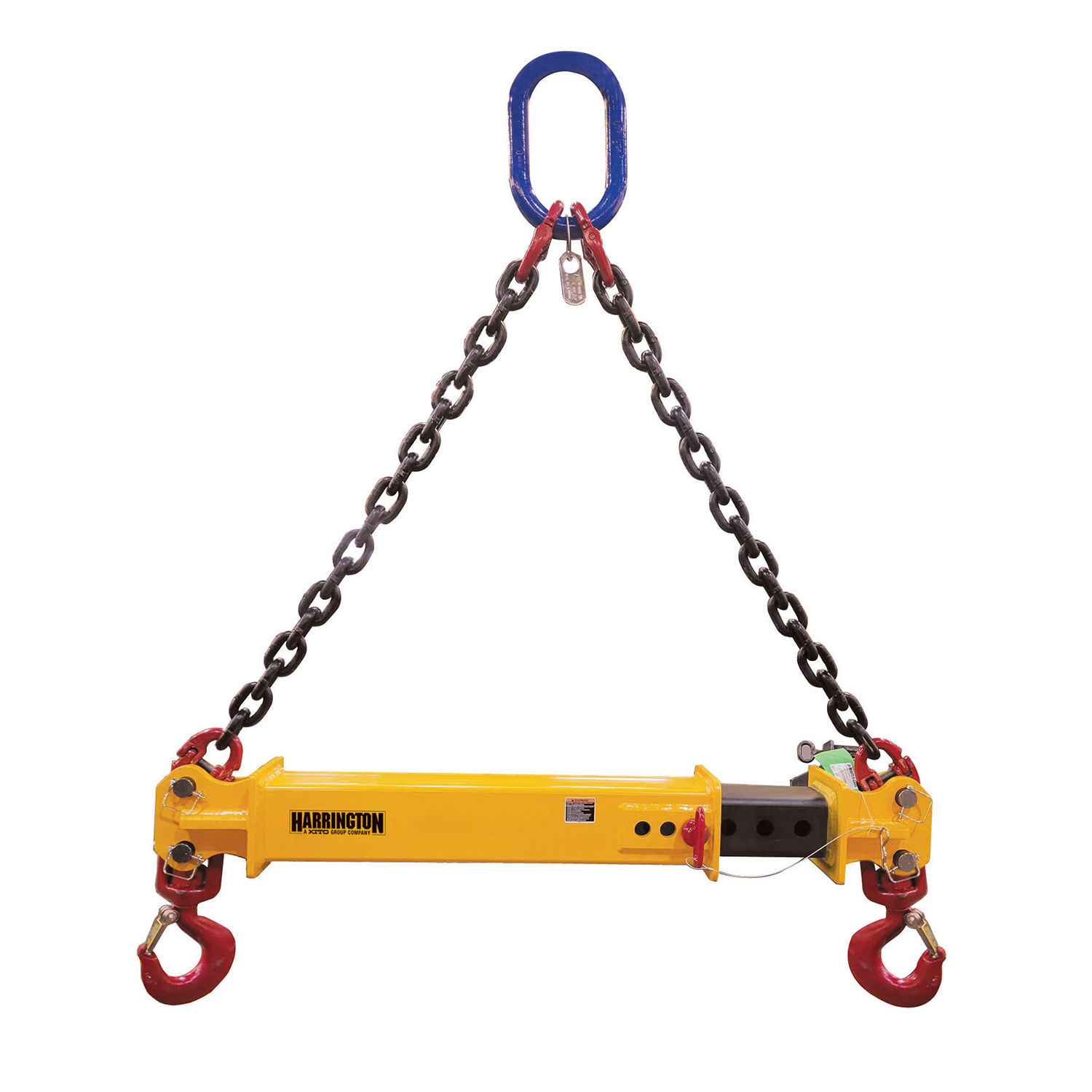

Harrington Adjustable Spreader Beam with Chain Top Rigging, 2 Ton Capacity, 14 Foot Max Spread, HATSBC-2-8/14

The Harrington HATSB Adjustable Spreader Beam is a versatile beam that can adapt to various load sizes thanks to its telescopic design. Plus, its upper rigging and heavy-duty swivel hooks guarantee secure lifting and enhanced stability, even in challenging outdoor environments.
Availability: In stock
SKU: HATSBC-2-8/14
Manufacturer part number: HATSBC-2-8/14
Lead Time (subject to change, call to verify): typically ships in 25-30 business days
*
*
$3,181.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value

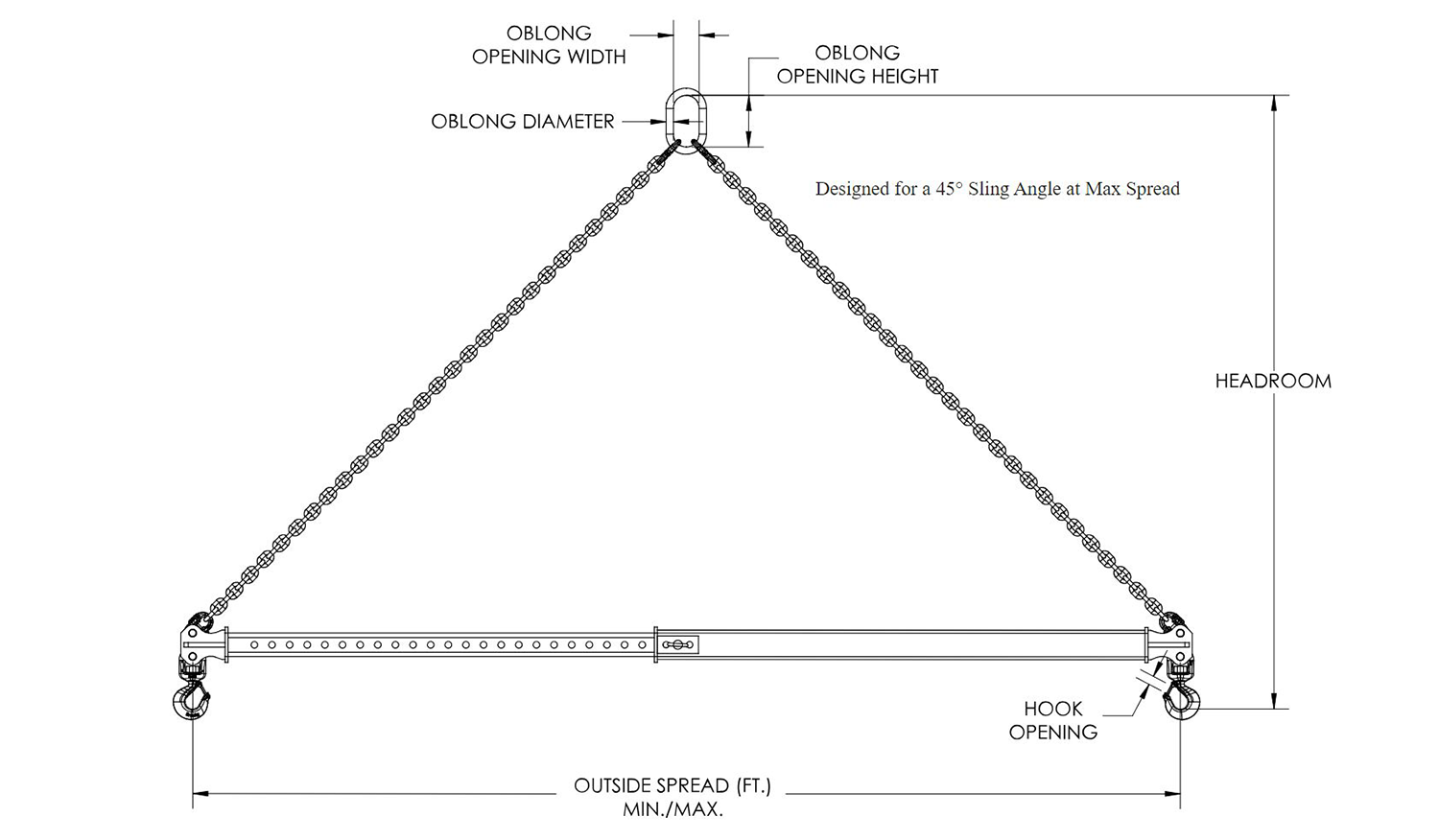

Features
  • Model Number: HATSBC-2-8/14
  • Capacity: 2 Ton / 1814.37 kg
  • Outside Spread
    • Max. Spread: 14 ft. / 4.27 m
    • Min. Spread: 8 ft. / 2.44 m
  • Headroom (Max at 45°)
    • Max. Headroom: 119 in. / 3022.6 mm
    • Min. Headroom: 101 in. / 2565.4 mm
  • Oblong Master Link Dimensions
    • Oblong ML Diameter: 0.63 in. / 16 mm
    • Oblong ML Diameter Width: 3 in. / 76.2 mm
    • Oblong ML Diameter Height: 6 in. / 152.4 mm
  • Hook Dimensions
    • Hook Opening: 0.91 in. / 23.11 mm
  • Beam & Hook Weight: 175 lbs. / 79.37 kg
  • Chain Rigging Weight: 35 lbs. / 15.87 kg
  • Upper rigging spread between the two lift points adds extra stability to the lift by lowering the center of gravity.
  • Telescopic design can accommodate various size loads.
  • Ideal where headroom is NOT limited.
  • Supplied with a pair of swivel hooks & pins and chain top rigging.
  • Options: Additional lengths, Higher capacities, Upper and lower shackle design, Wire rope top rigging.
Standards/Approvals
  • ASME B30.20 & ASME BTH-1 Design Category B Service Class 2
  • Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of OriginMade in the USA
