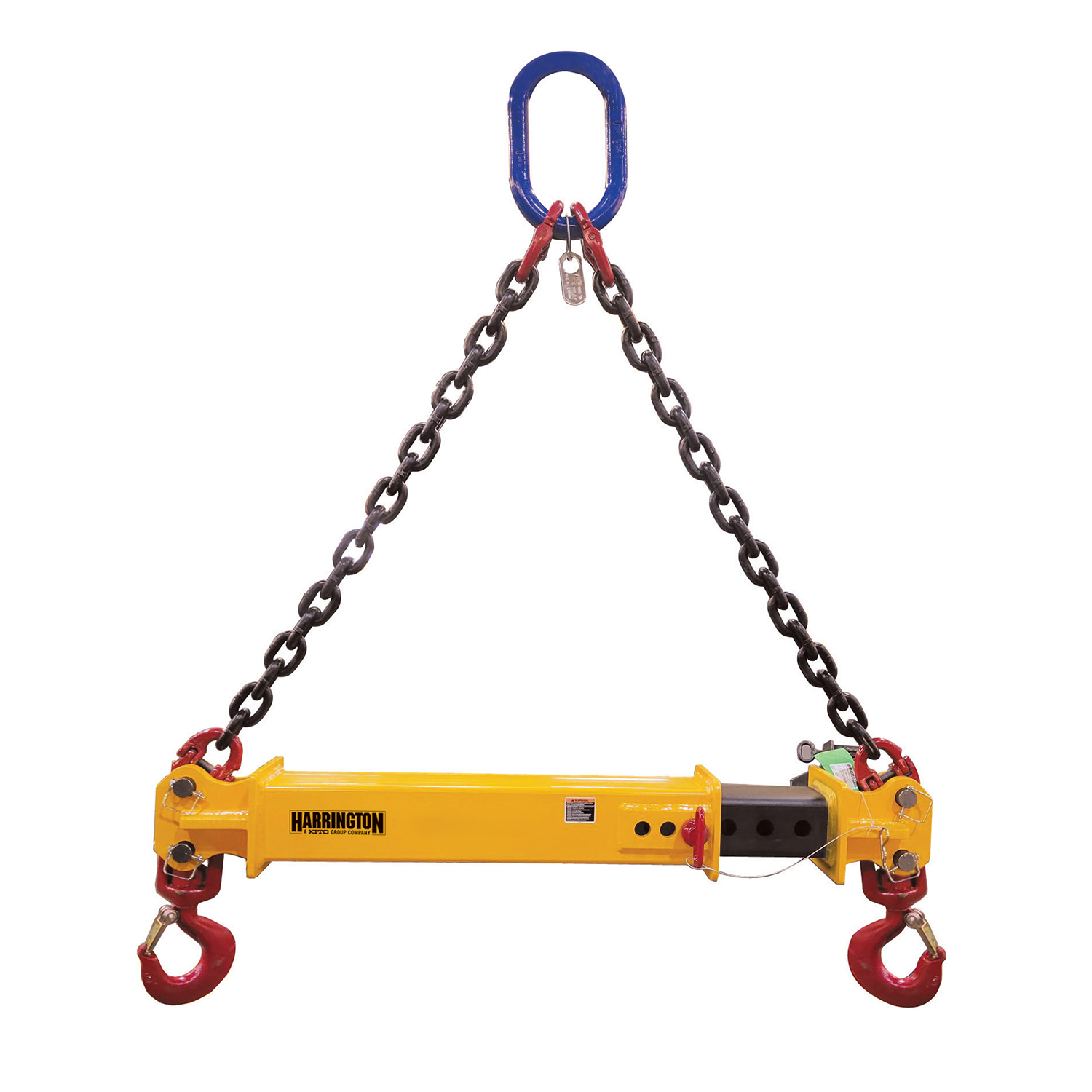

Harrington Adjustable Spreader Beam with Chain Top Rigging, 15 Ton Capacity, 20 Foot Max Spread, HATSBC-15-12/20

The Harrington HATSB Adjustable Spreader Beam is a versatile beam that can adapt to various load sizes thanks to its telescopic design. Plus, its upper rigging and heavy-duty swivel hooks guarantee secure lifting and enhanced stability, even in challenging outdoor environments.
Availability: In stock
SKU: HATSBC-15-12/20
Manufacturer part number: HATSBC-15-12/20
Lead Time (subject to change, call to verify): typically ships in 25-30 business days
*
*
$8,716.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Model Number: HATSBC-15-12/20
  • Capacity: 15 Ton / 13607.77 kg

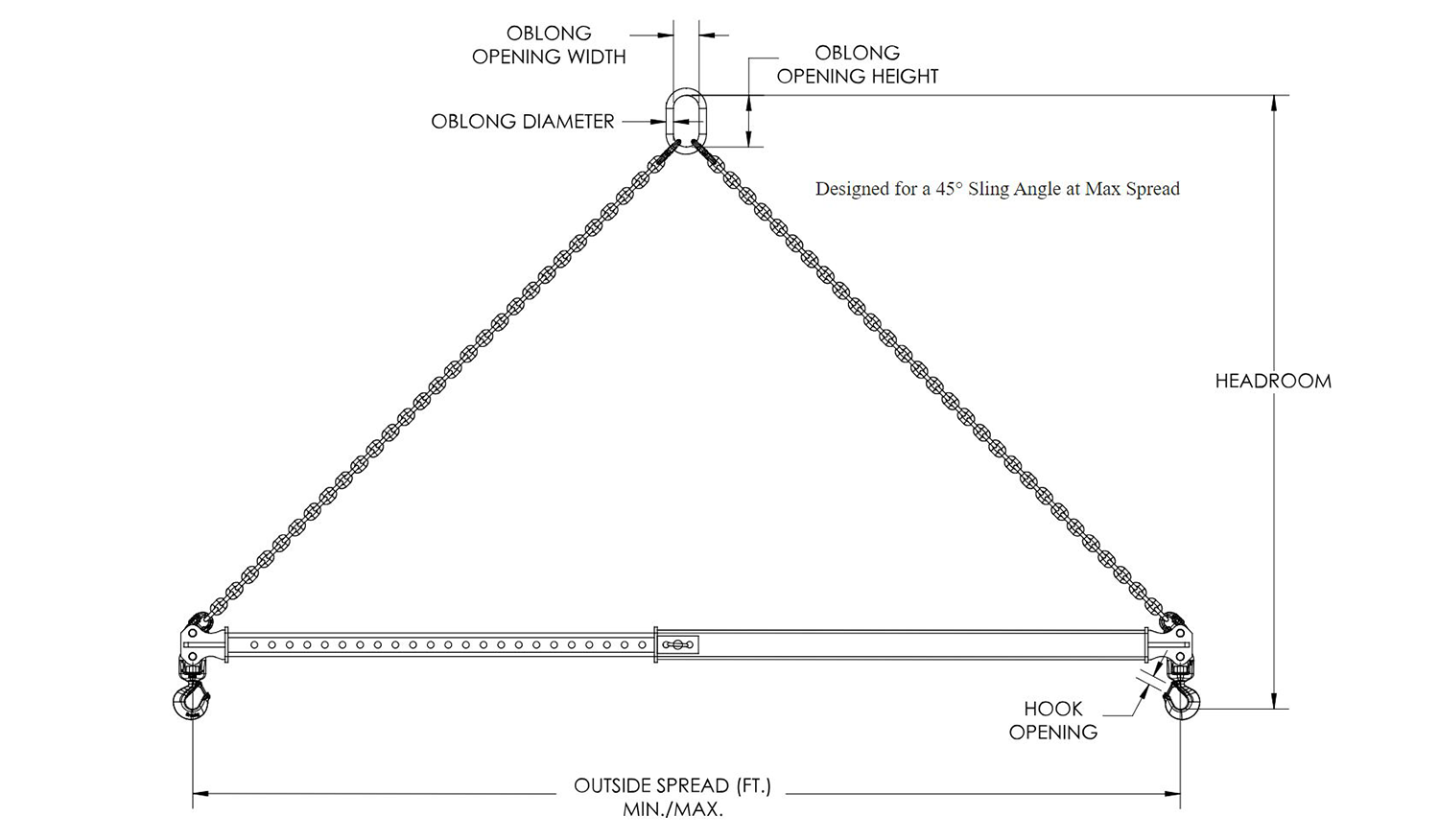

  • Outside Spread
    • Max. Spread: 20 ft. / 6.09 m
    • Min. Spread: 12 ft. / 3.66 m
  • Headroom (Max at 45°)
    • Max. Headroom: 189 in. / 4800.6 mm
    • Min. Headroom: 154 in. / 3911.6 mm
  • Oblong Master Link Dimensions
    • Oblong ML Diameter: 1.5 in. / 38.1 mm
    • Oblong ML Diameter Width: 5.25 in. / 133.35 mm
    • Oblong ML Diameter Height: 10.5 in. / 266.7 mm
  • Hook Dimensions
    • Hook Opening: 2.08 in. / 52.83 mm
  • Beam & Hook Weight: 700 lbs. / 317.51 kg
  • Chain Rigging Weight: 194 lbs. / 87.99 kg
  • Upper rigging spread between the two lift points adds extra stability to the lift by lowering the center of gravity.
  • Telescopic design can accommodate various size loads.
  • Ideal where headroom is NOT limited.
  • Supplied with a pair of swivel hooks & pins and chain top rigging.
  • Options: Additional lengths, Higher capacities, Upper and lower shackle design, Wire rope top rigging.
Standards/Approvals
  • ASME B30.20 & ASME BTH-1 Design Category B Service Class 2
  • Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of OriginMade in the USA
