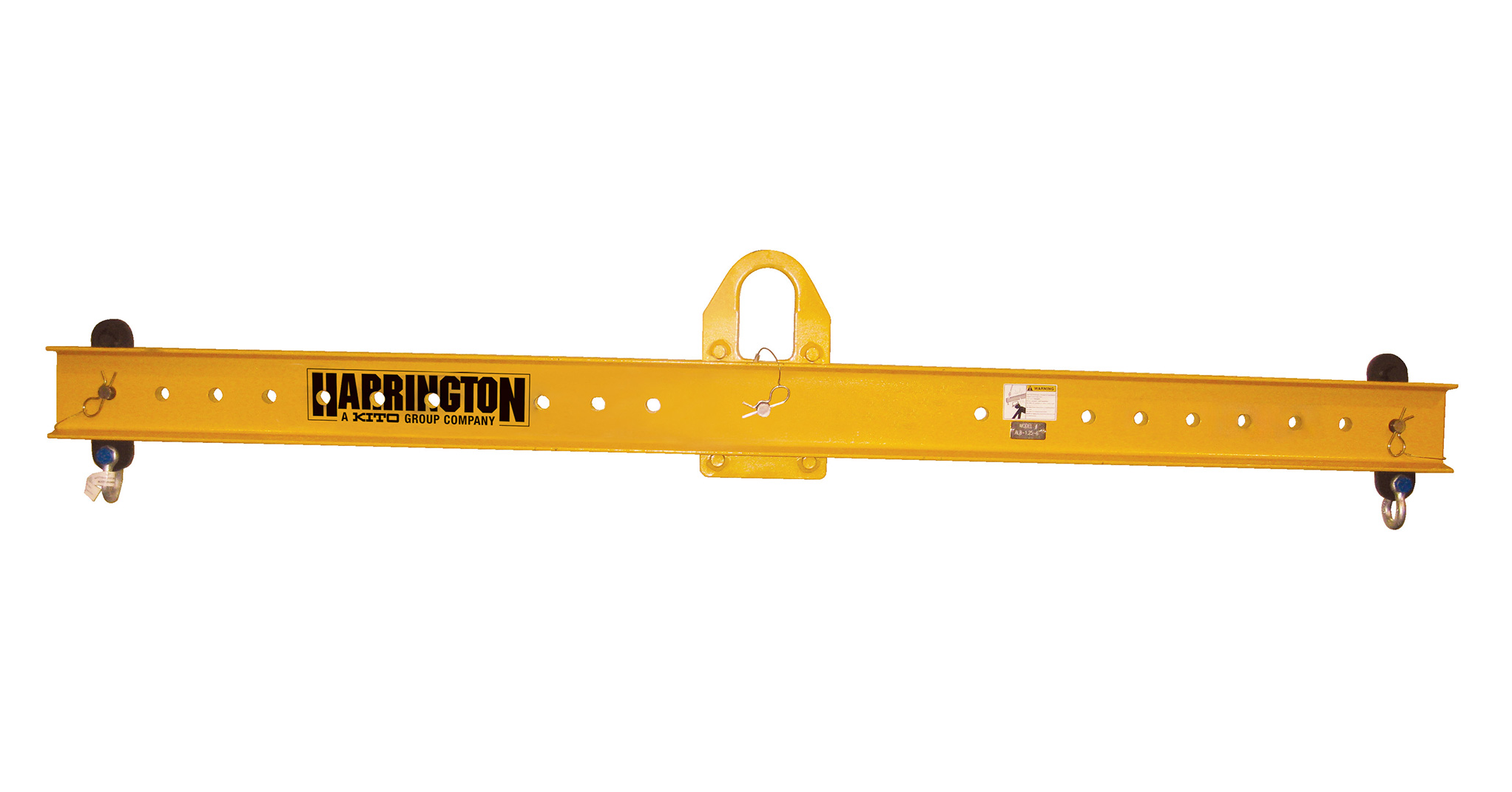

Harrington Adjustable Lifting Beam, 5 Ton Capacity, 10 Foot Spread, HALB-5-10

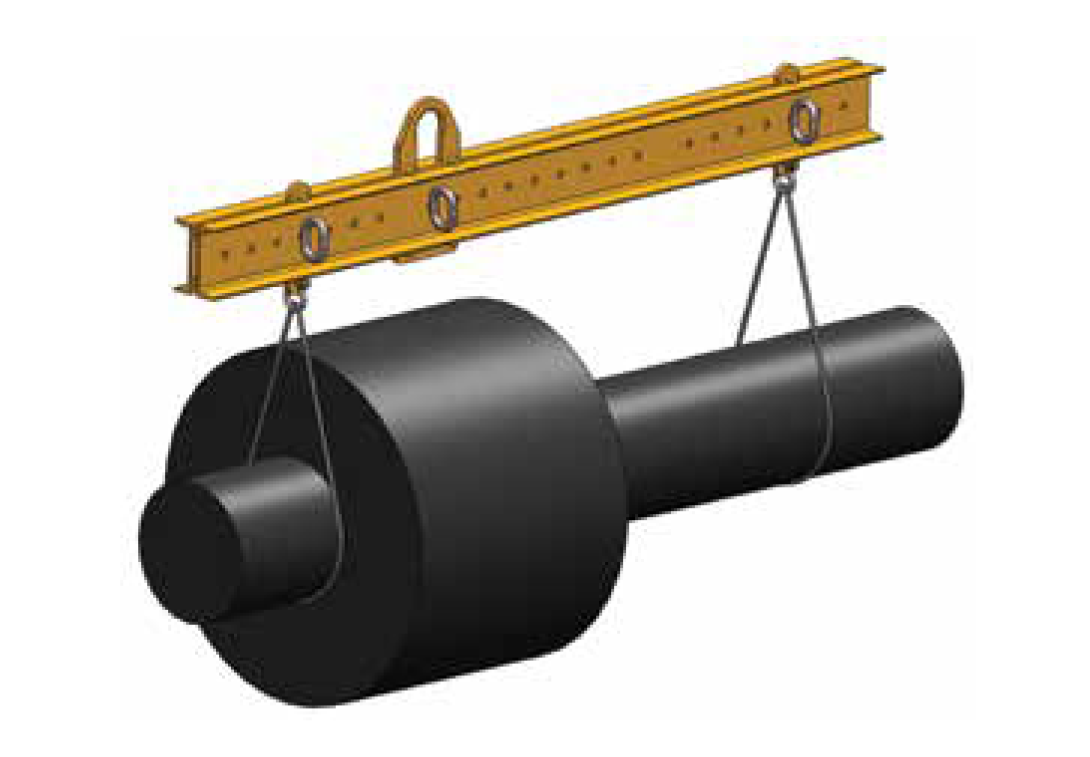

The HALB Adjustable Lifting Beam is designed to lift loads off-center effortlessly. It features a bail that can be adjusted along the beam and multiple spreads to accommodate various load sizes.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HALB-5-10

Manufacturer part number: HALB-5-10

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Spread *

10 ft. / 3.05 m (max)
5 ft. / 1.52 m (min)

Includes *

Two lower shackles

Options (Call for Quote - 314-869-7200)

Swivel hooks

$3,533.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

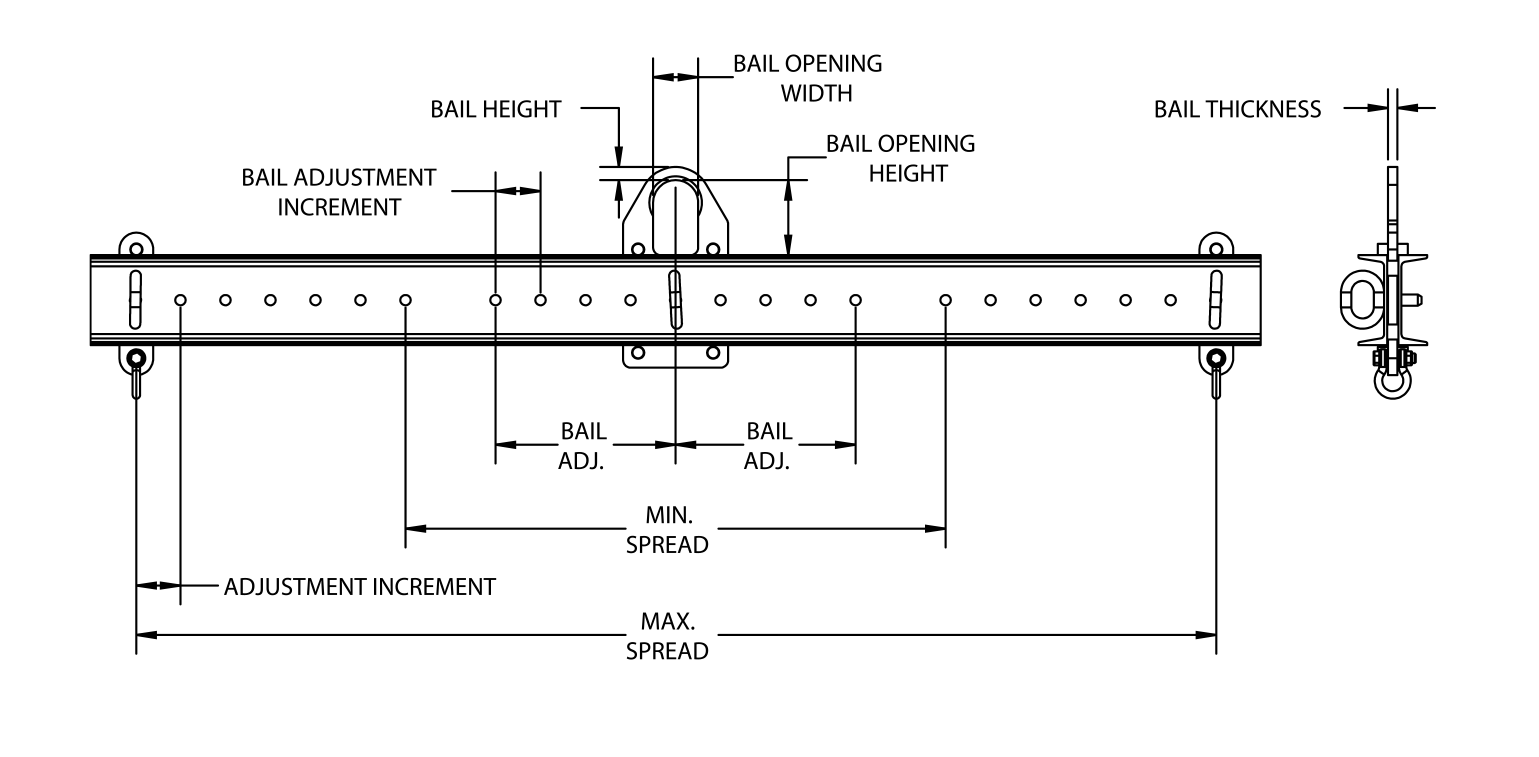

Features	Model Number: HALB-5-10 Capacity: 5 Ton / 4535.92 kg Shackle Capacity: 4.75 Ton / 4309.13 kg Max. Spread: 10 ft. / 3.05 m Min. Spread: 5 ft. / 1.52 m Headroom: 22 in. / 558.8 mm Bail Dimensions Bail Height: 1.5 in. / 38.1 mm Bail Opening Width: 4 in. / 101.6 mm Bail Opening Height: 7 in. / 177.8 mm Bail Thickness: 1 in. / 25.4 mm Bail Adjustment Increments: 6 in. / 152.4 mm Bail Travel (Half of Center): 18 in. / 457.2 mm Weight: 440 lbs. / 199.58 kg Can lift off-center loads easily by adjusting the bail prior to the lift. Features multiple adjustable spreads to accommodate various load sizes. (6 in. adjustable increments) Supplied with a pair of lower shackles. Options: Swivel hooks.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
