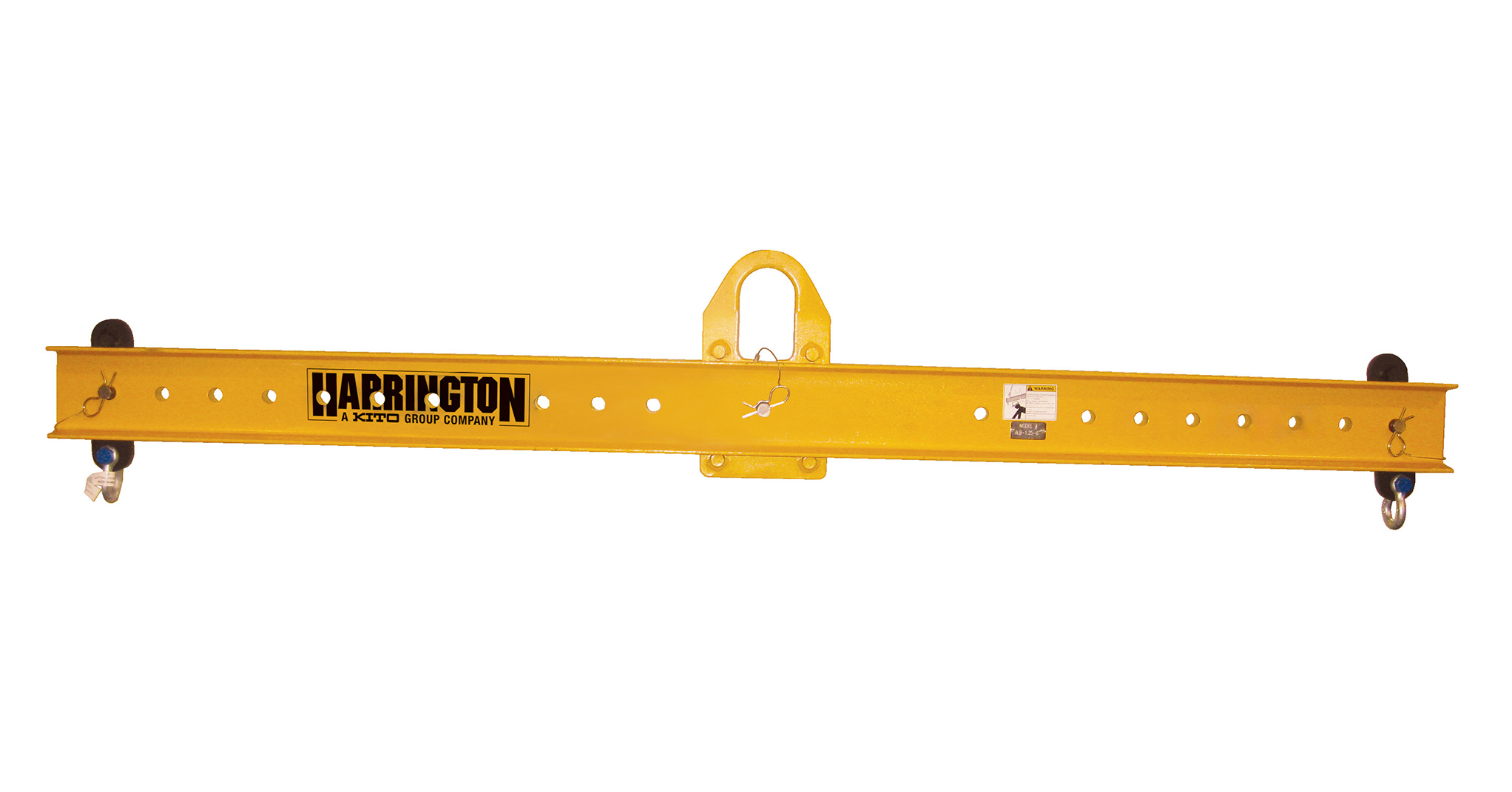

Harrington Adjustable Lifting Beam, 4 Ton Capacity, 8 Foot Spread, HALB-4-8

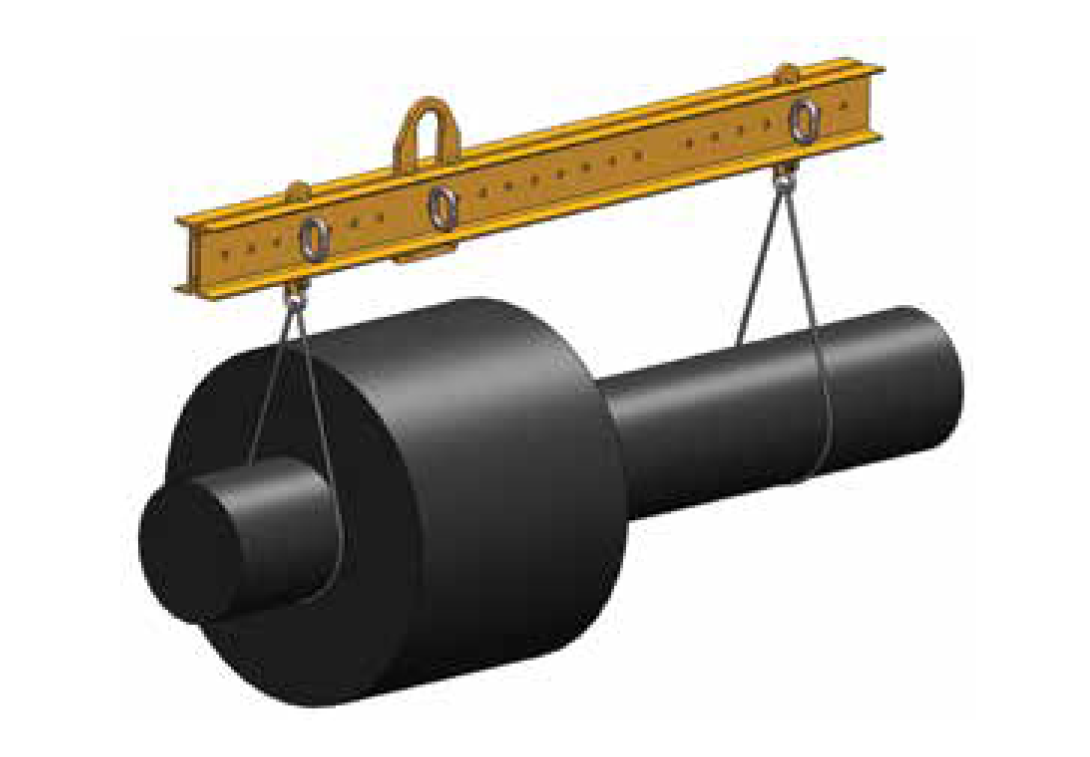

The HALB Adjustable Lifting Beam is designed to lift loads off-center effortlessly. It features a bail that can be adjusted along the beam and multiple spreads to accommodate various load sizes.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HALB-4-8

Manufacturer part number: HALB-4-8

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Spread *

8 ft. / 2.44 m (max)
4.5 ft. / 1.37 m (min)

Includes *

Two lower shackles

Options (Call for Quote - 314-869-7200)

Swivel hooks

$2,641.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

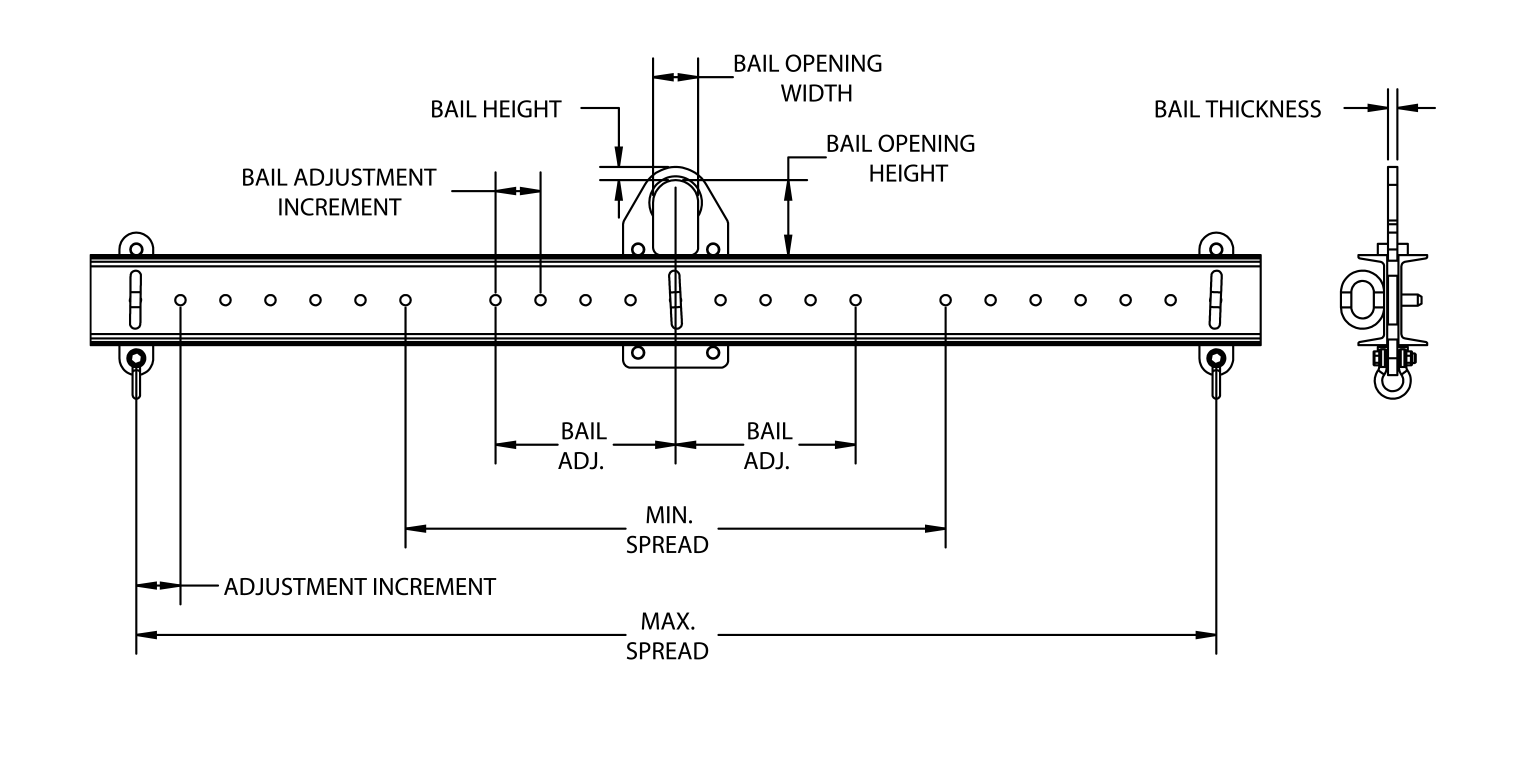

Features	Model Number: HALB-4-8 Capacity: 4 Ton / 3628.74 kg Shackle Capacity: 3.25 Ton / 2948.35 kg Max. Spread: 8 ft. / 2.44 m Min. Spread: 4.5 ft. / 1.37 m Headroom: 20 in. / 508 mm Bail Dimensions Bail Height: 1.5 in. / 38.1 mm Bail Opening Width: 4 in. / 101.6 mm Bail Opening Height: 7 in. / 177.8 mm Bail Thickness: 0.75 in. / 19.05 mm Bail Adjustment Increments: 6 in. / 152.4 mm Bail Travel (Half of Center): 18 in. / 457.2 mm Weight: 315 lbs. / 142.88 kg Can lift off-center loads easily by adjusting the bail prior to the lift. Features multiple adjustable spreads to accommodate various load sizes. (6 in. adjustable increments) Supplied with a pair of lower shackles. Options: Swivel hooks.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
