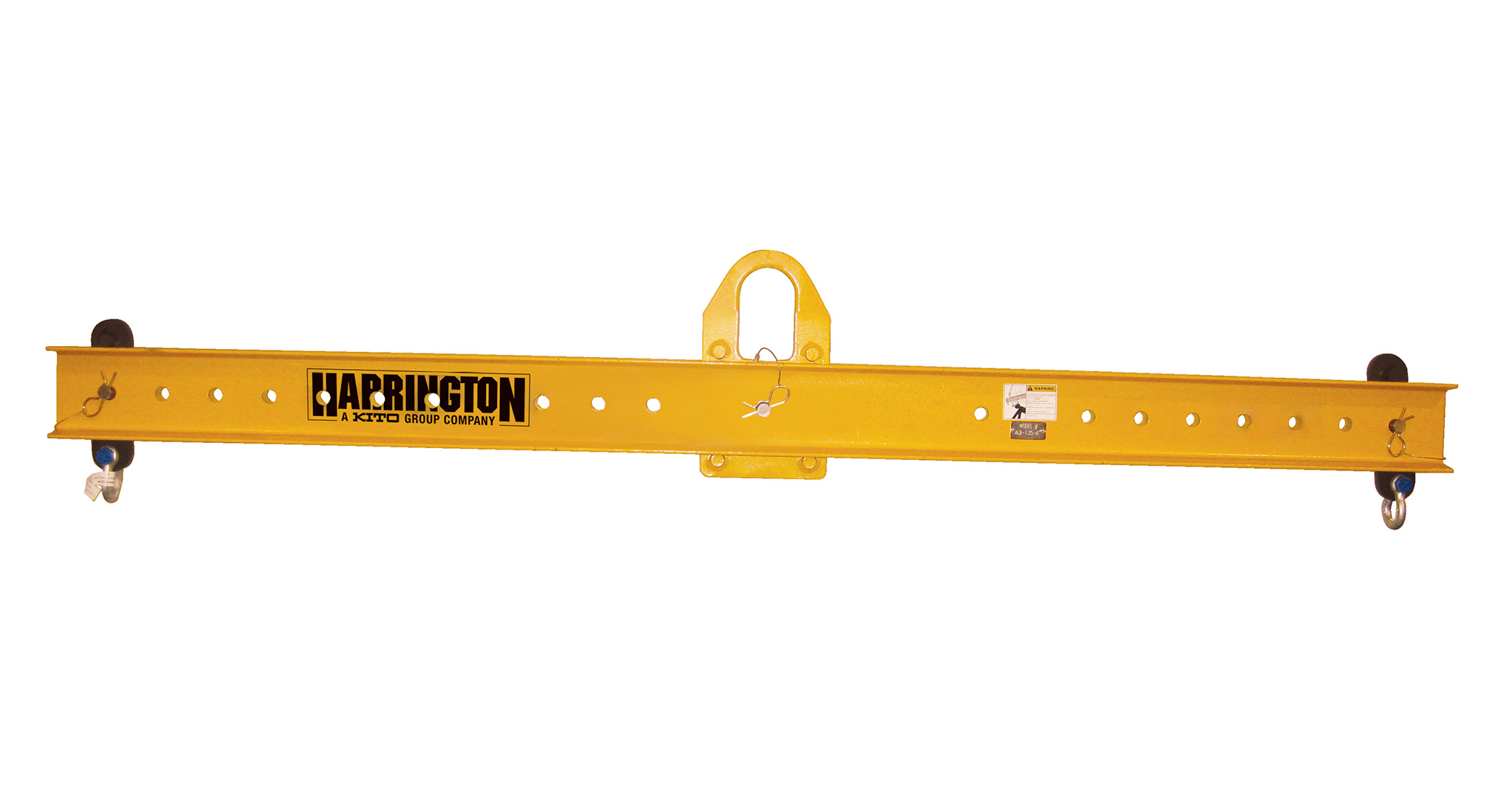

Harrington Adjustable Lifting Beam, 2 Ton Capacity, 6 Foot Spread, HALB-2-6

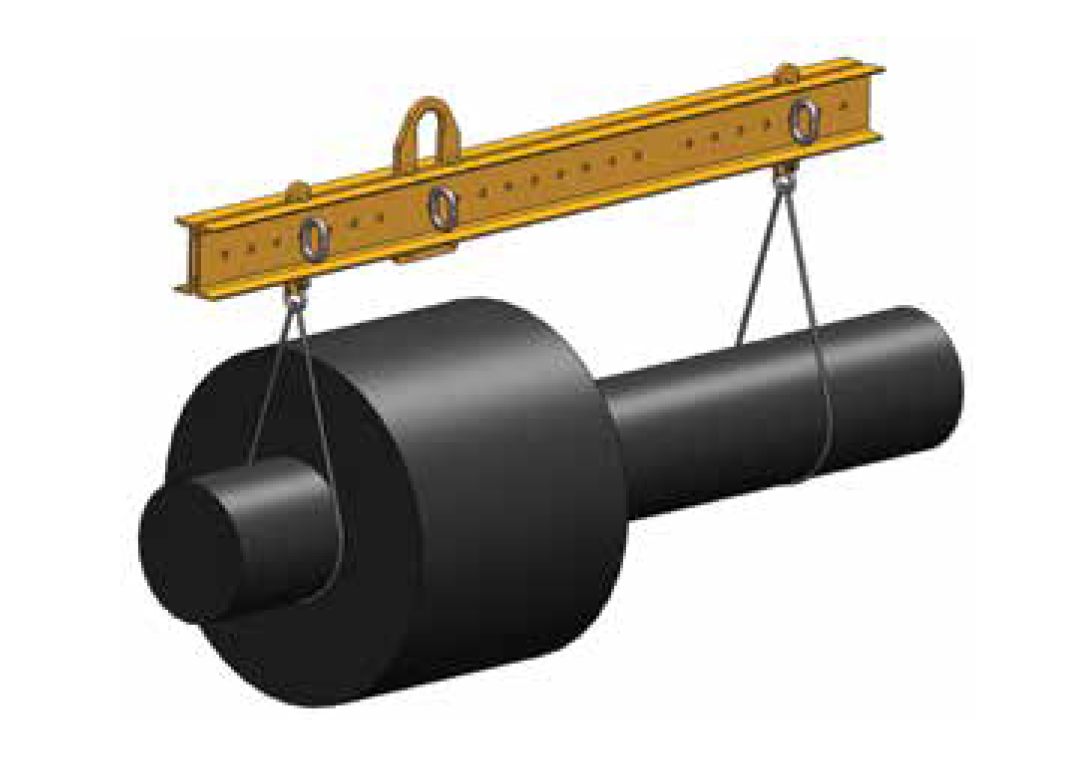

The HALB Adjustable Lifting Beam is designed to lift loads off-center effortlessly. It features a bail that can be adjusted along the beam and multiple spreads to accommodate various load sizes.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HALB-2-6

Manufacturer part number: HALB-2-6

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Spread *

6 ft. / 1.83 m (max)
3 ft. / 0.91 m (min)

Includes *

Two lower shackles

Options (Call for Quote - 314-869-7200)

Swivel hooks

$2,530.23

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting and Spreader Beams Brochure

Product Specifications

Attribute name	Attribute value

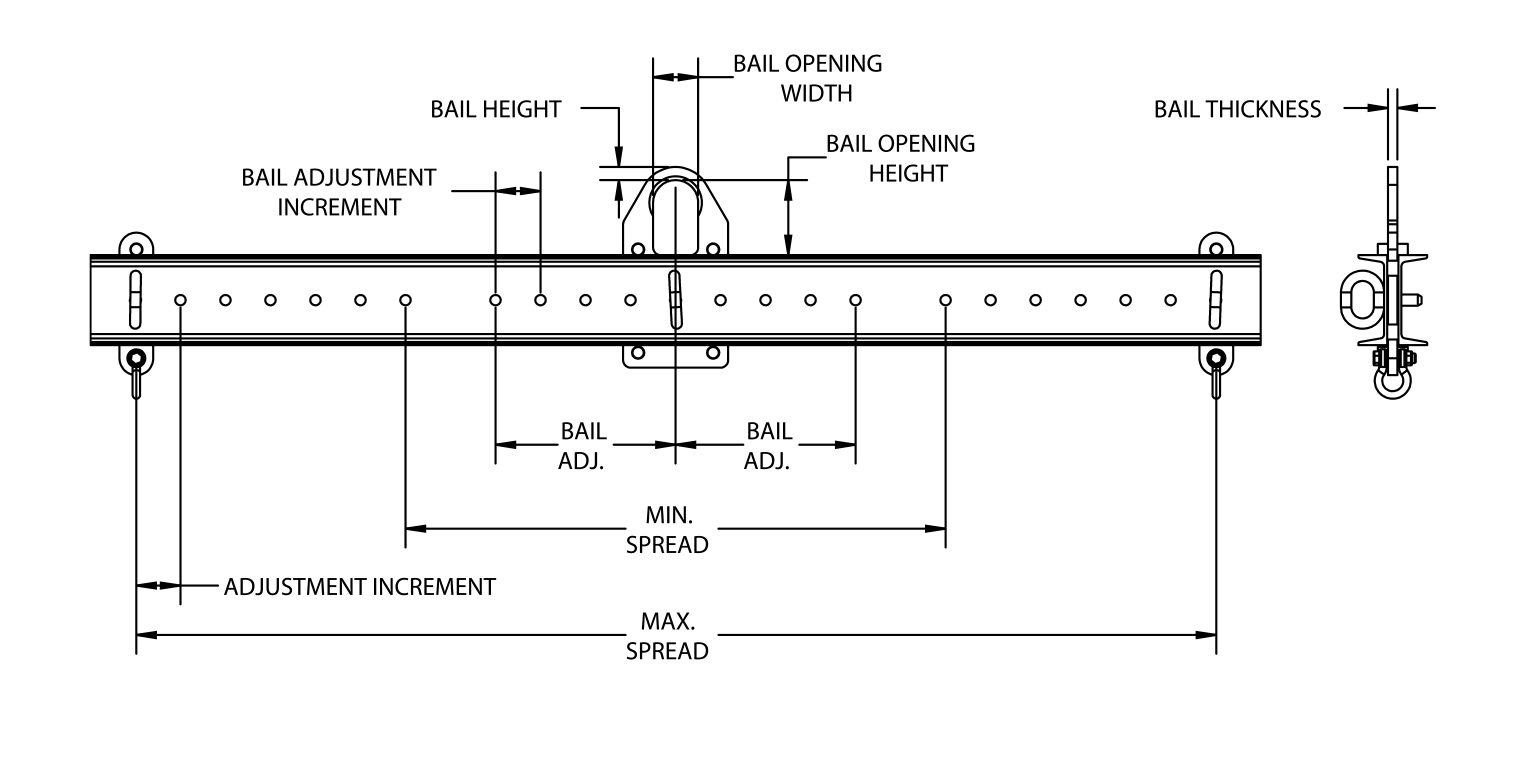

Features	Model Number: HALB-2-6 Capacity: 2 Ton / 1814.37 kg Shackle Capacity: 2 Ton / 1814.37 kg Max. Spread: 6 ft. / 1.83 m Min. Spread: 3 ft. / 0.91 m Headroom: 14.5 in. / 368.3 mm Bail Dimensions Bail Height: 1 in. / 25.4 mm Bail Opening Width: 3 in. / 76.2 mm Bail Opening Height: 5 in. / 127 mm Bail Thickness: 0.63 in. / 16 mm Bail Adjustment Increments: 3 in. / 76.2 mm Bail Travel (Half of Center): 12 in. / 304.8 mm Weight: 140 lbs. / 63.5 kg Can lift off-center loads easily by adjusting the bail prior to the lift. Features multiple adjustable spreads to accommodate various load sizes. (6 in. adjustable increments) Supplied with a pair of lower shackles. Options: Swivel hooks.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
