Harrington Adjustable Bar Tongs, 1 Ton Capacity, 7 in. Max Width, HBTA-1-4/7

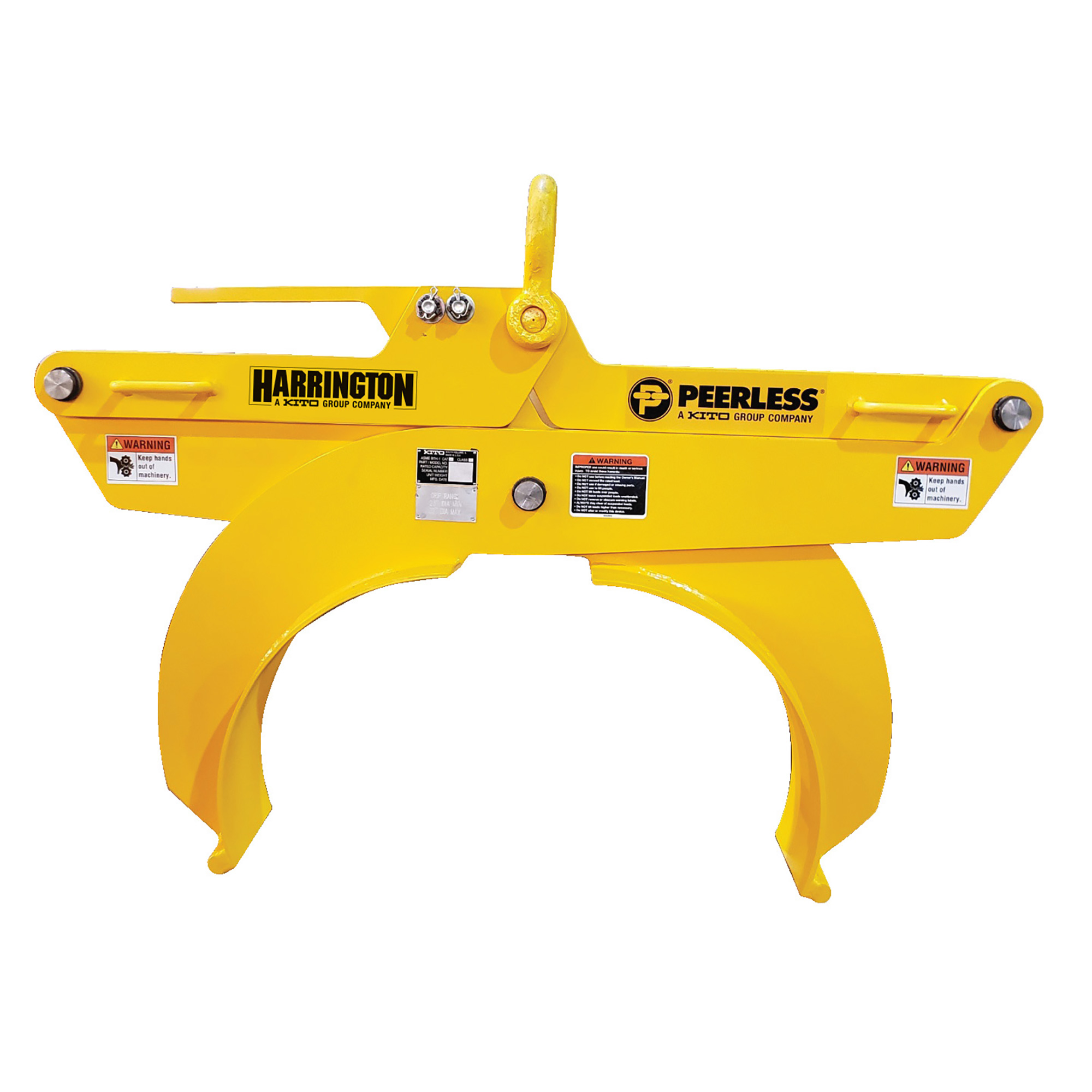

The Harrington HBTA Adjustable Lifting Tongs can easily lift round bars, cast, or steel pipe of various diameters. They can be used in pairs attached to a lifting or spreaded beam to handle longer loads.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HBTA-1-4/7

Manufacturer part number: HBTA-1-4/7

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

Max. Width *

7 in. / 177.80 mm

Includes *

Hold-open latch (1-ton standard tongs only)

Options (Call for Quote - 314-869-7200)

Higher capacities
Replaceable urethane pads
Hold-open latch

$1,954.34

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting Tongs Brochure

Product Specifications

Attribute name	Attribute value

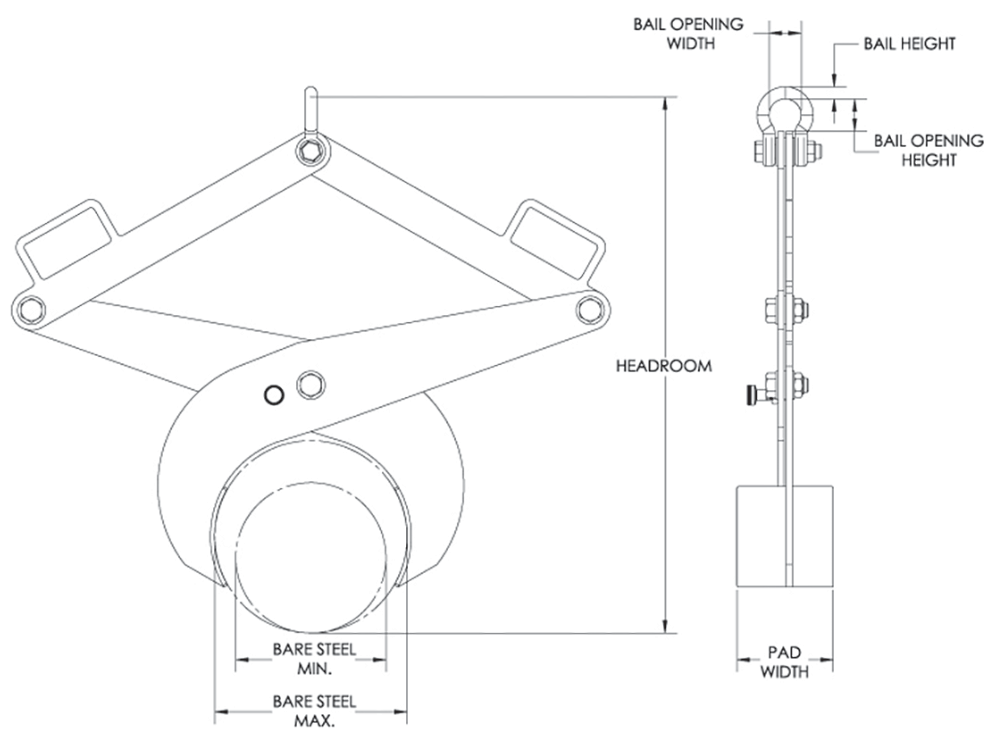

Features	Model Number: HBTA-1-4/7 Capacity: 1 Ton / 907.18 kg Bare Steel Range Minimum: 4 in. / 101.6 mm Maximum: 7 in. / 177.8 mm Urethane Pad Range Minimum: 3.25 in. / 82.55 mm Maximum: 6.25 in. / 158.75 mm Pad Width: 5 in. / 127 mm Headroom Minimum: 21 in. / 533.4 mm Maximum: 24 in. / 609.6 mm Bail Dimensions Bail Height: 0.63 in. / 16.0 mm Bail Opening Width: 1.69 in. / 42.92 mm Bail Opening Height: 1.69 in. / 42.92 mm Weight: 25 lbs. / 11.34 kg Ideal for lifting round bars, cast or steel pipe of various diameters. Can be used in pairs attached to a lifting/spreader beam to handle longer loads. Can be supplied with optional replaceable urethane pads for additional load protection. Hold-open latch supplied on all 1-ton standard tongs. The load must be balanced during the lift. Options: Higher capacities, Replaceable urethane pads, Hold-open latch.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
