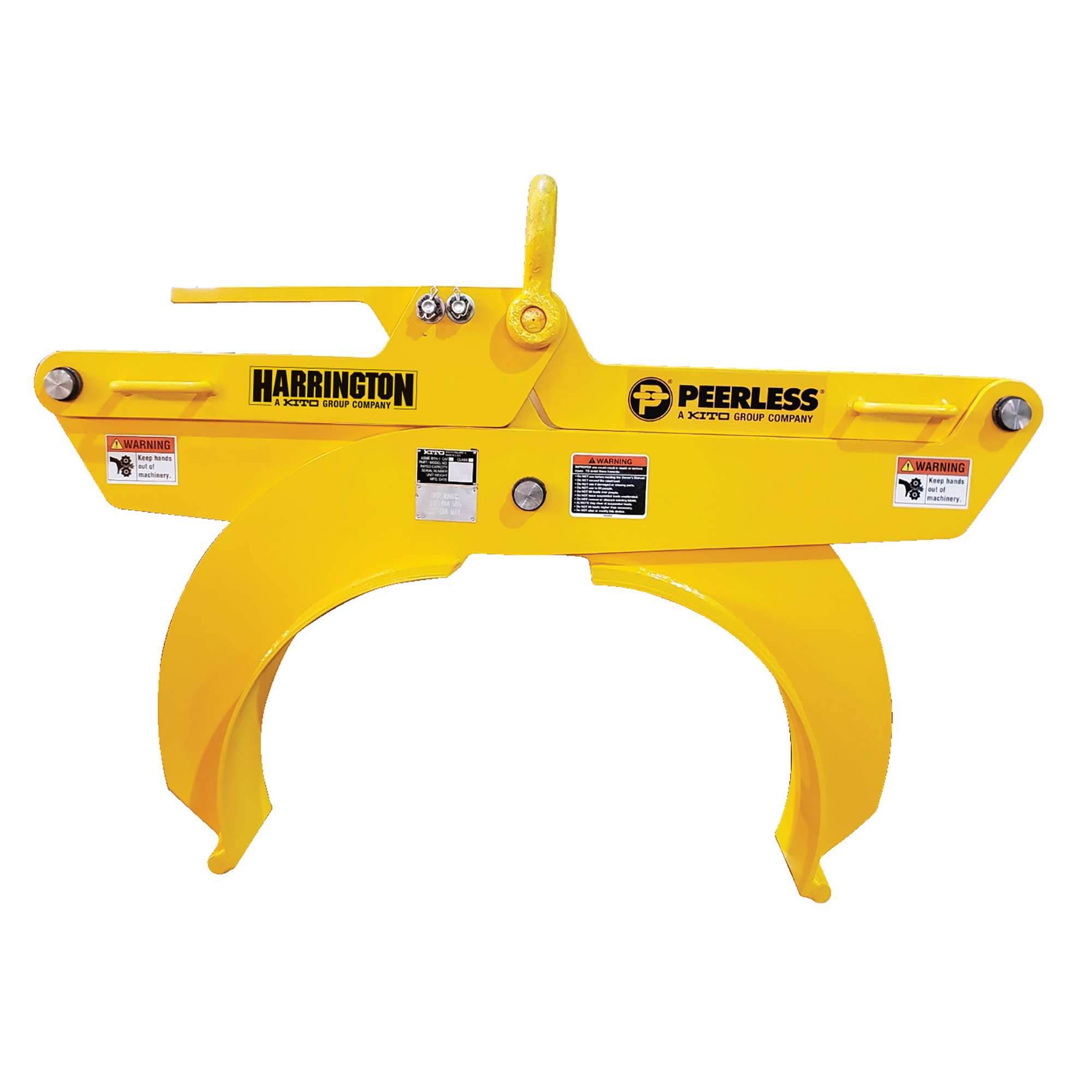

Harrington Adjustable Bar Tongs, 1 Ton Capacity, 20 in. Max Width, HBTA-1-15/20

The Harrington HBTA Adjustable Lifting Tongs can easily lift round bars, cast, or steel pipe of various diameters. They can be used in pairs attached to a lifting or spreaded beam to handle longer loads.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HBTA-1-15/20

Manufacturer part number: HBTA-1-15/20

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Max. Width *

20 in. / 508.0 mm

Includes *

Hold-open latch (1-ton standard tongs only)

Options (Call for Quote - 314-869-7200)

Higher capacities
Replaceable urethane pads
Hold-open latch

$5,707.00

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting Tongs Brochure

Product Specifications

Attribute name	Attribute value

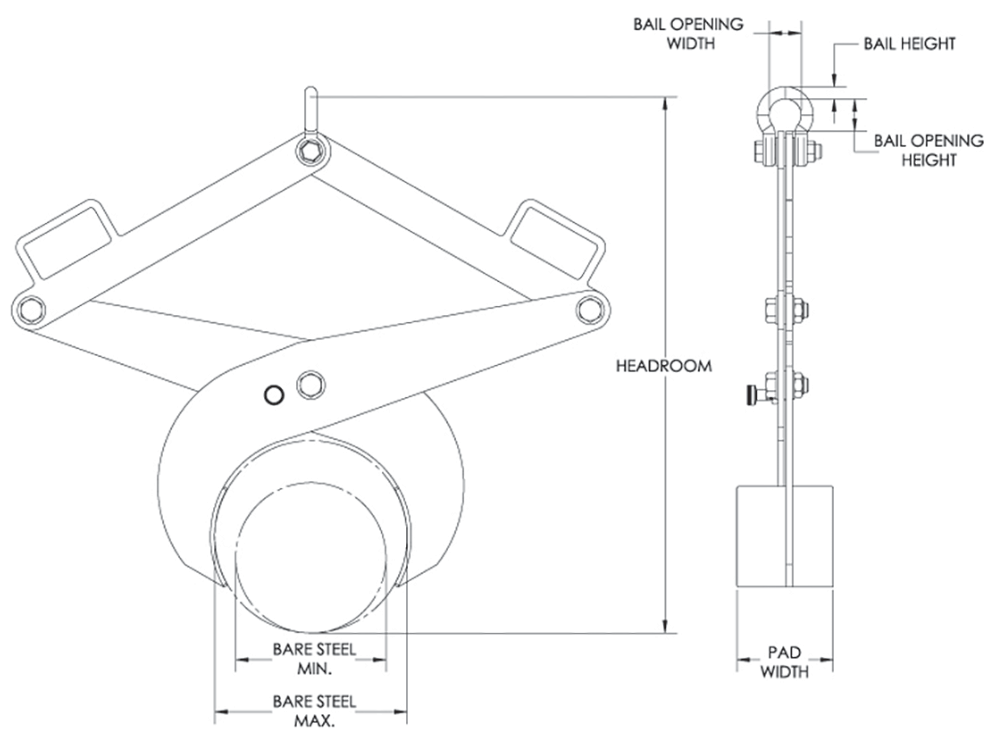

Features	Model Number: HBTA-1-15/20 Capacity: 1 Ton / 907.18 kg Bare Steel Range Minimum: 15 in. / 381.0 mm Maximum: 20 in. / 508.0 mm Urethane Pad Range Minimum: 14.25 in. / 361.95 mm Maximum: 19.25 in. / 488.95 mm Pad Width: 8 in. / 203 mm Headroom Minimum: 31 in. / 787.4 mm Maximum: 42 in. / 1066.8 mm Bail Dimensions Bail Height: 0.75 in. / 19.05 mm Bail Opening Width: 2.25 in. / 57.15 mm Bail Opening Height: 3.25 in. / 82.55 mm Weight: 210 lbs. / 95.25 kg Ideal for lifting round bars, cast or steel pipe of various diameters. Can be used in pairs attached to a lifting/spreader beam to handle longer loads. Can be supplied with optional replaceable urethane pads for additional load protection. Hold-open latch supplied on all 1-ton standard tongs. The load must be balanced during the lift. Options: Higher capacities, Replaceable urethane pads, Hold-open latch.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
