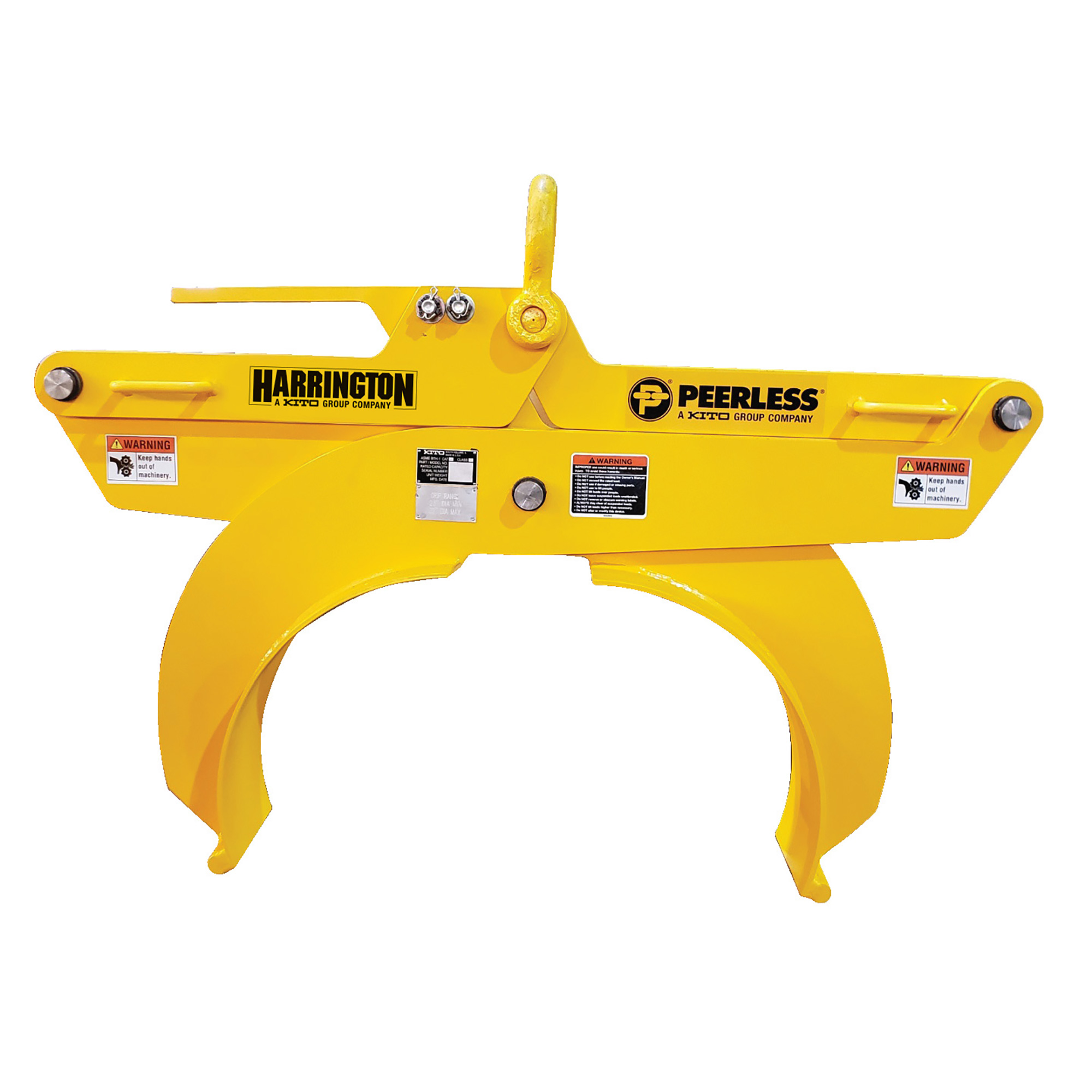

Harrington Adjustable Bar Tongs, 1 Ton Capacity, 12 in. Max Width, HBTA-1-7/12

The Harrington HBTA Adjustable Lifting Tongs can easily lift round bars, cast, or steel pipe of various diameters. They can be used in pairs attached to a lifting or spreaded beam to handle longer loads.

Manufacturer: Harrington Hoists and Cranes

Availability: In stock

SKU: HBTA-1-7/12

Manufacturer part number: HBTA-1-7/12

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

Max. Width *

12 in. / 304.80 mm

Includes *

Hold-open latch (1-ton standard tongs only)

Options (Call for Quote - 314-869-7200)

Higher capacities
Replaceable urethane pads
Hold-open latch

$2,052.81

Qty:

Documents, Drawings, and Manuals

Brochure

Harrington Lifting Tongs Brochure

Product Specifications

Attribute name	Attribute value

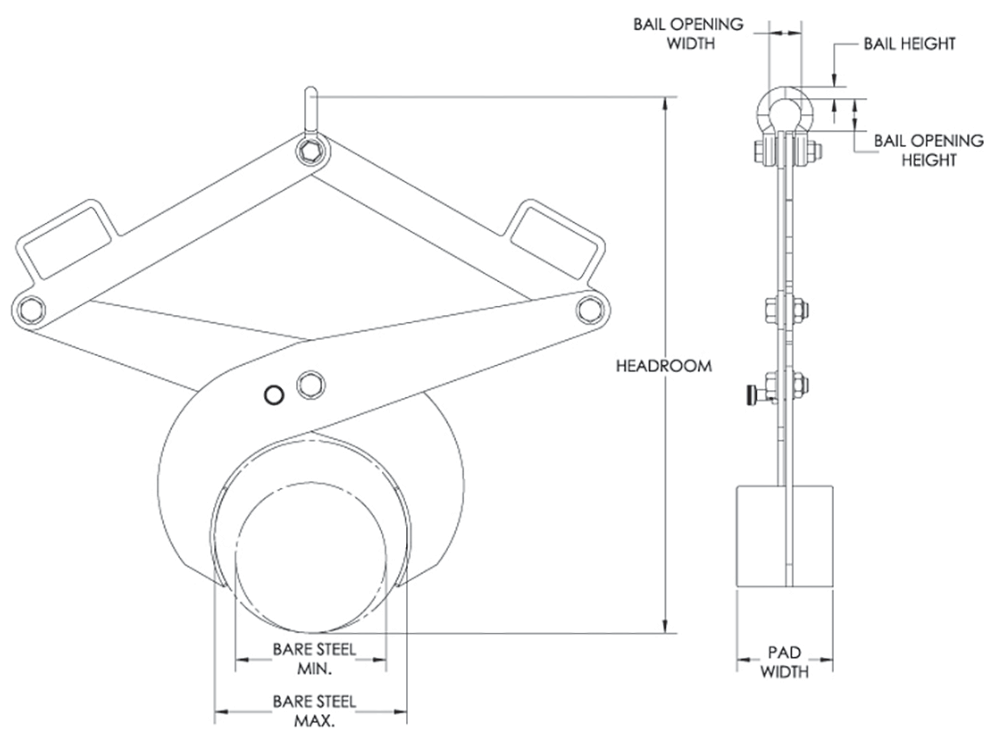

Features	Model Number: HBTA-1-7/12 Capacity: 1 Ton / 907.18 kg Bare Steel Range Minimum: 7 in. / 177.8 mm Maximum: 12 in. / 304.8 mm Urethane Pad Range Minimum: 6.25 in. / 158.75 mm Maximum: 11.25 in. / 285.75 mm Pad Width: 6 in. / 152 mm Headroom Minimum: 34 in. / 863.6 mm Maximum: 38 in. / 965.2 mm Bail Dimensions Bail Height: 0.75 in. / 19.05 mm Bail Opening Width: 2 in. / 50.8 mm Bail Opening Height: 2 in. / 50.80 mm Weight: 55 lbs. / 24.95 kg Ideal for lifting round bars, cast or steel pipe of various diameters. Can be used in pairs attached to a lifting/spreader beam to handle longer loads. Can be supplied with optional replaceable urethane pads for additional load protection. Hold-open latch supplied on all 1-ton standard tongs. The load must be balanced during the lift. Options: Higher capacities, Replaceable urethane pads, Hold-open latch.
Standards/Approvals	ASME B30.20 & ASME BTH-1 Design Category B Service Class 2 Proof-tested to 125% capacity. (Certificates supplied at no additional charge)
Country of Origin	Made in the USA
